XTnano
–
Version 10.04
–
Operating Manual
EVS Broadcast Equipment SA – January 2011
Issue
10.04.A
7
S
HIF
T
Enables use of the secondary key functions.
Note: This key remains active even if released, until another key
has been hit.
F1 F1 0
-
Stores or recalls clips, recall playlists and enter timecode
information.
C
LEA
R
Is a multi-purpose key used to clear clips or playlists, and to clear
IN/OUT points.
EN TE
R
Is used to append clips at the end of the current playlist, and to
validate other options and messages.

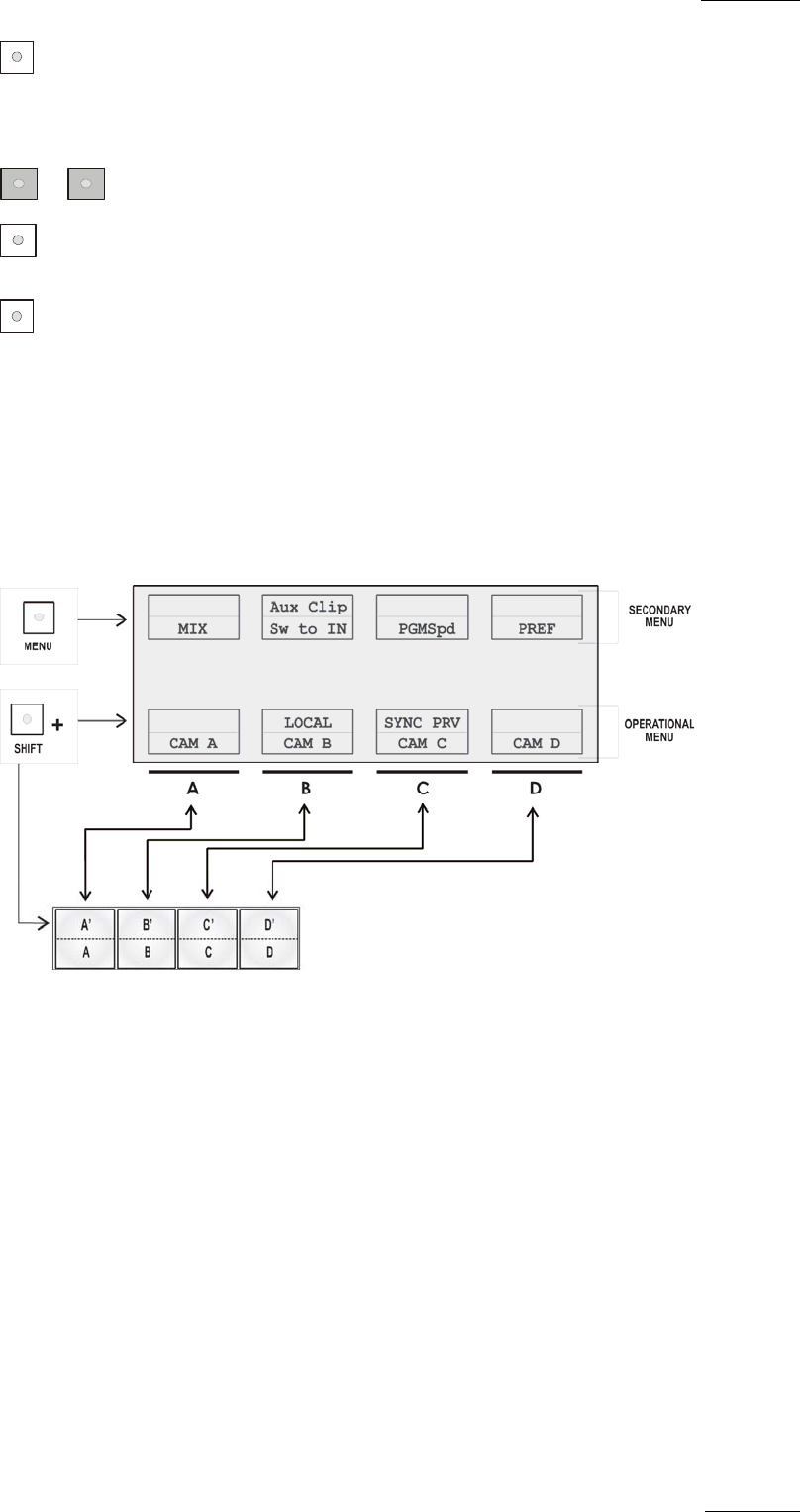

2.4 SOFT KEYS
The soft keys have PRIMARY and SECONDARY functions and are divided into
upper and lower sections.
The LCD display is divided in two menus.
• To access the secondary functions in the operational menu (A’ to D’), press the
SHIFT button.
• To access the secondary menu, press MENU from the remote controller. The
secondary menu is used to define settings that do not require regular changes,
without having to return to the Setup menu.
• To return to the operational menu, press the MENU key again.
• To return to the Main menu in Multicam, press SHIFT + MENU.
