1. Initial Configuration
1.1 APPLICATION SELECTION

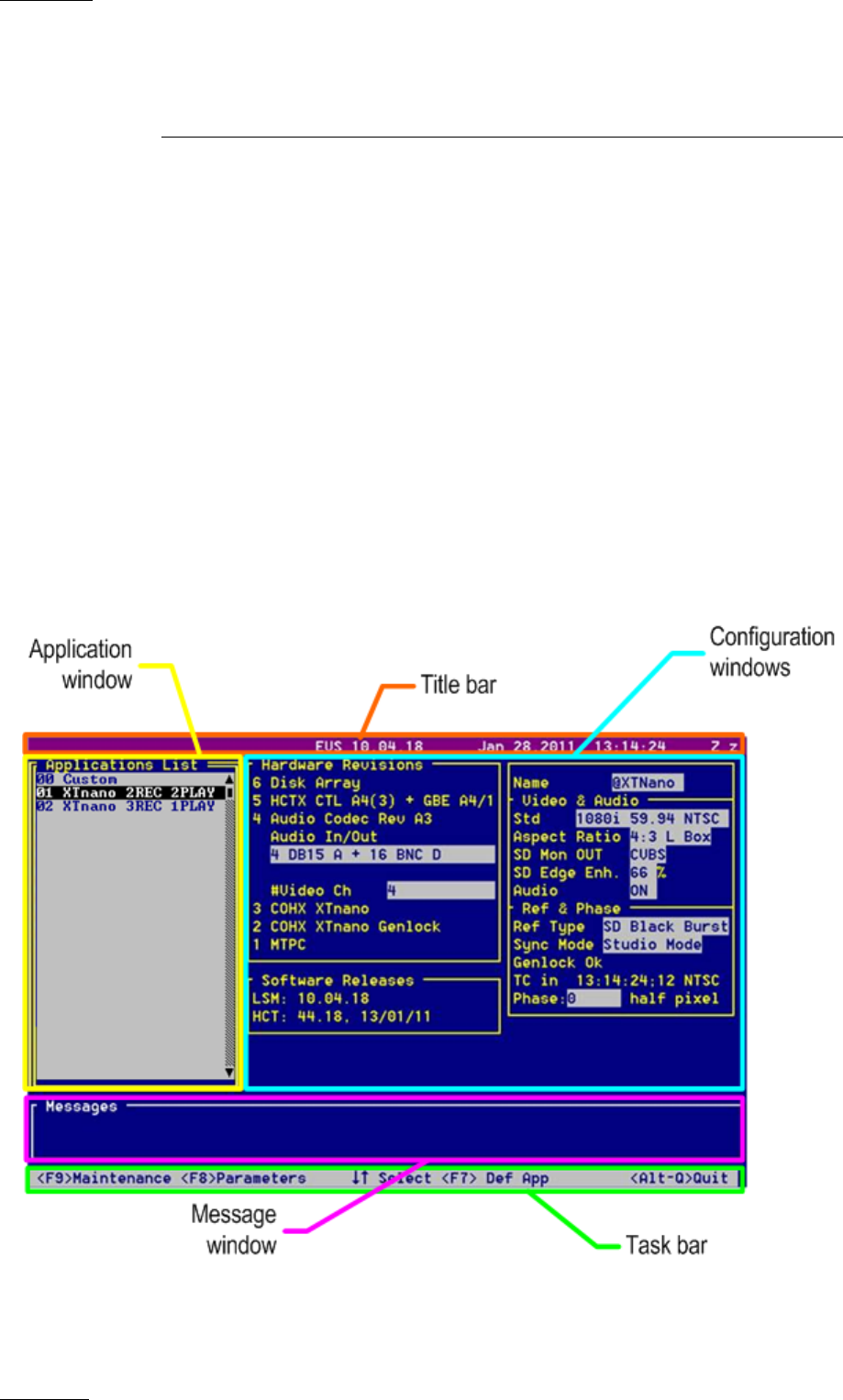

The EVS software is used for configuration and maintenance operations. It is also
used to select which application configuration to run, since EVS disk recorders
have the ability to run various configurations (Sportlight 2REC 2PLAY, Sportlight
3REC 1PLAY). In the associated AVCFG module, you can also specify the channel
configuration you want to use and several audio and video parameters.
When turning on the EVS mainframe, the first step is the PC boot sequence, then
the EVS software is started:
• If a default application has been previously selected, this application will start
automatically after a few seconds if no key is hit.
• If a default application hasn't been defined or if the space bar is hit, the system
will remain in the EVS main menu and wait for the operator's next command.
You will find complete information about regarding the EVS Menu in the XTnano
Tech Ref Software manual.
