Field Description
clips are not taken into account).
Ex: 98 clips
Dur: --:--:--:-- Total playback duration with available clips.
Ex: 00:04:34:12
Aux Clip Aux Clip ID and name of the audio auxiliary clip.
11.3.2 VGA PLAYLIST SCREEN
INTRODUCTION

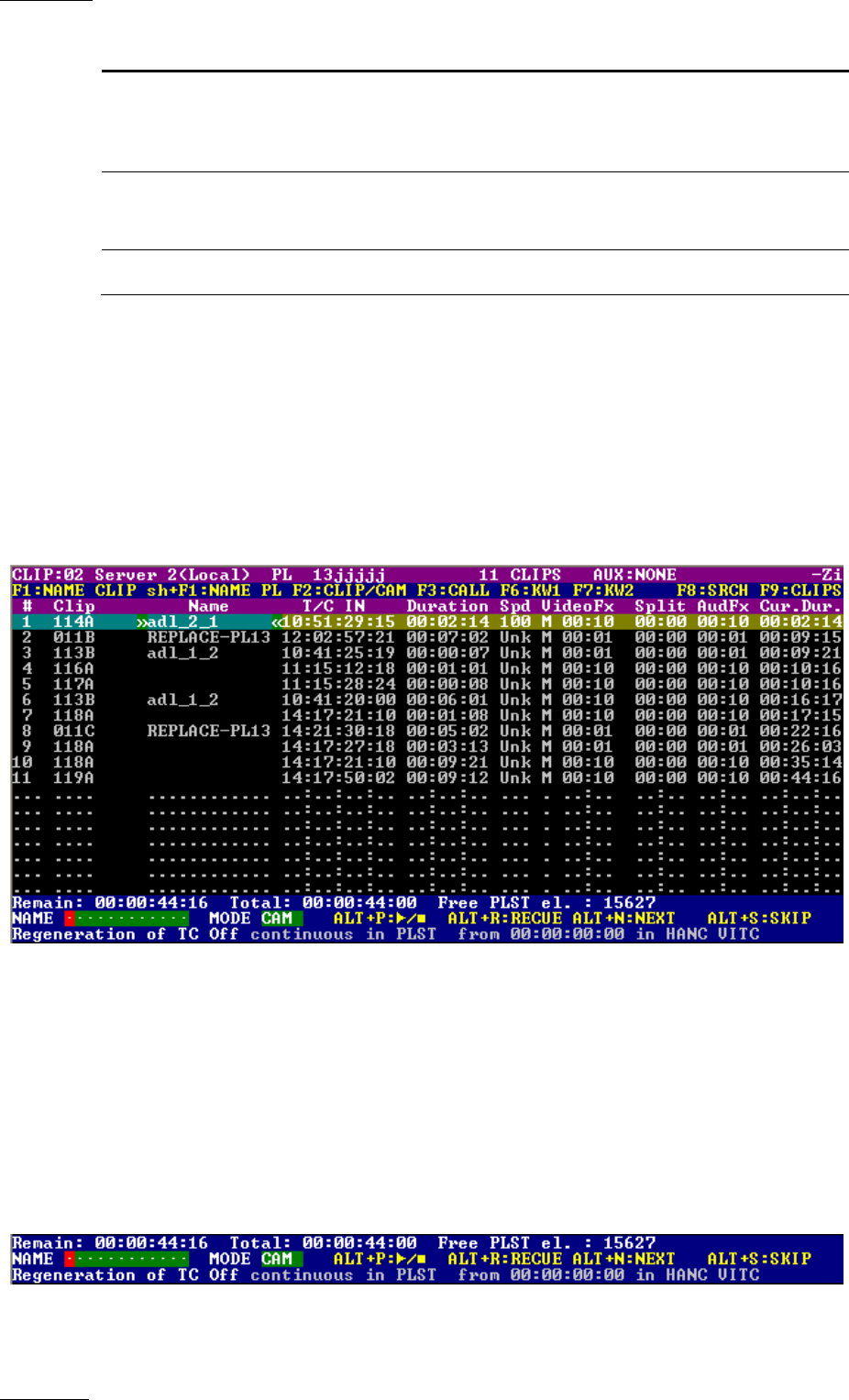

Pressing F10 on the keyboard calls the VGA Playlist screen. The Playlist screen
displays information on the clips included in the current or loaded playlist. Several
transport functions are available from this screen. For more information, refer to
section 11.8.2 ‘Functions Available from the VGA Playlist Screen’, on page 90.
DISPLAY DEPENDING ON THE LOAD PLAYLIST SETTING
When the Load Playlist setting (P4.2, F5) is set to ‘Conditional’ in the Setup
menu on the Remote Panel, the information displayed on the VGA Playlist Screen
will differ depending on whether a playlist is loaded on the PGM1 or not:
If a playlist is loaded on the PGM1:
• All the information displayed on the Playlist Screen refers to the loaded playlist.
• The Play, Skip, Next and Recue commands are displayed on the blue-
highlighted section at the bottom of the page.
