11.2.3 ACCESSING THE PLAYLIST PLAYOUT MODE
When you load a playlist pressing the PLST key on the Remote Panel, you need to
press PLST a second time to enter the Playlist Playout mode.
The first frame of the playlist element following the one on the PGM will be
displayed on the PRV side. This allows the operator to play only parts of the
playlist, starting from the current position.
The menu available from the Playlist Playout mode on the Remote Panel display is
the following:
2nd CTRL
FilmFX NEXT SKIP EDIT
Note
A third selection of the PLST button cues the playlist to the beginning,
displaying the first playlist element on the PGM side and the following
clip on the PRV.
For more details on the Playlist Edit mode, refer to the section 11.8.3 ‘Functions
Available on the Remote in Playlist Playout Mode’, on page 91.
11.3 PLAYLIST DISPLAY ON THE VGA

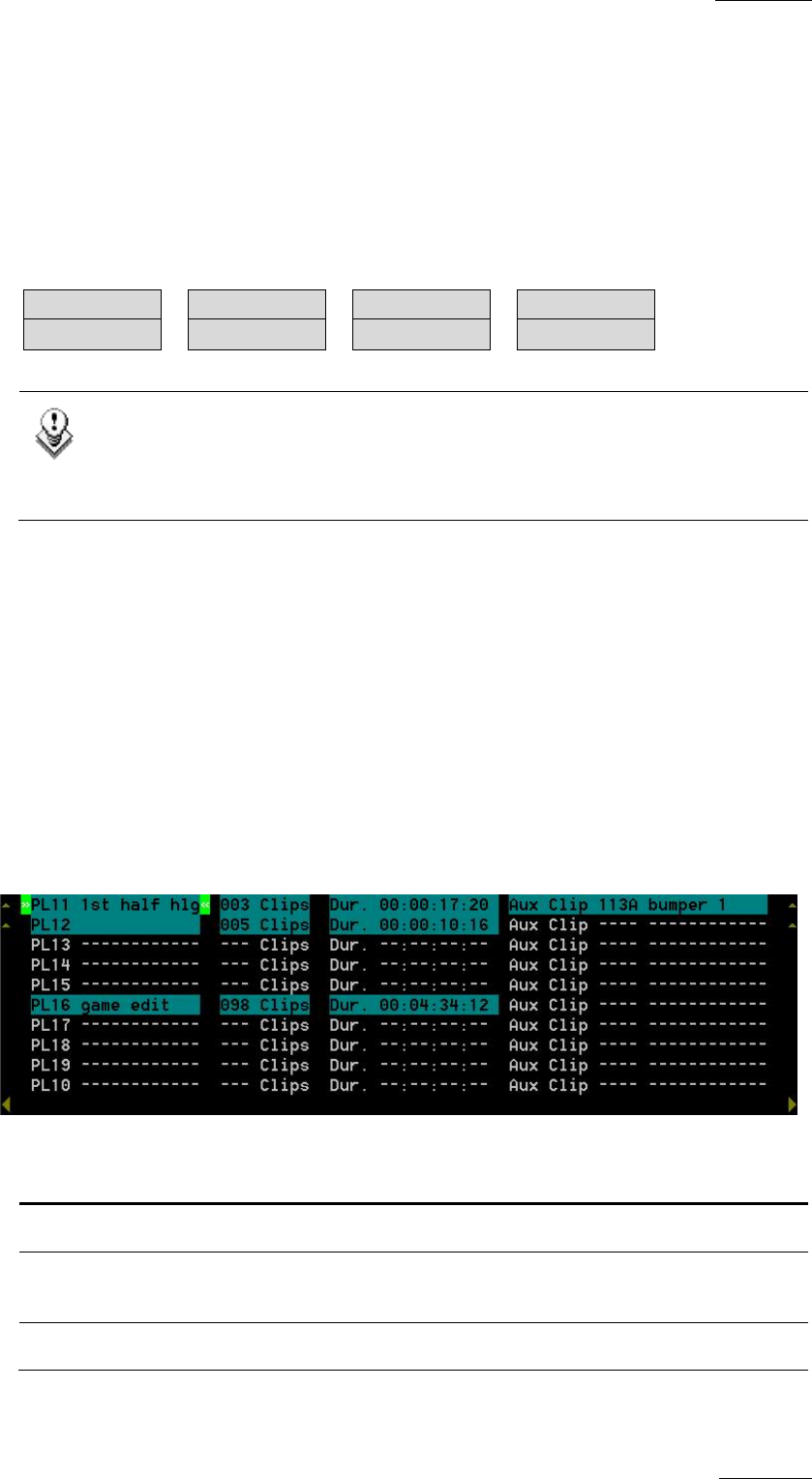

11.3.1 VGA PLAYLIST BANK SCREEN
Pressing END on the keyboard when the Clip screen is displayed allows the users
to access the VGA Playlist Bank screen on the given page. This gives an overview
on the playlists and timelines stored on the bank.
For each playlist the following information is displayed:
Field Description
Playlist ID Unique identifier of the playlist on the server. Ex: PL16
Playlist Name Name of the playlist. It cannot exceed 12 characters. Ex:
”game edit”
X clips Number of available clips in the playlist (unavailable network
