10.2.2 HOW TO ASSIGN A KEYWORD TO A CLIP
Move the cursor to the desired keyword and press ENTER, or click on the keyword
with the stylus. The keyword will be assigned to the first available keyword
location on the last line of the screen. Repeat this to assign more keywords (up to
3) to the current clip.
Depending on the CLIP/CAM mode, the keywords will be assigned to the current
camera angle only (CAM mode), or to all camera angles of the current clip (CLIP
mode).
If 3 keywords are already assigned to the clip, the operator has to clear some of
them to be able to assign new keywords.

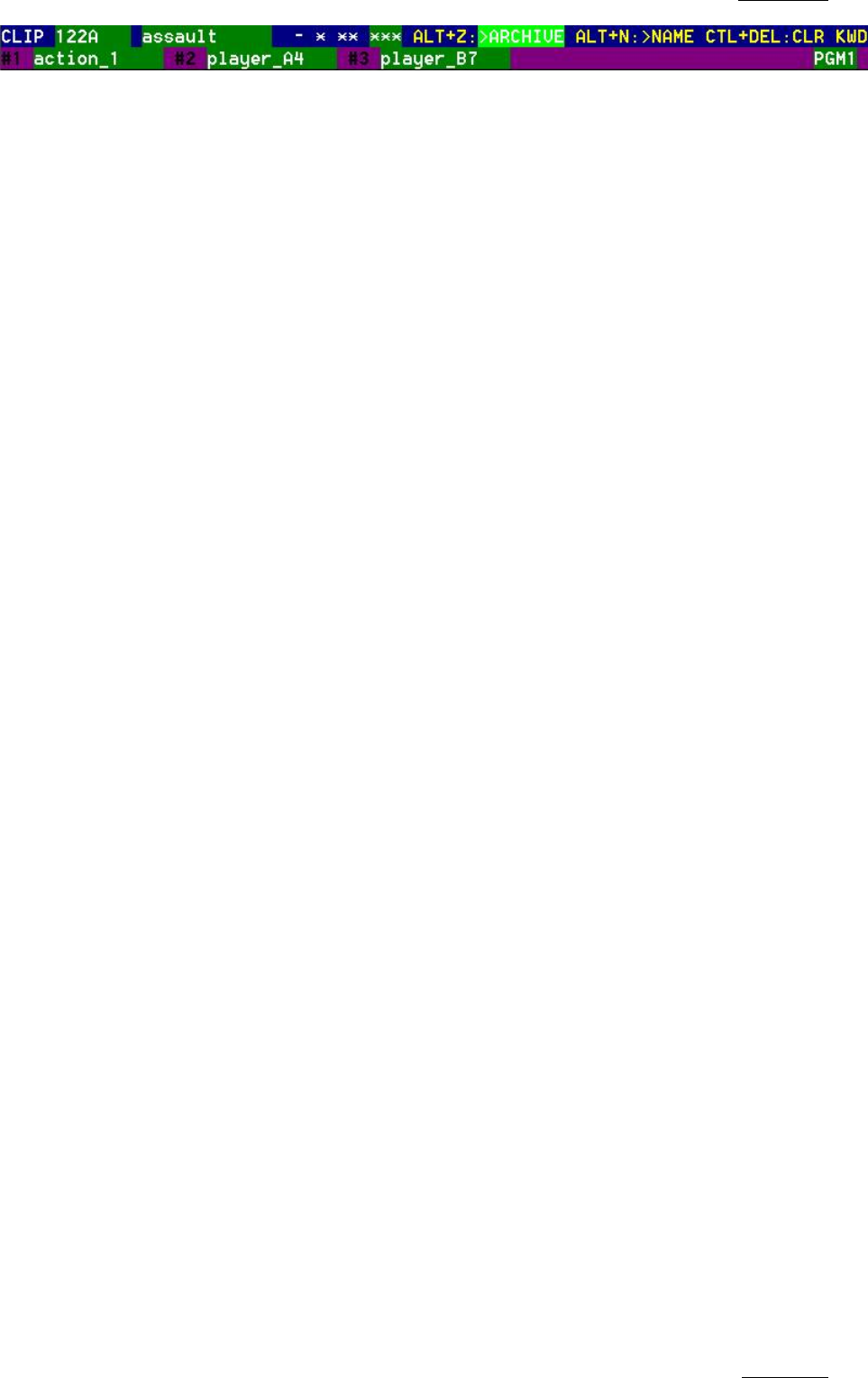

10.2.3 HOW TO CLEAR A KEYWORD WITH THE KEYBOARD
Press <TAB> to move the arrow cursor to the lower area of the screen. Red
arrows will appear around one of the keywords or ranking values. Use the ←/→
arrows to select the keyword to remove, and press CTRL+DEL. Press the <TAB>
key again to move the arrow cursor back to the keywords list.
10.2.4 HOW TO CLEAR A KEYWORD WITH THE STYLUS
Click on the keyword to remove on the last line, the click on the CTRL+DEL:CLR
KWD area on the screen, or press CTRL+DEL.
10.2.5 HOW TO EDIT THE RANKING OF THE CURRENT CLIP WITH
THE
KEYBOARD
Press the <TAB> key to move the cursor to the lower area of the screen Use the
←/→ arrows to select the desired ranking, and press ENTER. The selected
ranking is highlighted in green.
10.2.6 HOW TO EDIT THE RANKING OF THE CURRENT CLIP WITH
THE
STYLUS
Click on the desired ranking, it becomes highlighted in green.
