Select a local keywords file from the Setup. If you select “SERVER” as keywords
file in the setup, i.e. the file distributed by the network server, you will not be
allowed to edit it.

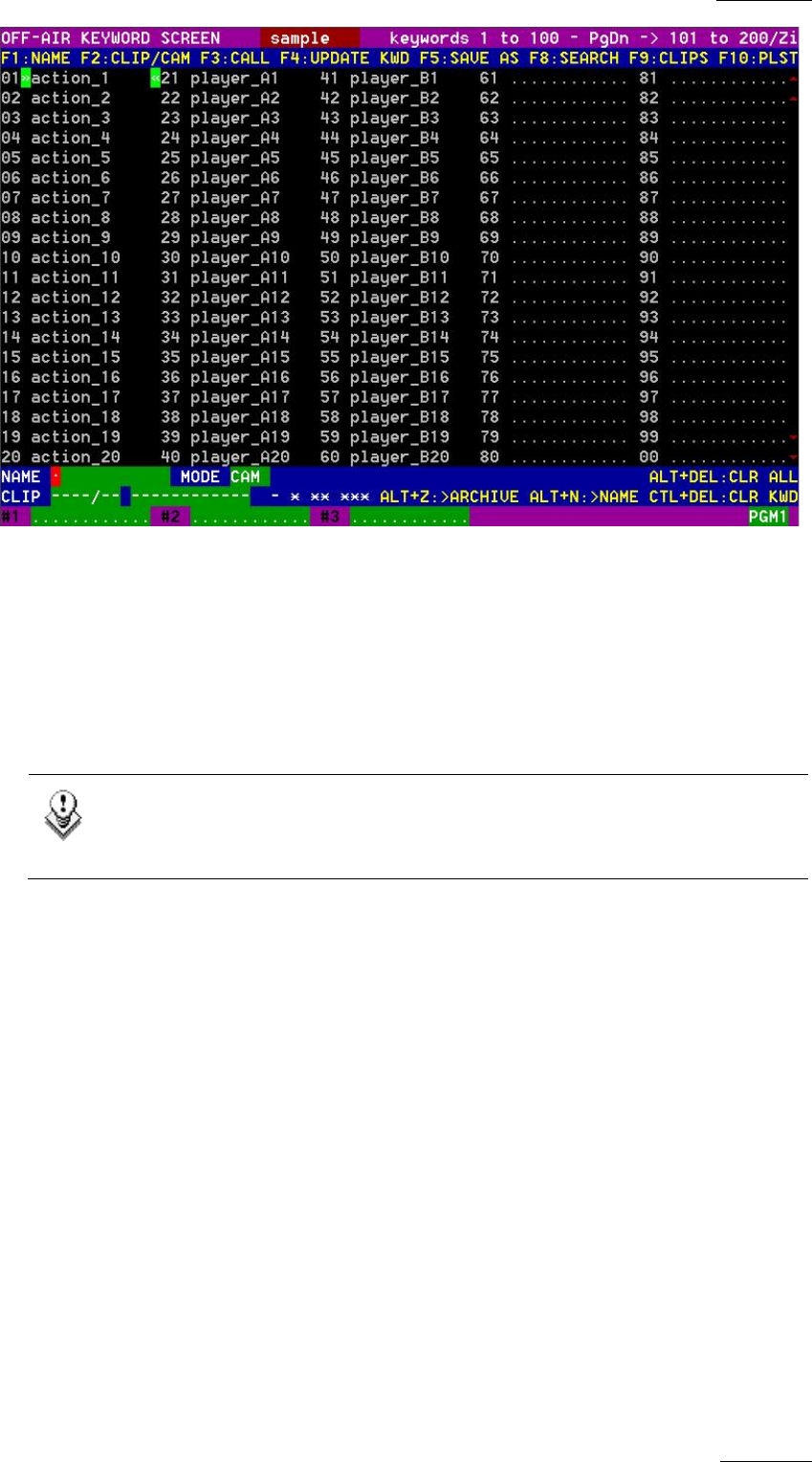

Go to the Off-Air Keyword Screen by pressing F7 on the keyboard. If you want to
create a backup copy of the current file, press F5:SAVE AS in that screen (or click
on the function with the stylus) and enter the name of the file you want to create.
This can also be used to create a local copy of the keywords file distributed by the
Network Server.
Note
If a .KWD file with the same name already exists in the KWD directory, it
will automatically be overwritten by the new file.
To edit a keyword in the current file, move the cursor to the desired keyword
location, using either the arrow keys or the stylus, then type the new keyword.
This one will appear in the Name field at the bottom of the screen. Press ESC to
clear the whole field or <BACKSPACE> to delete the last character. To apply the
value entered in the name field to the selected keyword, press F4:UPDATE KWD,
or click on that function with the stylus.
Repeat this operation for all keywords to update.
Press PgU/PgDn to toggle between Page 1 (keywords 1 to 100) and Page 2
(keywords 101 to 200), or click on the Up/Down red arrows on the right side of the
screen.
If your machine is the actual Network server, the updated file is automatically sent
to all other users on the network every time a keyword is updated.
