Issue
10.03.A
XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
58

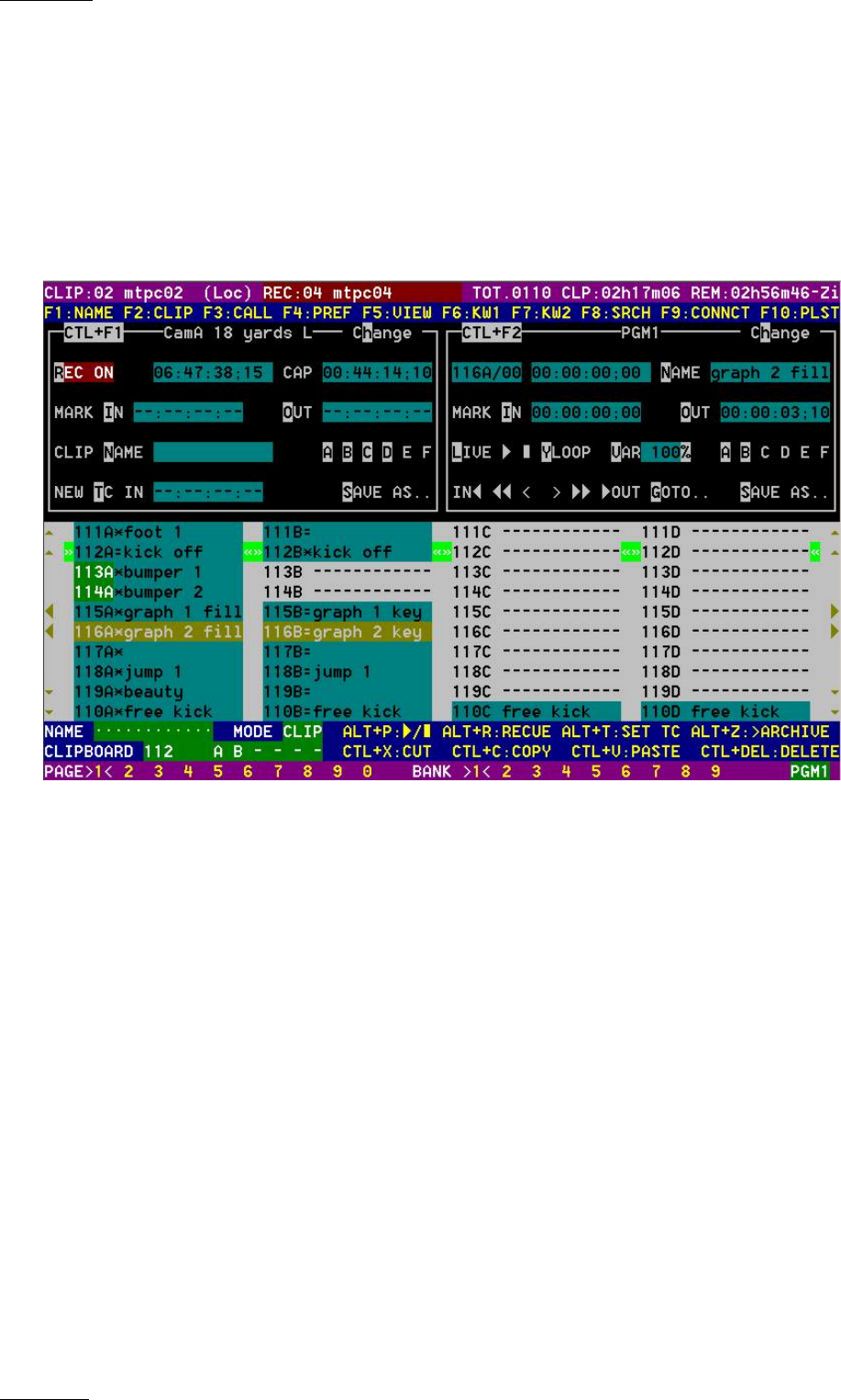

9.4 USING THE VDR PANEL
The VGA VDR Panel is accessed from any VGA screen by pressing SHIFT+F9 on
the keyboard. The lower section of the VDR Panel is similar to the clip screen,
with the same functions. The upper section of the VDR Panel features 2 windows
that can each take control of one channel of the server.
Pressing SHIFT+F9 in the VDR Panel returns the VGA to the Clip screen mode.
9.4.1 VDR PANEL – LOWER SECTION
The browsing of clips, the viewing modes (normal or extended), the way clips are
recalled, moved and copied, etc. in the VDR Panel is strictly the same as in the
Clip screen. The CONNECT window is called with F9, and allows to connect to
other servers on the network.
9.4.2 VDR PANEL – UPPER SECTION
The two windows of the upper section can be assigned to a different channel of
the server. When entering the VDR Panel for the first time after starting the
application, the control of both windows is disabled.
Press CTRL+F1 to gain control of the left window, or CTRL+F2 to gain control on
the right window. The frame around the corresponding window becomes green.
Note that only one window can be active at a time. Inside the active window,
letters/numbers highlighted in green indicate the keyboard shortcut to the
corresponding function: press ALT + the highlighted letter/number. All functions
are also available by clicking with the stylus.
