9.3.12 HOW TO RESTRIPE THE TIMECODE OF THE CURRENT CLIP
To restripe the timecode of the current clip, proceed as follows:
1. Recall the clip by moving the cursor on the desired clip and pressing
ENTER, or by clicking on it with the stylus.
2. Press ALT-T on the keyboard to call the SET TC function.

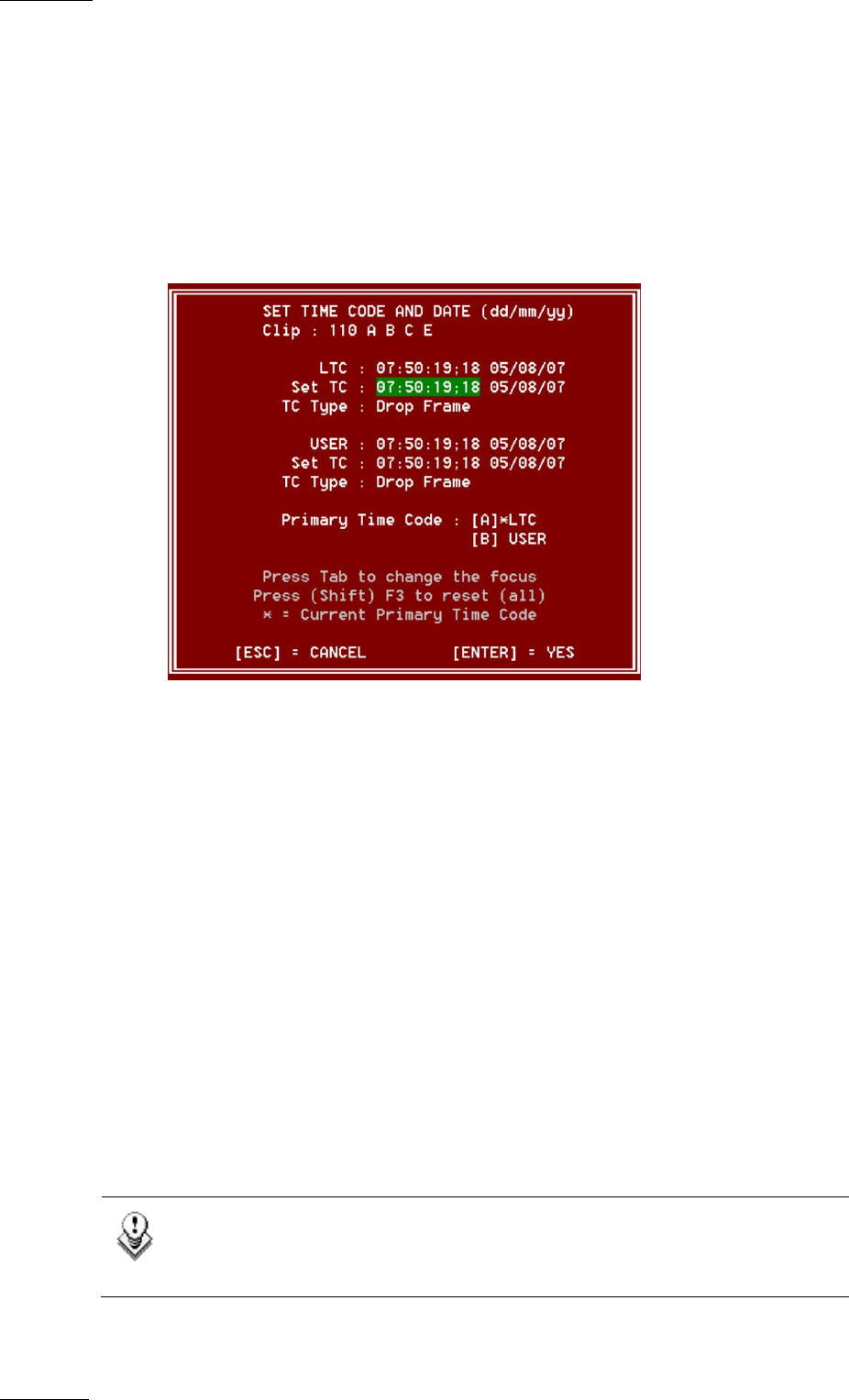

The Set Timecode screen is displayed (without TC Type field with PAL –
refer to note below):
3. If you want to modify the LTC timecode and date, type in the new timecode
for the Short IN point and date of the clip in the Set TC field below the LTC
field.
4. If you want to modify the user-defined timecode and date, type in the new
timecode for the Short IN point and date of the clip in the Set TC field below
the USER field.
5. If you want to modify the primary TC for this clip, press the A or B key which
corresponds to the requested primary TC.
6. Press F2 to select CAM or CLIP mode
• In CAM mode, only the timecode of the camera angle loaded on the
primary channel will be changed.
• In CLIP mode, the timecode of all camera angles of the clip will be
changed.
7. Press ENTER to confirm or ESC to cancel.
The entire clip is updated according to the new timecode value so that the
timecode remains continuous inside the whole clip.
Note
In 59.94Hz modes (NTSC), you can also select between DROP FRAME
and NON DROP FRAME modes by pressing the space bar.
