The navigation through the Clip screen, and the various functions available on this
screen, can be performed using the tablet and stylus, or the keyboard shortcuts.

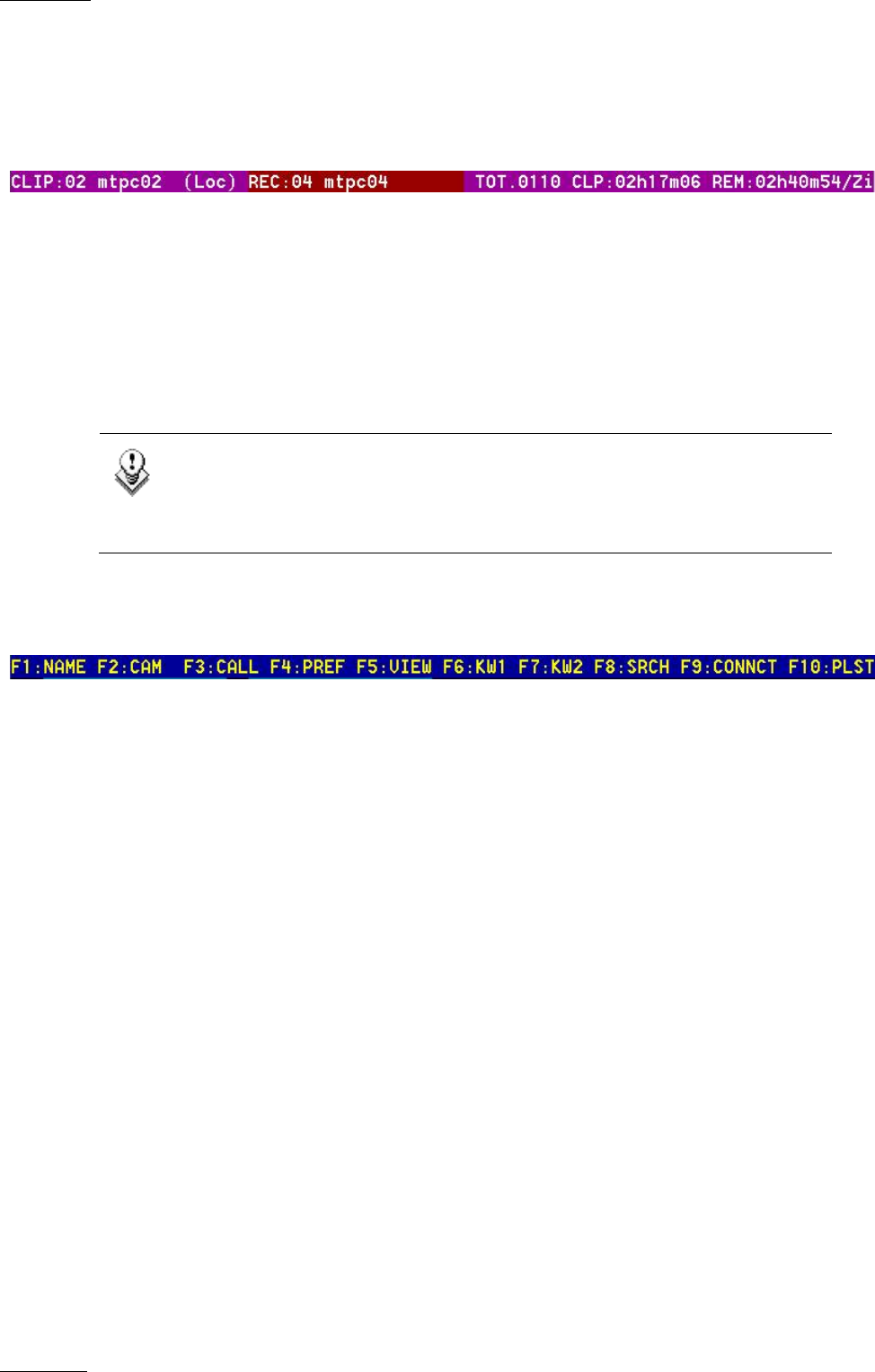

9.3.2 THE TITLE BAR
The Title bar contains the status information:
• Number and name of the server currently selected for clips and for record trains
(*). The name is blinking red if it is a network machine.
• Total number of clips (i.e. protects, 1 camera angle counting for 1 clip in this
count)
• Total duration of all clips
• Remaining capacity on the server (all record trains together; valid for local
server only)
Note
The abbreviated word “(Loc.)” appears next to the name if the local
machine is currently selected for clips and/or for record trains. The clips
displayed in the clip screen belong to this machine.
9.3.3 THE FUNCTION BAR
The second line displays the available functions. Each function can be called by
the corresponding F_ key of the keyboard, or by clicking with stylus & tablet on
the corresponding area on this line.
F1: Name
This function is used to name a clip. For more information on how to name a clip
in the VGA, refer to the section 9.3.8 ‘How to Name a Clip’, on page 52.
F2: Clip/Cam
This function toggles between CLIP mode and CAM mode.
• In CLIP mode, actions on a clip will use all available cameras for this clip.
• In CAM mode, actions on a clip will only use the selected camera for this clip.
Other functions such as Name, Delete, Copy, Set TC, >Archive depend on this
mode selection.
F3: Call
The operator can gain immediate access to a local or network clip by typing its ID
number.
