XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
Issue
10.03.A
45
5. Press the OUT key to mark a new Short OUT point. The new Short OUT
point is instantly saved.
Press the PLAY key to play the clip. The replay will stop at the new Short OUT
point (or after the Short OUT point if the Post-Roll mode is enabled).
GOTO IN and GOTO OUT
You can use Goto IN and Goto OUT functions to jump immediately onto Short IN
or Short OUT points respectively.
9.2.10 HOW TO SAVE ALL CLIPS/PLAYLISTS
1. Go to the Main menu (SHIFT + MENU)
2. Press the function key F0 on the remote to save clips and playlists.

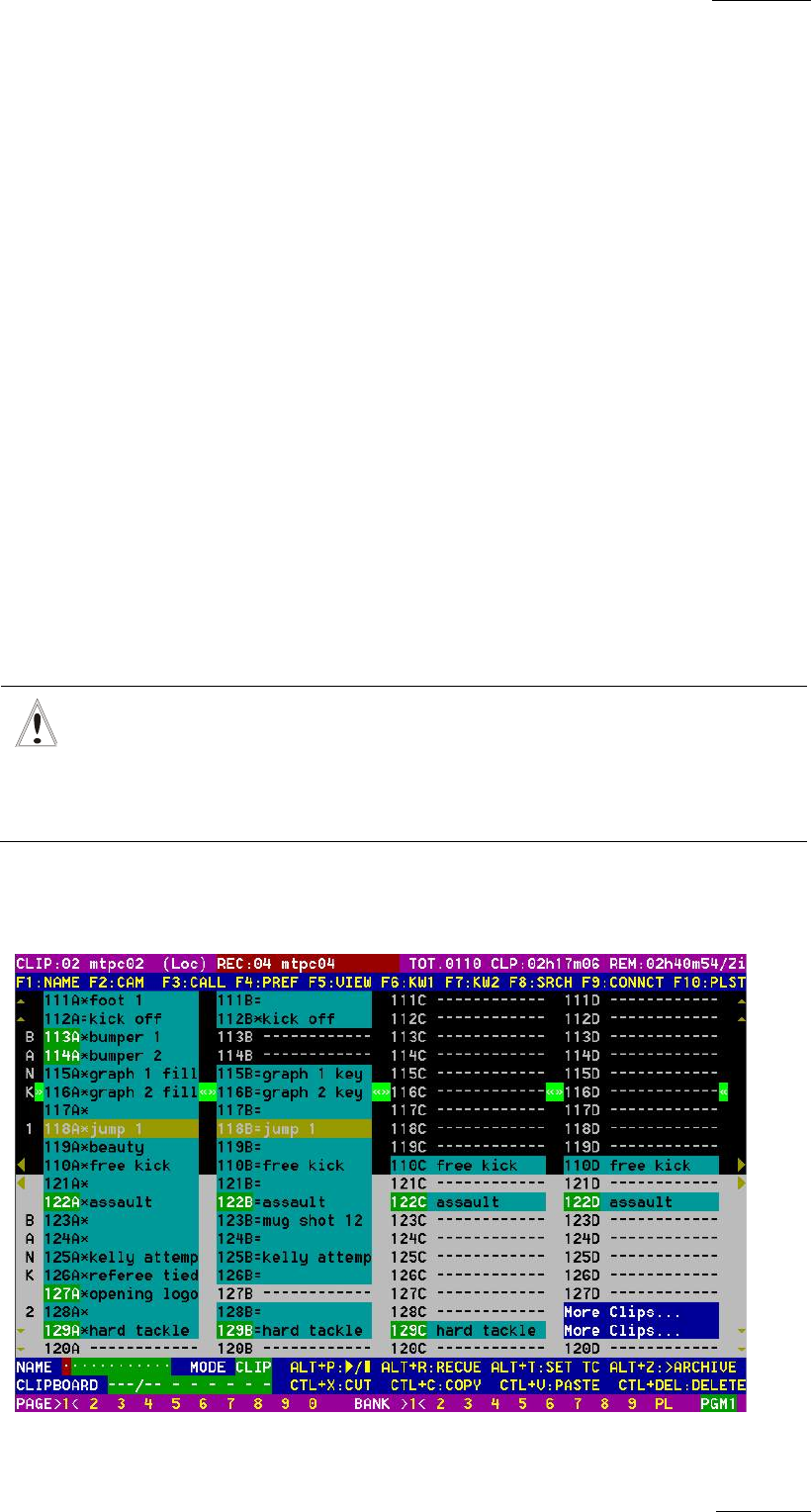

9.3 USING THE CLIP SCREEN
The VGA Clip screen is accessed by selecting the F9 key on the keyboard. With
this screen, clips can be recalled using the pen and tablet or directly from the
keyboard.
Important
The action performed on a channel from the Clip screen is concurrent to
any other controller that might be assigned to that channel: EVS Remote
Panel or external protocol. A command sent from the Clip screen to a
channel will overwrite whatever the channel was doing at that time.
9.3.1 CLIP SCREEN – STANDARD VIEW
