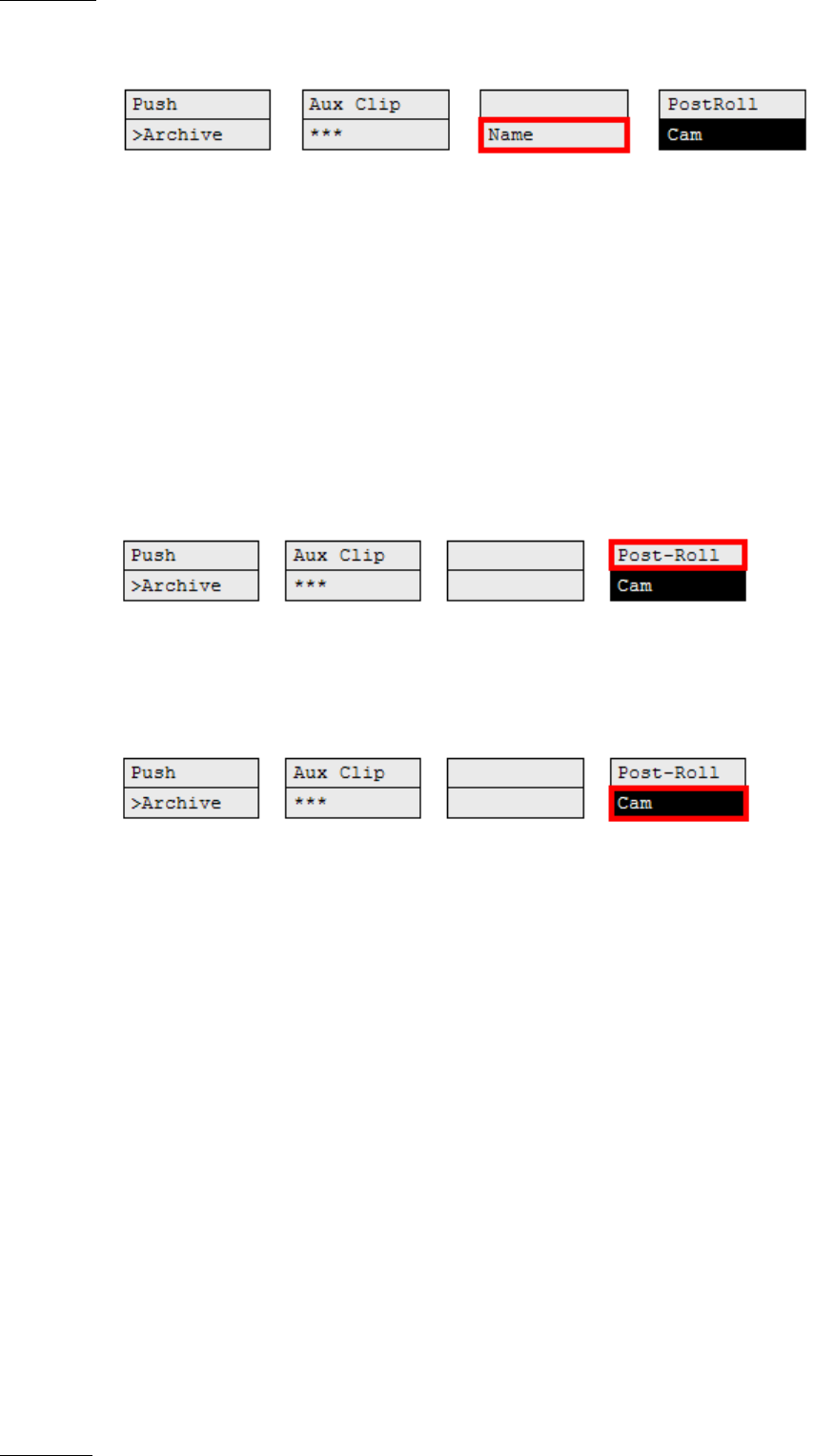

NAME
The Name function is only available if a keyword file is selected in the Setup
menu. It is used to name a clip based on available keywords. Refer to the Chapter
10 ‘Keyword Management’, on page 64 for more details. When the Name function
is s
elected, pressing SHIFT+C again will call the Search function.
SEARCH
The Search function is “hidden” behind the Name function. Press SHIFT+C again
in Name mode to call it. It allows the operator to search the database for clips
based on keywords and ranking. Please refer to Chapter 10 ‘Keyword
Ma
nagement’, on page 64 for details.
POST-ROLL
This function
enables/disables the Post-Roll mode. This mode is explained in details in the
section ‘PostRoll’, on page 24.
CLIP/CAM
Pressing the D key will toggle between CAM and CLIP modes on the remote.
Please note that this mode on the remote and on the VGA screens is never
synchronized. In CAM mode, the Push, Archive, Ranking assignment, Keyword
assignment, and Name functions will apply only to the camera angles of the clip
loaded on the controlled channels. In CLIP mode, these functions will apply on all
camera angles of the clip.
9.2.9 HOW TO SHORTEN A CLIP
To shorten a clip, proceed as follows:
1. Recall the desired clip by pressing the corresponding F_ key.
2. Move the jog dial to browse the clip and reach to the desired Short IN point.
3. Press the IN key to mark a new Short IN point. The new Short IN point is
instantly saved.
4. Move the jog dial to reach the desired Short OUT point.
