In both cases, a message appears for a few seconds on the LCD to confirm that
the clip is being pushed and indicating the clip location where it will be stored on
the receiving machine.
If the Receive Page(s) defined on the destination machine is (are) full, the
operator who tries pushing the clip is notified. While this message is being
displayed, the operator can press the MENU key at any time to return to the
normal menu. Depending on the CAM/CLIP mode selected by the D key, only the
camera angles loaded on the controlled channels are pushed (CAM mode), or all
camera angles of the clip are pushed at once (CLIP mode).

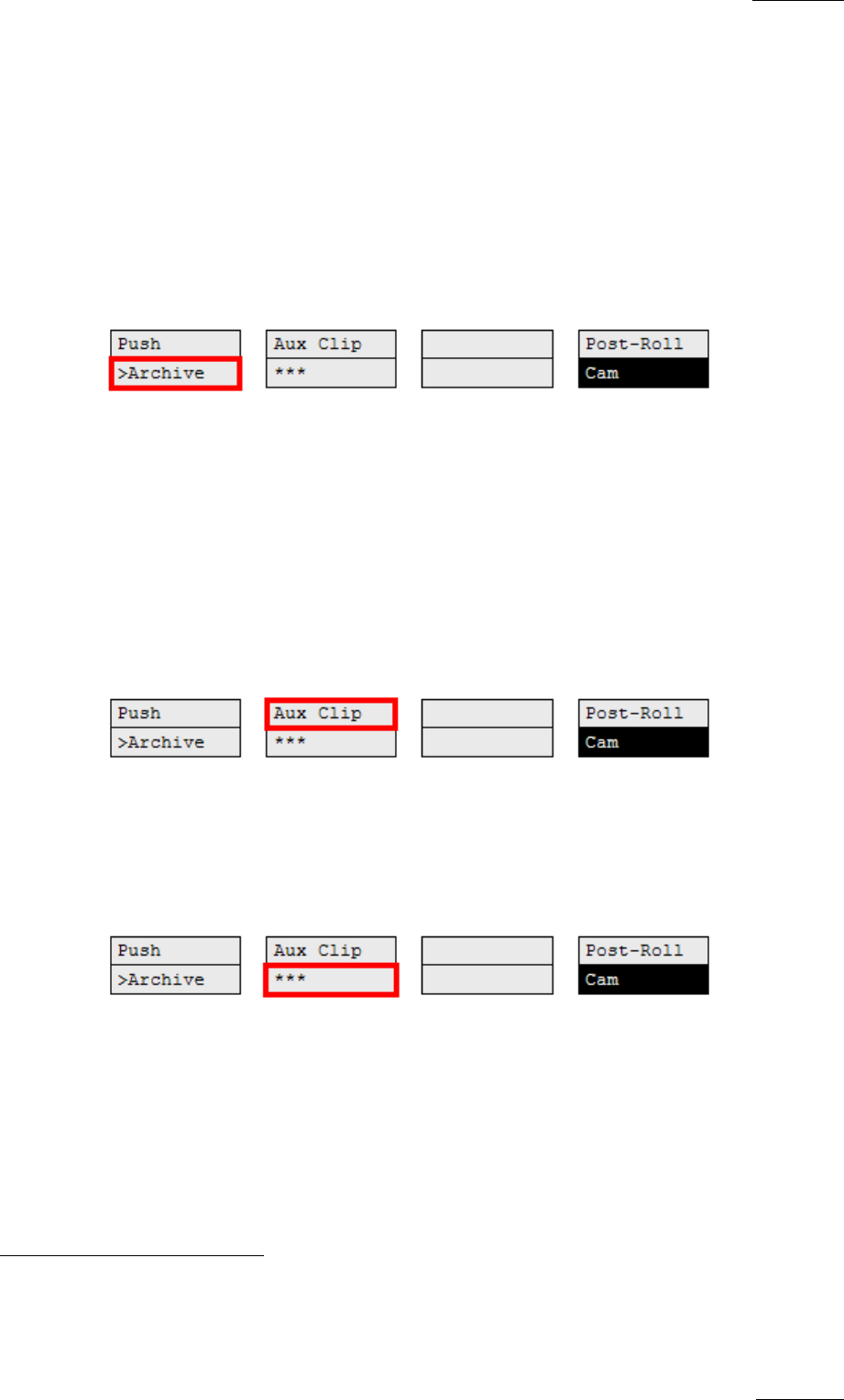

>ARCHIVE
The Archive function allows the operator to flag a clip to place it in the archive
queue of the XFile
1
defined in the Setup menu (p.3.3 F3).
This function is blinking when the clip is flagged for archiving, but has not yet
been archived. It is permanently highlighted when the archiving of the clip is
completed.
Depending on the mode selected with the D key (CLIP/CAM), the >ARCHIVE flag
is assigned only to the camera angles of the clip loaded on the controlled
channels (CAM mode), or to all camera angles of the clip (CLIP mode).
AUX CLIP
This function allows assigning a clip as auxiliary audio clip to the current playlist.
Press CLEAR + Aux Clip (CLEAR + SHIFT + B) to remove the current auxiliary
clip. Refer to the Chapter 11 ‘Playlist Management’, on page 81 for more details.
RANKING (***)
The Ranking function allows assigning a ranking to the current clip. Pressing
several times this key will scroll through the different values: 0 (***, not
highlighted).
Depending on the mode selected with the D key (CLIP/CAM), this ranking is
assigned only to the camera angles of the clip loaded on the controlled channels
(CAM mode), or to all camera angles of the clip (CLIP mode).
If the Keyword Info parameter of the Setup menu is set to “Yes”, the ranking will
appear on the OSD of the output monitors when cueing up the clip.
1
The EVS Xfile is a 2U device with 2 removable hard drives, that can be connected to the XNet network. Clips can be
archived to/restored from the removable media.
