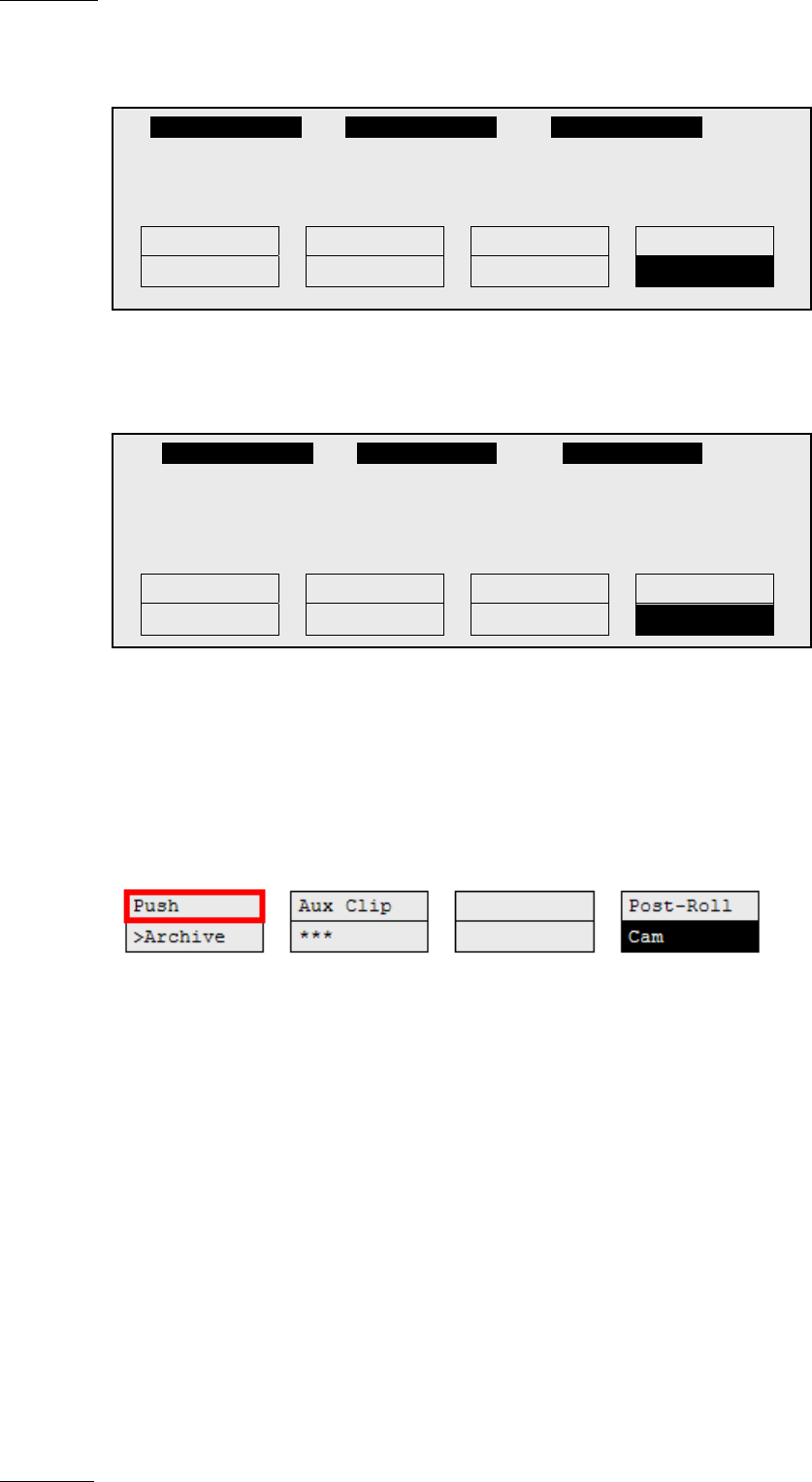

Press MENU to access the secondary menu. If no keyword file is selected in the
setup, the LCD display will be:
In this mode of the secondary menu, clips can still be directly recalled using the
F1-F10 keys of the Remote Panel.
If a keyword file is selected in the setup, the LCD display will be:
In this mode of the secondary menu, the F1-F10 keys are used for keyword
assignment, and thus can no longer be used to recall clips. For a description of
the keyword-related functions, please refer to the “Keyword Management” Section
of this manual.
The ID of the current clip appears on the end of line 3 of the LCD display.
PUSH
Introduction
The Push function allows you to easily send a copy of a clip to another machine
on the network, either via the GigE network or the SDTI network.
Principle
•
If one or two default targets (push machines) are defined in the setup, the clip
will be automatically sent to these machines.
• If no default target is defined, the list of machines available on the network will
appear. As soon as the operator selects one of them, the clip is pushed.
Depending on the push settings defined, the default targets or the list of
possible targets submitted to you will contain EVS servers on the SDTI
network and/or EVS servers on the GigE network.
For more information about the Push settings, refer to the Remote Panel
setup, page 3.3.
1keyword890123 2 keyword89012 3 keyword89012
111A
Push Aux Clip Sort->TC Post-Roll
>Archive *** Cam
1 keyword890123 2 keyword89012 3 keyword89012
F1:action_1 F6:action_6
F2:action_2 F7:action_7 111A
F3:action_3 F8:action_8
F4:action_4 F9: p.01
F5:action_5 F0:Next page
Push Aux Clip Sort->TC Post-Roll
>Archive *** Name Cam
