XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
Issue
10.03.A
31
8. Video Delay

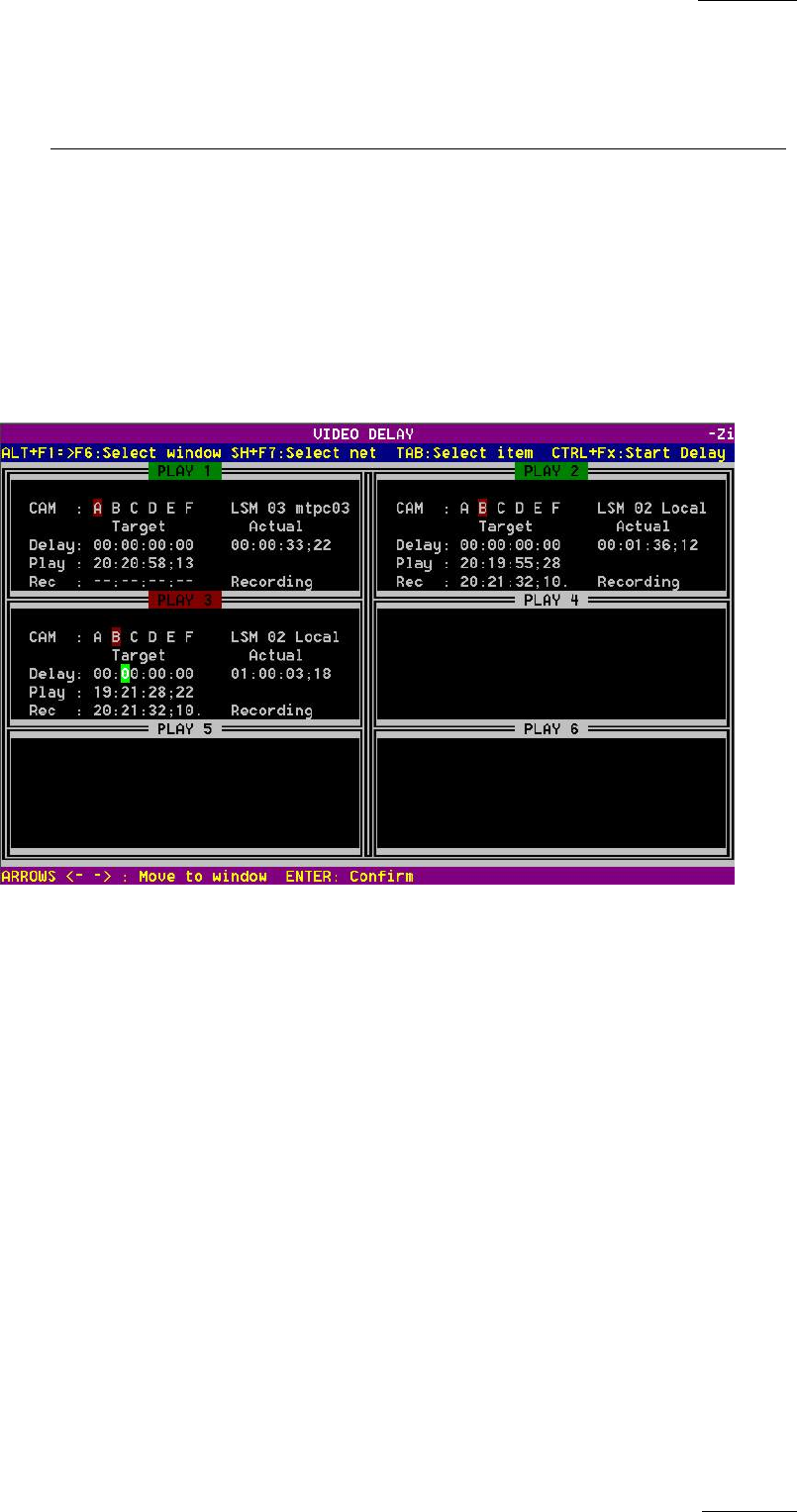

When the Multicam software has been configured with a base configuration =
Video Delay in the Channel Parameters menu, the Delay Screen will appear
automatically when the application is started. In this case, all play channels will
be available from the Delay screen.
If Multicam is running a base configuration different than Video Delay, this screen
can be called manually from the Clip screen, Playlist Screen or Network Screen by
pressing SHIFT-F7 on the keyboard. In this case, only the play channels assigned
to user #1.
For each play channel, the operator can adjust:
• the video and audio source (camera angle, and source server if several units
are connected on an SDTI network);
• the desired delay in hh:mm:ss:fr.
For each play channel, the operator can view:
• the actual delay in hh:mm:ss:fr;
• the timecode of the on-air picture
• the timecode of the incoming picture on the associated record channel;
• the status of the associated record channel (Recording / Idle)
