7.1.2 OPERATIONAL MENU
The operational menu in Multi PGM mode gives access to the functions detailed in
the following paragraphs:

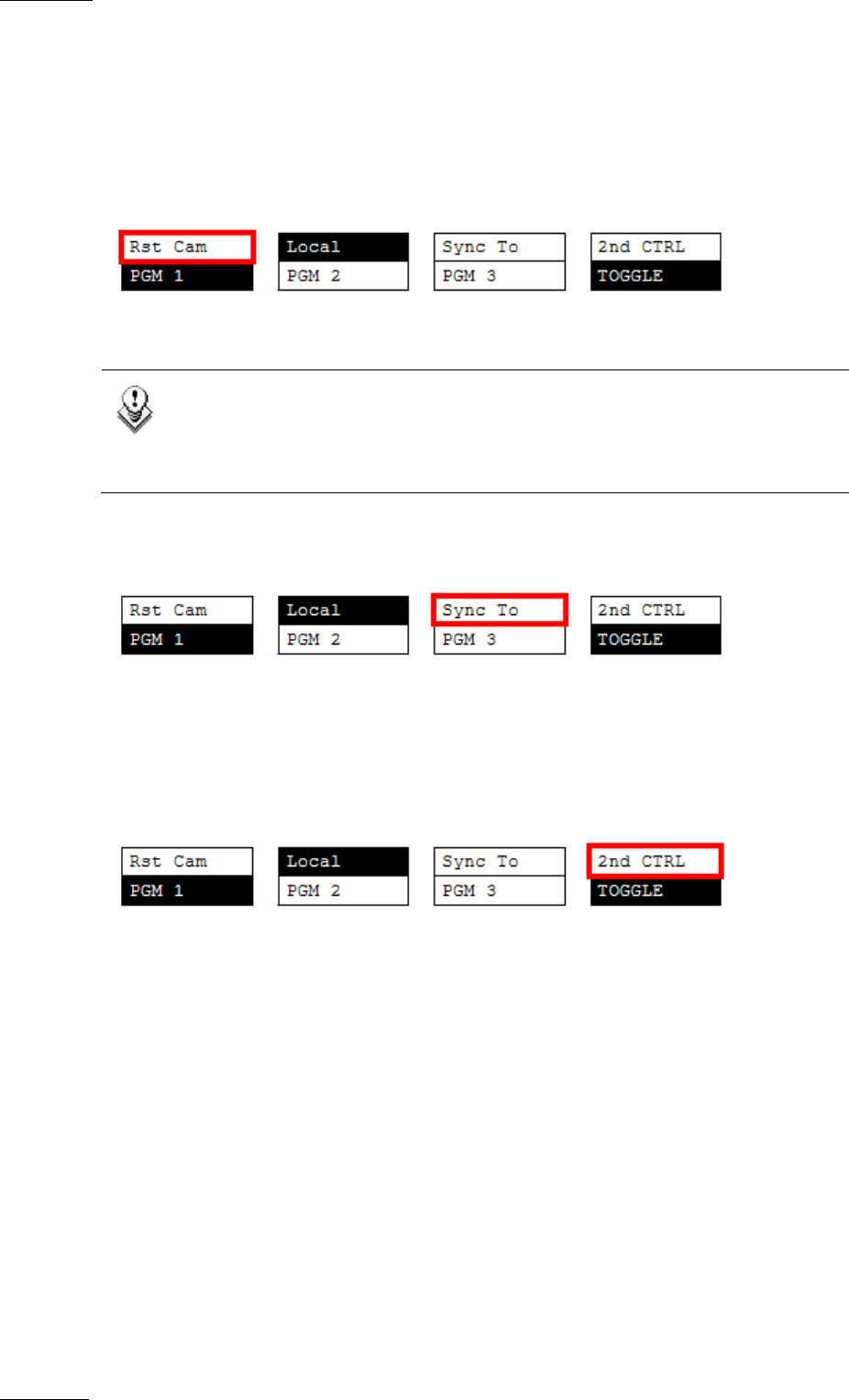

Rst Cam
This function restores the position of cameras on the active channels: CAM A on
PGM1, CAM B on PGM2, etc.
Note
When a clip/playlist is loaded on a channel, switching back to Live mode
will recall the record train, which was last used on that output. This
avoids too frequent uses of the Rst Cam function.
Sync To
This button allows you to synchronize the selected PGM in use with another one.
Press this button and then select the PGM to be used as a reference. This
function is not available with network trains.
2nd CTRL
This function allows the operator to swap the control of one or several play
channels between the EVS remote and a third-party controller. Both controllers
receive permanently the status of the channel(s), but only one controller at a time
is able to actually control a channel. The secondary controllers are defined in
Section 7 of the remote Setup Menu.
Press this function to enter the 2nd CTRL menu, select the channels that you want
to pass to the secondary controller by pressing the corresponding A, B or C key,
then press D (DONE) to validate your selection. Do the same to bring the control
of a channel back to the EVS remote.
