PgmSpd/VarMax

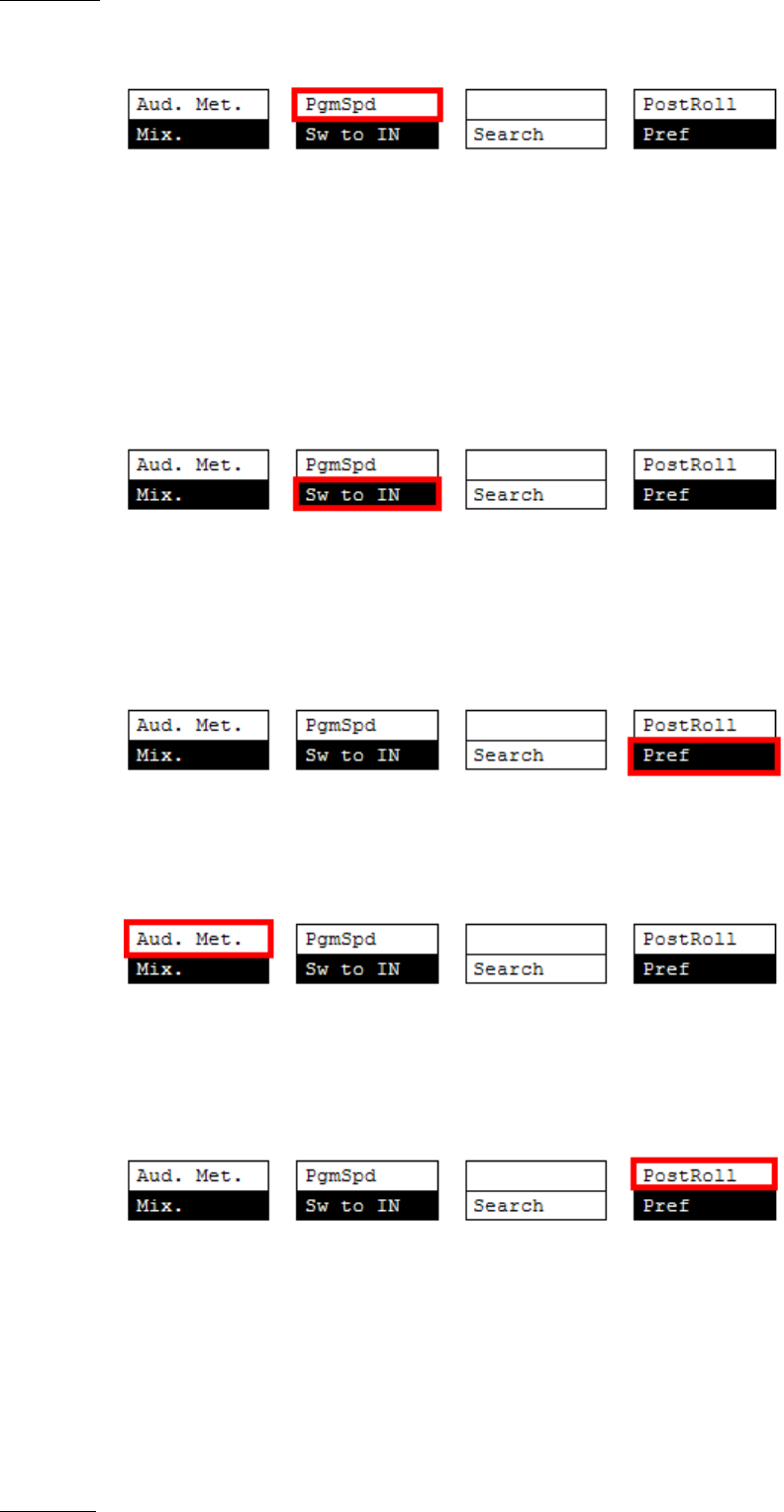

Pressing PgmSpd once enables the Program Speed mode and highlights this
function on the LCD. The PLAY key is flashing red while the PgmSpd mode is
enabled.
• Program Speed mode: In this mode, only the speed value defined in the setup
(p.6.1 F3) is available in playback.
• Var Max mode: The Var Max mode is not available on EVS servers.
Sw To In
When this function is enabled (highlighted), a camera change will cause a jump to
the corresponding IN point if existing. It will switch in Sync if no IN point exists for
the current element, or if SW to IN is OFF.
Pref
Selecting this function enables the Preference mode.
Aud.Met.
This option enables/disables the display of audio meters for all channels using the
OSD of the output monitors.
PostRoll
When the Post-Roll mode is enabled, that function is highlighted on the LCD and a
“P” appears on the OSD of the output monitors.
When the user exits Multicam with the Post-Roll mode on, this mode will still be
enabled when Multicam is restarted.
The Post-Roll mode works as follows depending on the element played:
