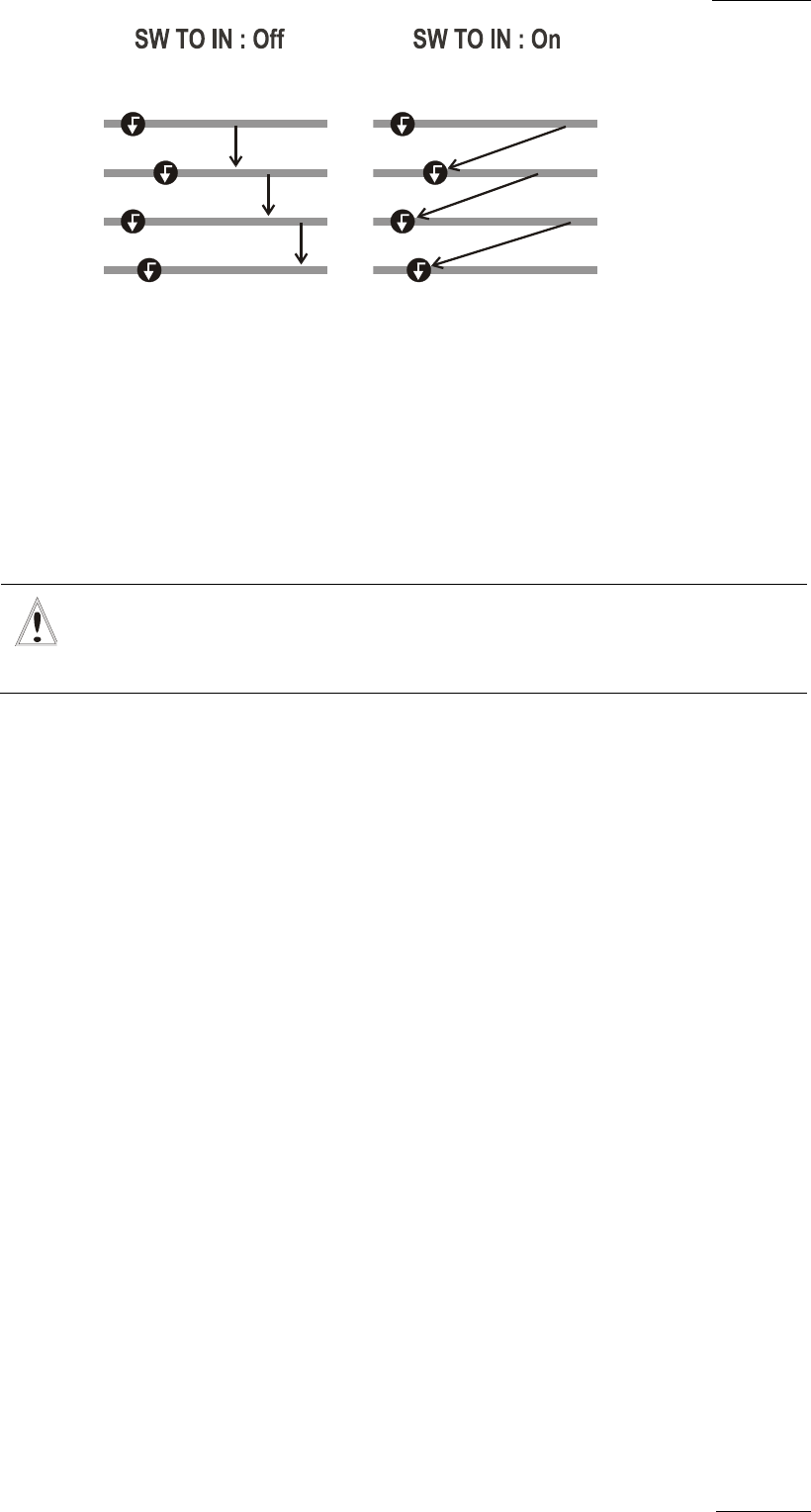

If a CUE IN point has not been previously defined, Multicam acts as in SW to IN
OFF mode (even if SW to IN ON is shown) because the system has no reference to
jump to.
5.5 DEFINITION OF CONTROLLED AND
PRIMARY CHANNELS
Important
The notions of Primary Channel and Controlled Channel are very
important and will be constantly referred to in this manual.
5.5.1 CONTROLLED CHANNEL
A channel is “controlled” when the operator can control it with the jog dial. In this
case, the words “FULL CTRL” are present on the top of the OSD of the output
monitor of that channel.
5.5.2 PRIMARY CHANNEL
The primary channel is the first controlled channel. It is identified by stars around
its name on the OSD of the output monitor and on the LCD display of the Remote
Panel (ex: *PGM1*).
Examples:
• In 3PGM mode, if the operator controls PGM2 and PGM3, the primary channel is
PGM2.
• In PGM+PRV mode with PRV CTRL OFF, the primary channel is PGM.
• In PGM+PRV mode with PRV CTRL ON, the primary channel is PRV.
Cue In1
Clip B
Clip A
Clip C
Clip D
Cue In2
Cue In3
Cue In4
Cue In1
Cue In2
Cue In3
Cue In4
