XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
Issue
10.03.A
19
Note
• The playlist bank of page 10 is not available from the EVS remote,
since it is actually reserved for the EVS AVSP protocol (for Air Box and
Air Edit).
• To identify remote playlists when using the XNet SDTI network, the
number of the playlist is followed by the number of the machine on the
network, i.e. Playlist 51/04
4.3 CLIP NUMBERING HIERARCHY
Multicam can store up to 900 (multiplied by the number of cameras) clips and 100
playlists in its libraries. 900 clips with up to 6 camera angles per clip results in
5400 clips on a server. This number is displayed in the upper right window of the
VGA Setup screen (SHIFT+F2 from the PC keyboard).
If you are working with XNet SDTI network, keep in mind that the total number of
clips on the entire network is limited to 6,000 or 16,000, depending on the network
settings. This number is displayed in the same area on the VGA Setup window.

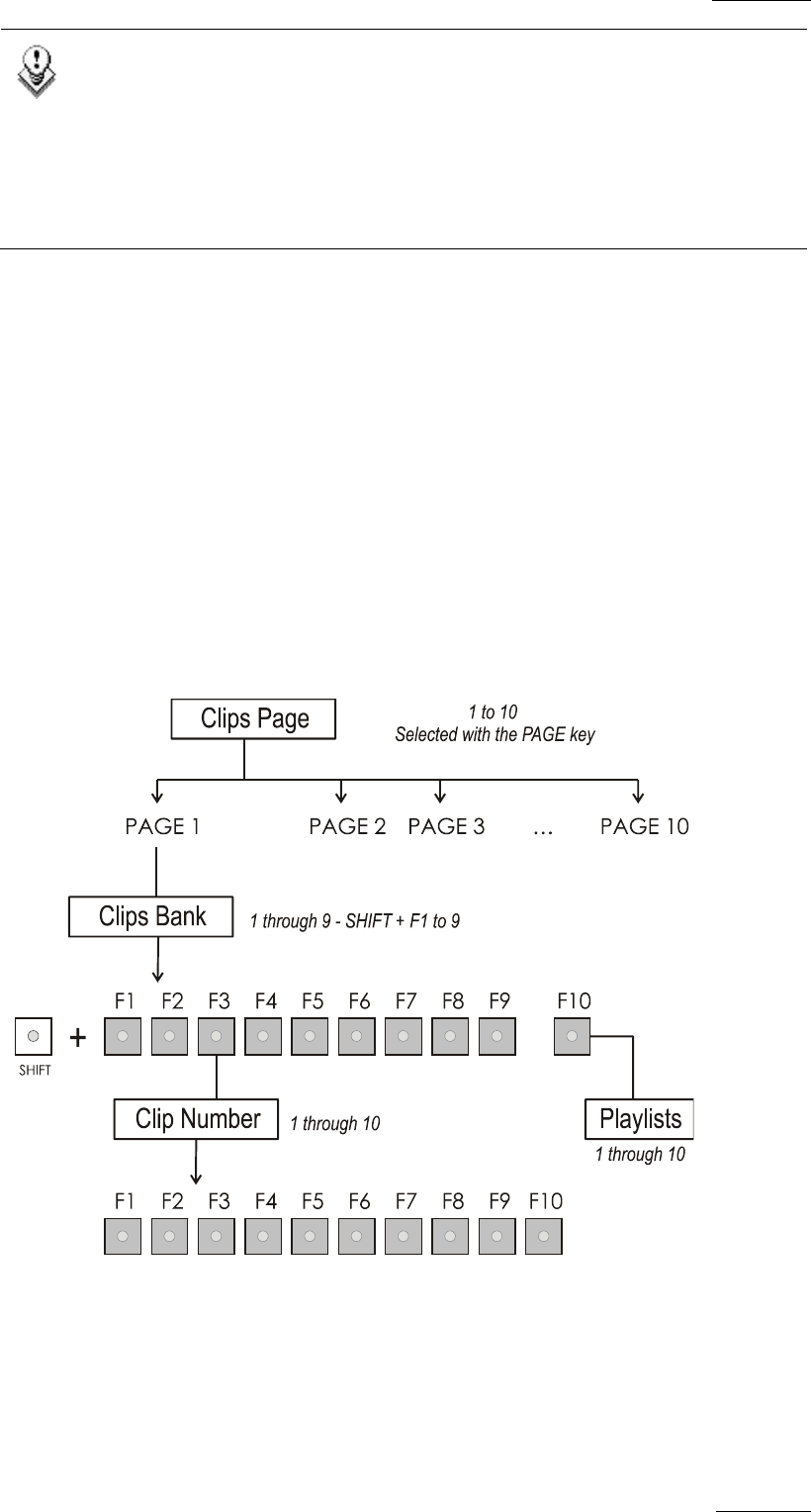

The following diagram represents the hierarchy of the Multicam clip numbering
system. As an example, clip number “112” is used:
