2.3 F-KEYS & SMALL BUTTONS
F1 F2 F3 F4 F5 F6 F7 F8 F9 F1 0
MENU SHIFT CLEAR ENTE
R
This button provides access to the Secondary Menu. Also used as
CANCEL in some messages when confirmation is required.
Note: SHIFT + MENU returns to Main menu
Enables use of the secondary key functions.
Note: This key remains active even if released, until another key
has been hit.
Stores or recalls clips, recall playlists and enter timecode
information.
Is a multi-purpose key used to clear clips or playlists, and to clear
IN/OUT points.
Is used to append clips at the end of the current playlist, and to
validate other options and messages.

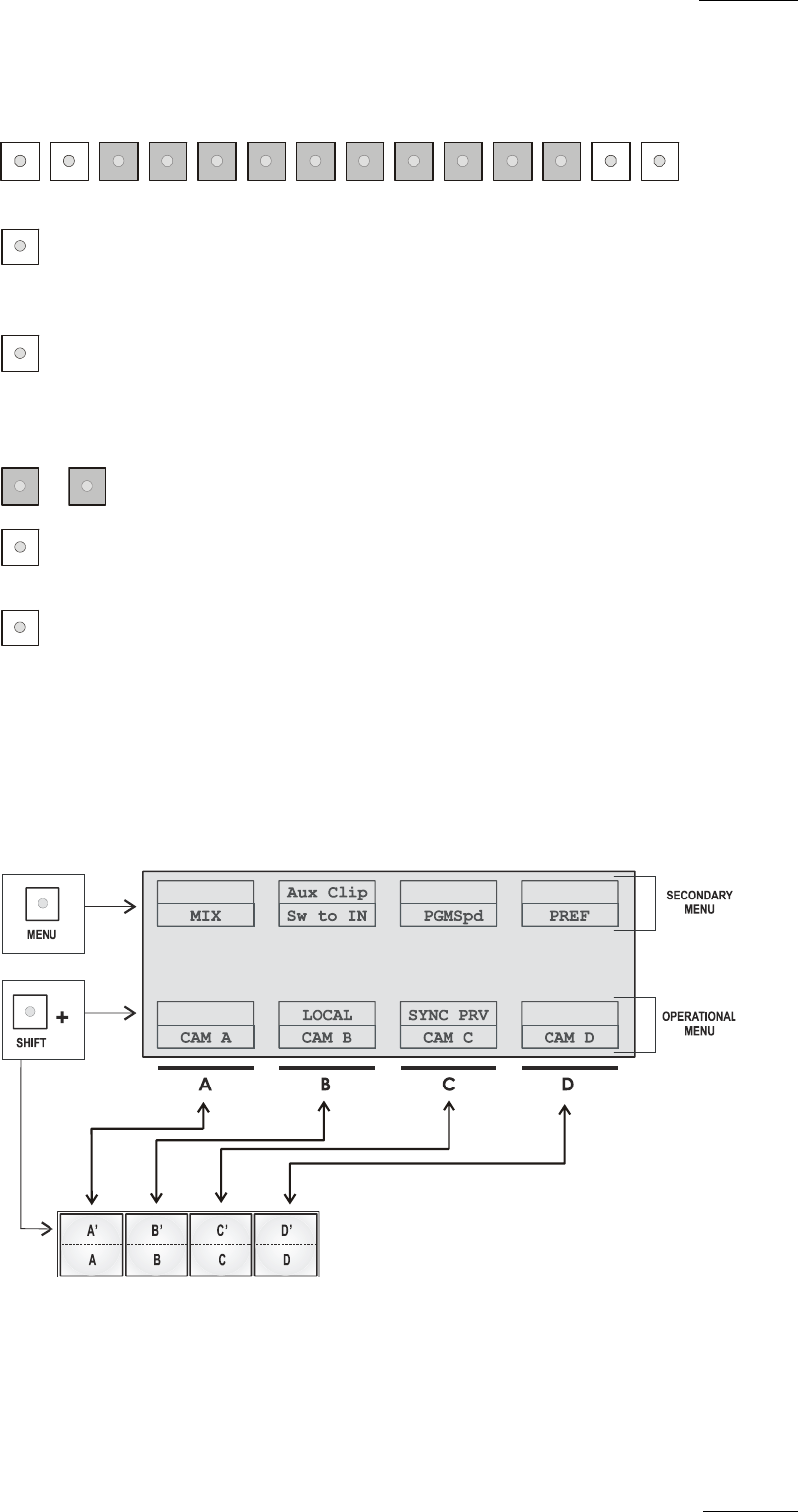

2.4 SOFT KEYS
The soft keys have PRIMARY and SECONDARY functions and are divided into
upper and lower sections.
The LCD display is divided in two menus.
• To access the secondary functions in the operational menu (A’ to D’), press the
SHIFT button.
• To access the secondary menu, press MENU from the remote controller. The
MEN
U
SH I F
T
F1 F1 0
-
CLEA
R
EN TE
R
