13.4.6 HOW TO CREATE LOCAL CLIPS WITH REMOTE RECORD
TRAINS
1. Select the Records mode in the Network menu.
2. Select the remote EVS server in the list.
The LCD display returns to the normal mode
3. Press the RECORD key to select the LIVE mode.
A 2 to 3-second delay to LIVE has been defined to ensure safe operations.
4. Use the JOG key to go in search mode.
5. Change camera angles if necessary. The changing camera angles on
network train will always switch in pause
on the new camera.
Refer to the note below about the remote camera name.
6. Press the IN key to mark your Short IN point of the clip.
7. Search the Short OUT point and press the OUT key to mark it.
8. Select the clip location to store and press the corresponding F_ key.
Note

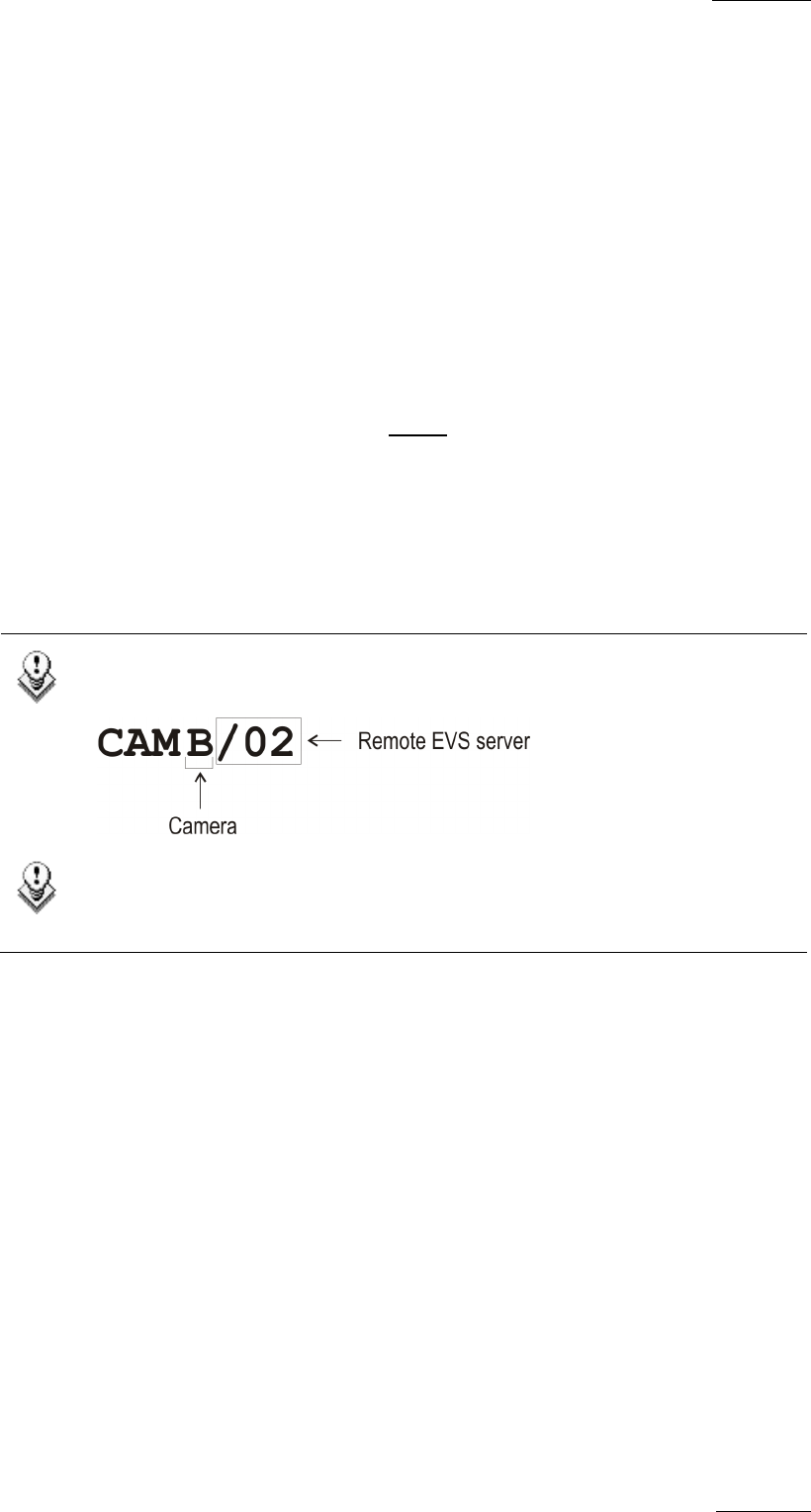

The label of the remote camera is different in order to identify it easily
Note
The key flashes during transfer. When the key lights green, the transfer is
completed and the clip is available for playback from the local system.
