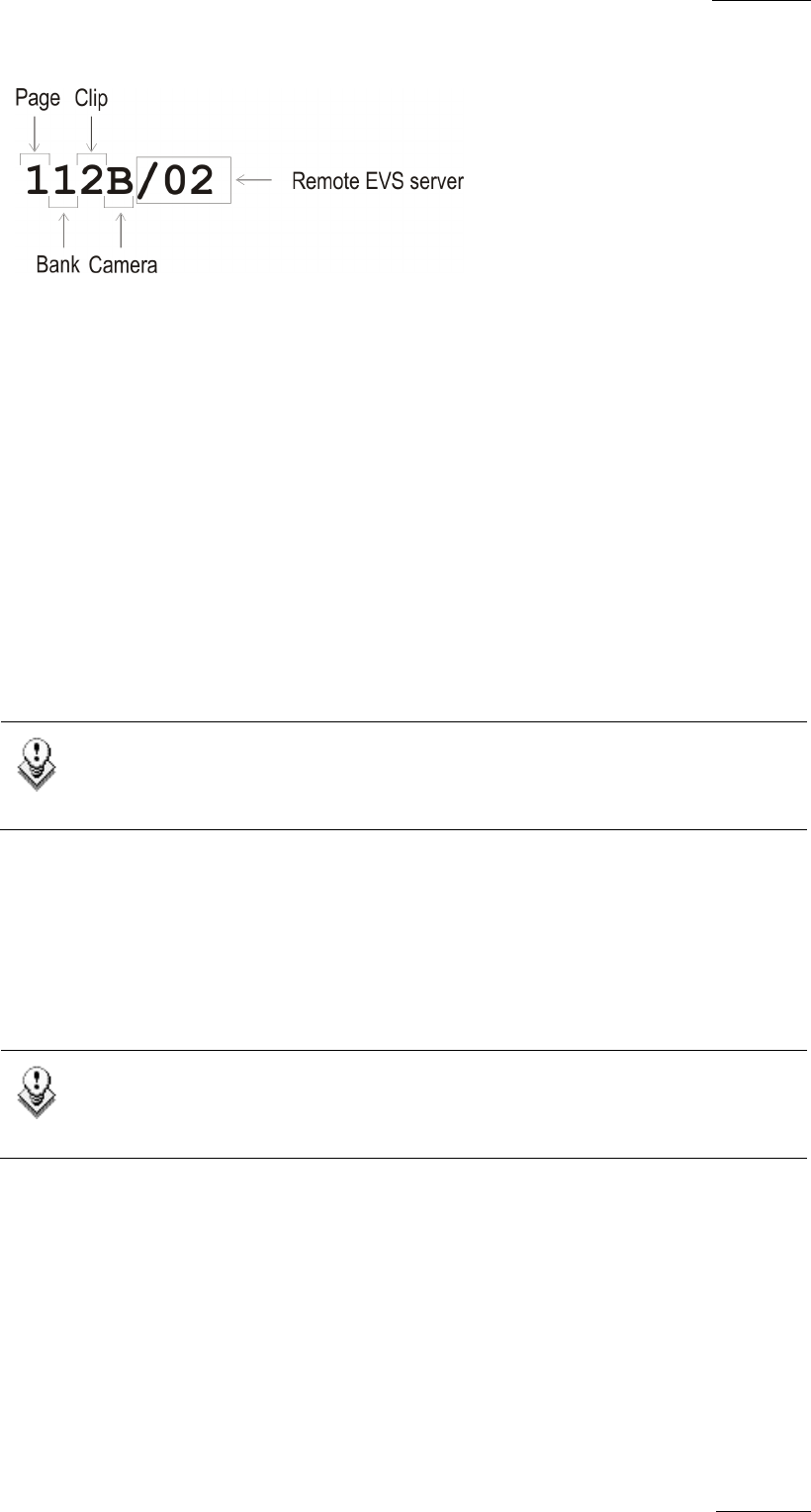

The label of a remote clip is different in order to identify it easily among other
clips:
13.4.2 HOW TO NAME A REMOTE CLIP
1. Select the Clip mode in the Network menu.
2. Select the remote EVS server in the list.
3. Go to the Clip screen on the VGA, all banks of remote system are now
displayed.
4. Select the clip to name.
5. Type the desired name on the keyboard.
6. Press F1 to name the remote clip.
→ In CAM mode, only the camera where the cursor is located is named
→ In CLIP mode, all cameras of the clip where the cursor is located are
named.
Note
To be able to rename a clip on a remote server, the Clip Edit by Network
parameter must be enabled in the Setup menu.
13.4.3 HOW TO MODIFY IN/OUT POINTS OF A REMOTE CLIP
1. Recall the desired clip.
2. Browse inside the clip until you reach the desired frame.
3. Press IN / OUT to mark a new Short IN / Short OUT points.
Note
To be able to trim a clip on a remote server, the Clip Edit by Network
parameter must be enabled in the Setup menu of the remote machine.
