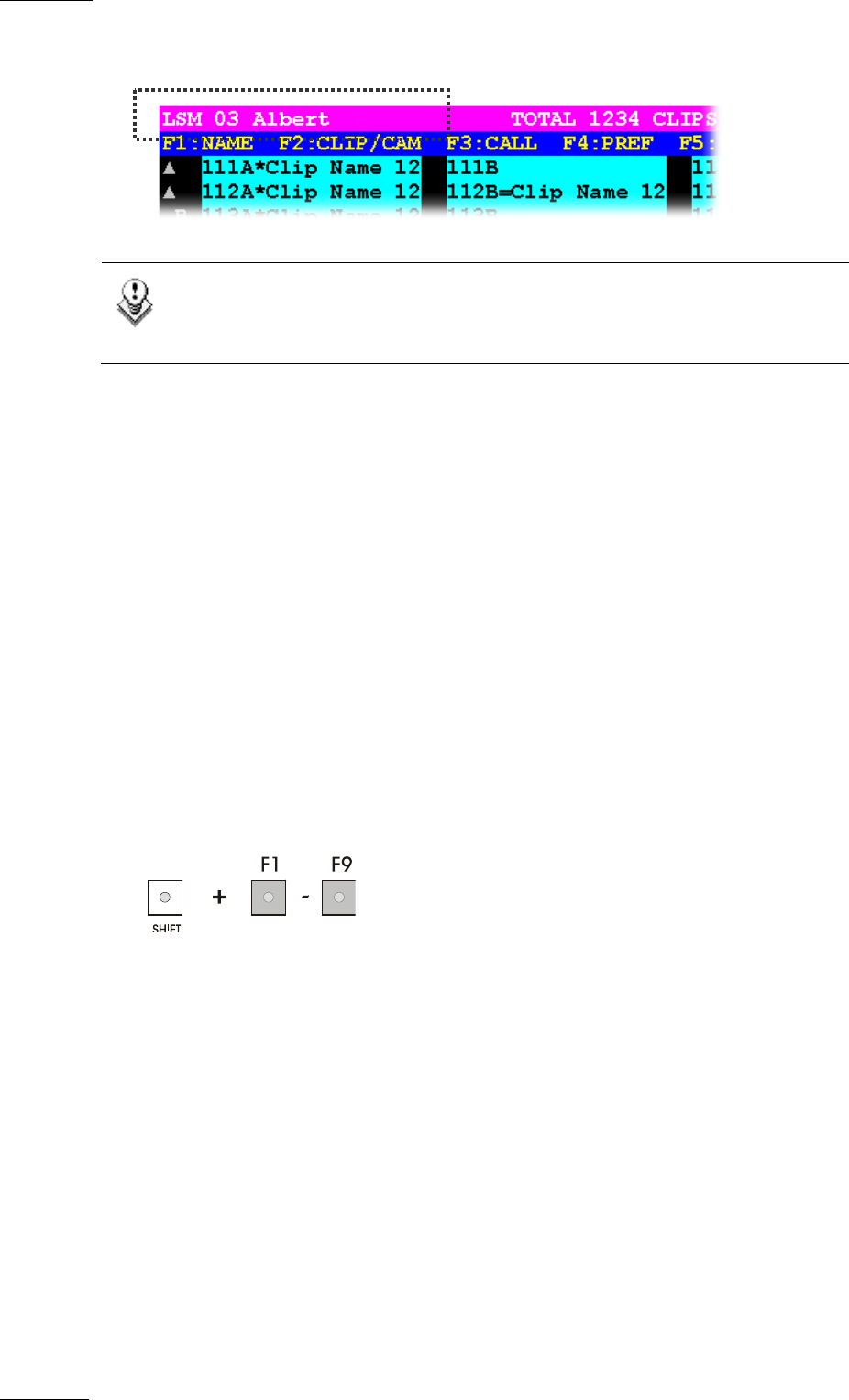

The names of the remote systems are now displayed after the Page and Bank
information and in the Title bar of the Clip screen.
Note
It is possible from the VGA to connect back to the last machine connected
by pressing ALT+<TAB>.
13.4 OPERATIONS
When the remote system is selected, the operation with remote clips or remote
trains is similar to the operations on the local system.
13.4.1 HOW TO RECALL/PLAY BACK A REMOTE CLIP
1. Select the Clip mode in the Network menu.
2. Select the remote EVS server from the list:
The LCD display returns to the normal mode
3. Select the clip page 1, 2, 3, … to 10 (PAGE key).
When selecting a server, it will automatically reconnect to the page and bank
that was last used.
4. Select the bank in which the desired clip is located
5. Choose the clip required (F1 - F10).
6. If all clips are present (from Camera A, B, C and D), they will appear in their
respective locations (Channel A, B, C or D).
