XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
Issue
10.03.A
139

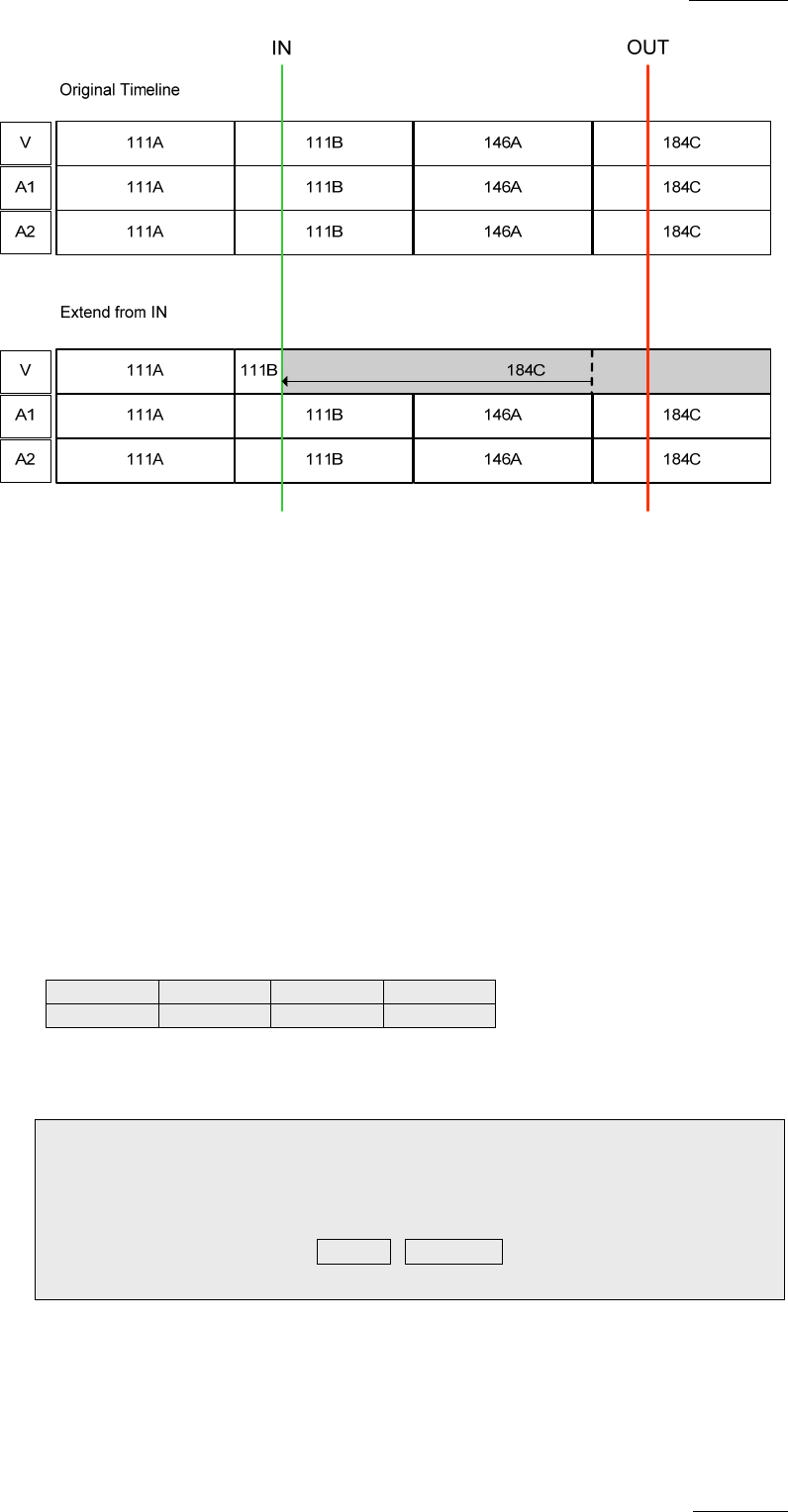

HOW TO PERFORM AN EXTEND
To perform an Extend on the Remote Panel, proceed as follows:
1. Recall the requested timeline by selecting its page (SHIFT + Page + F_ key)
and bank (SHIFT + F10) and the timeline position (F_ key).
2. Press PLST to load the timeline in Timeline Edit mode.
3. Use the jog dial to position on the requested Mark IN point and press the IN
key.
4. Use the jog dial to position on the requested Mark OUT point and press the
OUT key.
‘IN’ and ‘OUT’ are displayed on the OSD.
The Extend option is displayed on the LCD menu:
Video Audio 1 Audio 2 Extend
5. Press the D key (Extend) on the Remote Panel to perform the Extend action.
The LCD display and menu changes becomes the following one:
Extend?
[Menu]: Cancel [Enter] : Confirm
From In From OUT
6. Press the A (Extend from IN) or B key (Extend from OUT) to select the
Extend action.
