12.5 TIMELINE PLAYOUT MODE
12.5.1 ACCESSING THE TIMELINE PLAYOUT MODE
When you load a timeline pressing the PLST key on the Remote Panel, you need
to press PLST a second time to enter the Timeline playout mode.
The first frame of the timeline element following the one on the PGM will be
displayed on the PRV side.
Note
A third selection of the PLST button cues the timeline to the beginning,
displaying the first timeline element on the PGM side and the following
clip on the PRV.
12.5.2 OSD DISPLAY

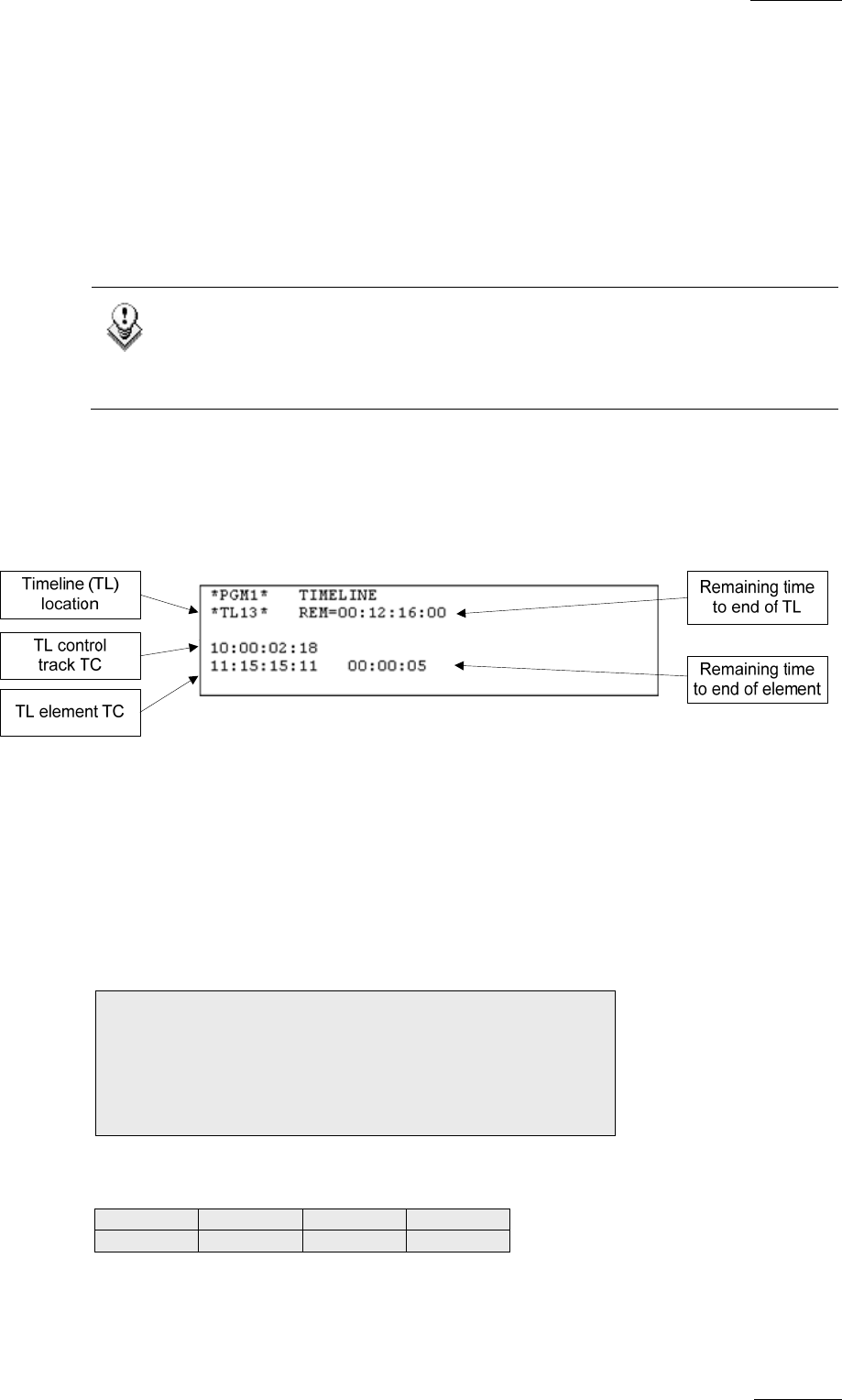

The following information is displayed on the OSD when the timeline is loaded in
Timeline Playout mode:
Additional elements can be displayed on the OSD for timelines created with
IPEdit. For more information on the OSD display with these timelines, refer to the
IPEdit user manual.
12.5.3 LCD DISPLAY
The same information as in the Timeline Edit mode is displayed on the Remote
Panel:
TL13 <NAME> LEFT=00:00:00:00
V * 112B 01/04 00:00:25 11:15:15:11
A1* 113B 02/04 00:07:13 11:15:10:08
A2* 113B 02/04 00:07:13 11:15:10:08
The ABCD Soft keys on the Remote Panel are as follows:
Video Audio 1 Audio 2 Edit
The user can press the D key to access the Timeline Edit mode, or press the PLST
key.
