11.14.2 ACCESSING COMMANDS FOR TRANSITION EFFECTS

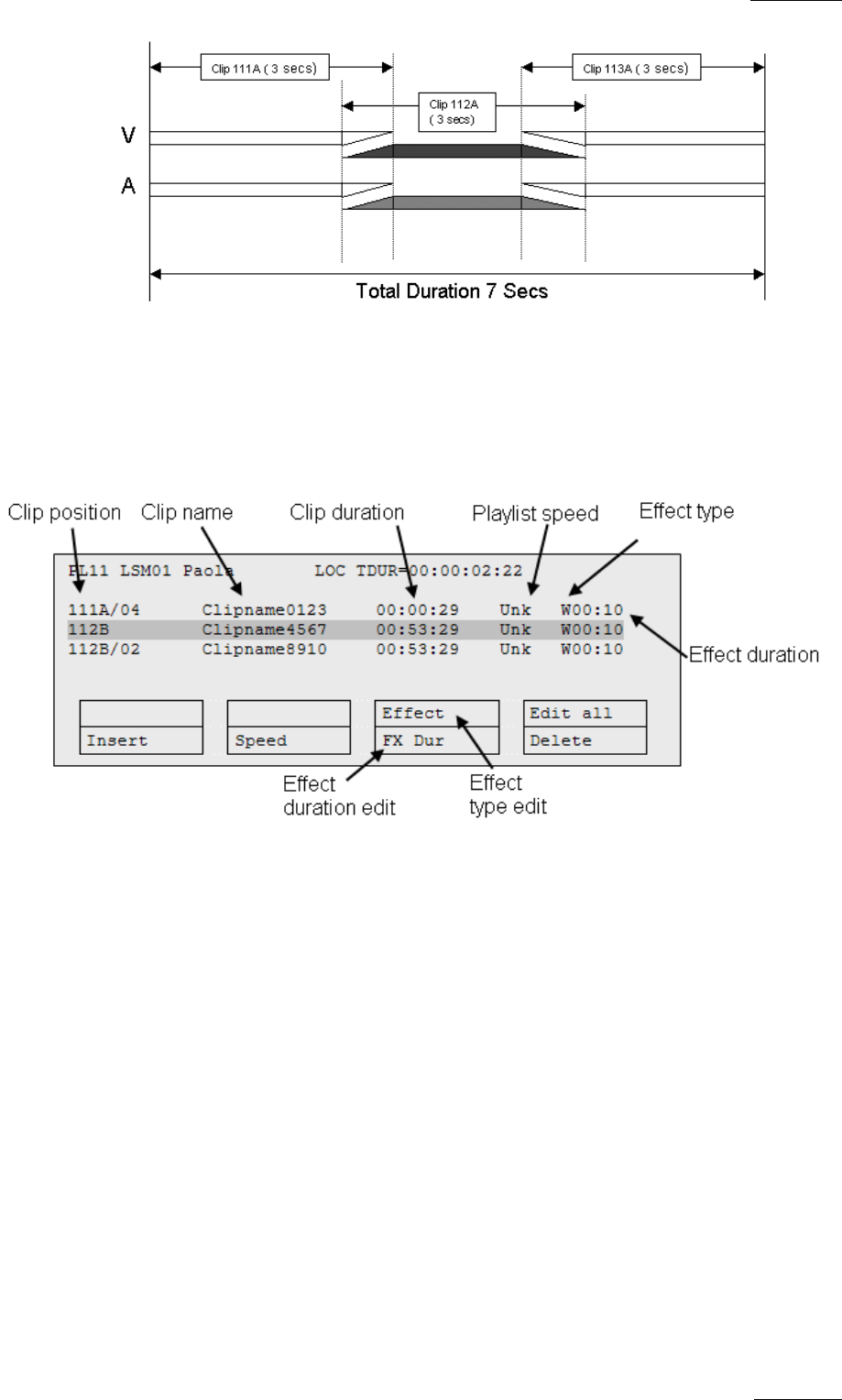

The functions related to transitions effects are available from the main menu of
the Playlist Edit mode, and the effects applied are also displayed on the same
LCD display:
11.14.3 DEFAULT DURATION FOR VIDEO AND AUDIO TRANSITION
This is possible to set a default value for the duration of the video and audio
transitions in the Setup Menu. Once this is defined, each time a clip is entered or
inserted into a playlist, transitions are applied with the default values.
The Vid. Effect duration setting is on page 4.1, function key F1 (range up to
20:00 secs).
The Aud. Effect duration setting is on page 4.1, function key F2. When the split
audio is disabled, the value for this setting is ‘Lock to video’, and the audio effect
duration is the same as the video effect duration.
