XSense
–
Version 10.03
–
Operating Manual
EVS Broadcast Equipment SA – July 2010
Issue
10.03.A
1
Overview
The aim of this manual is to familiarize the operator with the Multicam software for
EVS High Definition and Standard Definition servers, and its Remote Panel, so as
to learn as quickly and efficiently as possible the basic operations.
The CLIP & PLAYLIST MANAGEMENT functions allow the operator to keep up to
5400 clips on a server and of course to replay all or some of them. A playlist
consists of a list of clips (90 playlists can be defined) with video and audio
transitions.
The XNet option networks XNet servers and other machines into a fully integrated
production environment. Any clip, recorded by any server on the network is
available instantly for editing and/or play-out to any other operator.

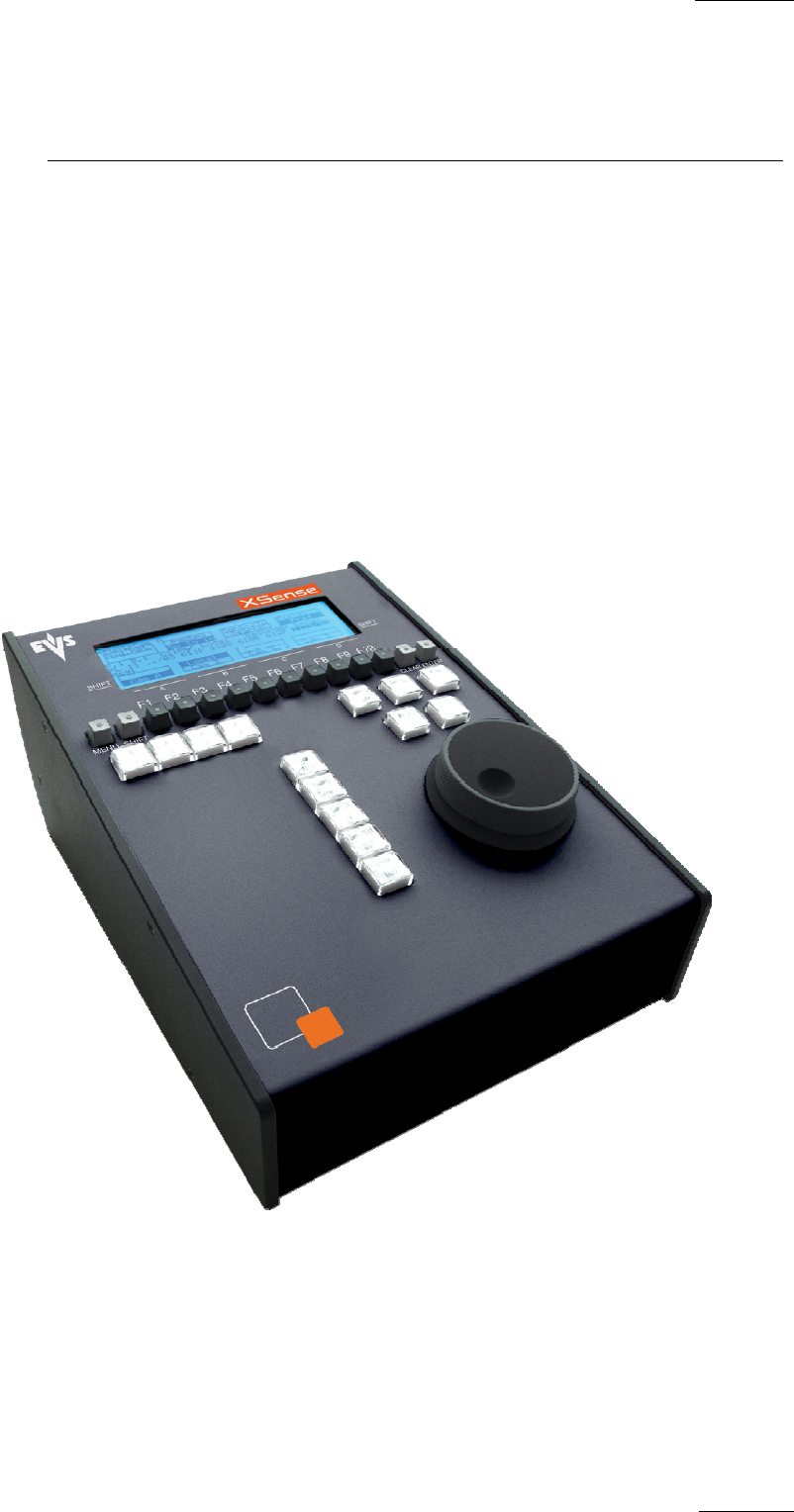

The following screenshot shows an XSense Remote Panel, which is typically used
in combination with an XS server.
