XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
85

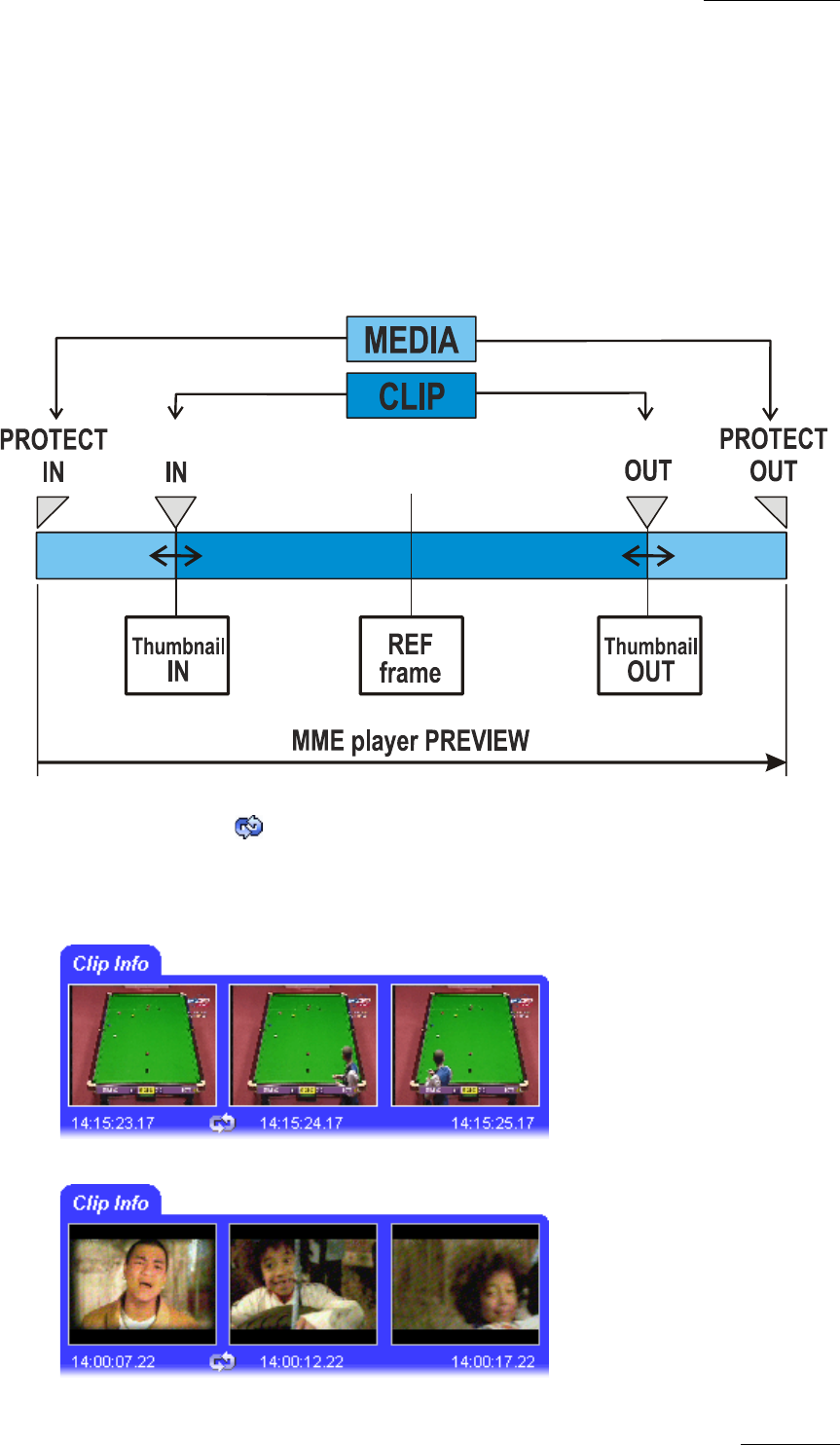

Thumbnails
The thumbnails defined for each file are extracted from the MJPEG files.
The thumbnail shows the following frames from left to right:
• the IN (i.e. SHORT IN) frame,
• the REF frame (automatically defined in the middle of the clip),
• the OUT (i.e. SHORT OUT) frame.
-
The XFile versions previous to the version 1.01.05 do not include the thumbnails creation
process. Use the button to create new thumbnails or to update the current
thumbnails.
The thumbnail format respects the aspect ratio of the different video signals.
SD clips are displayed with 4:3 aspect ratio.
16:9 SD clips are displayed with the usual black strips.
