XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
77

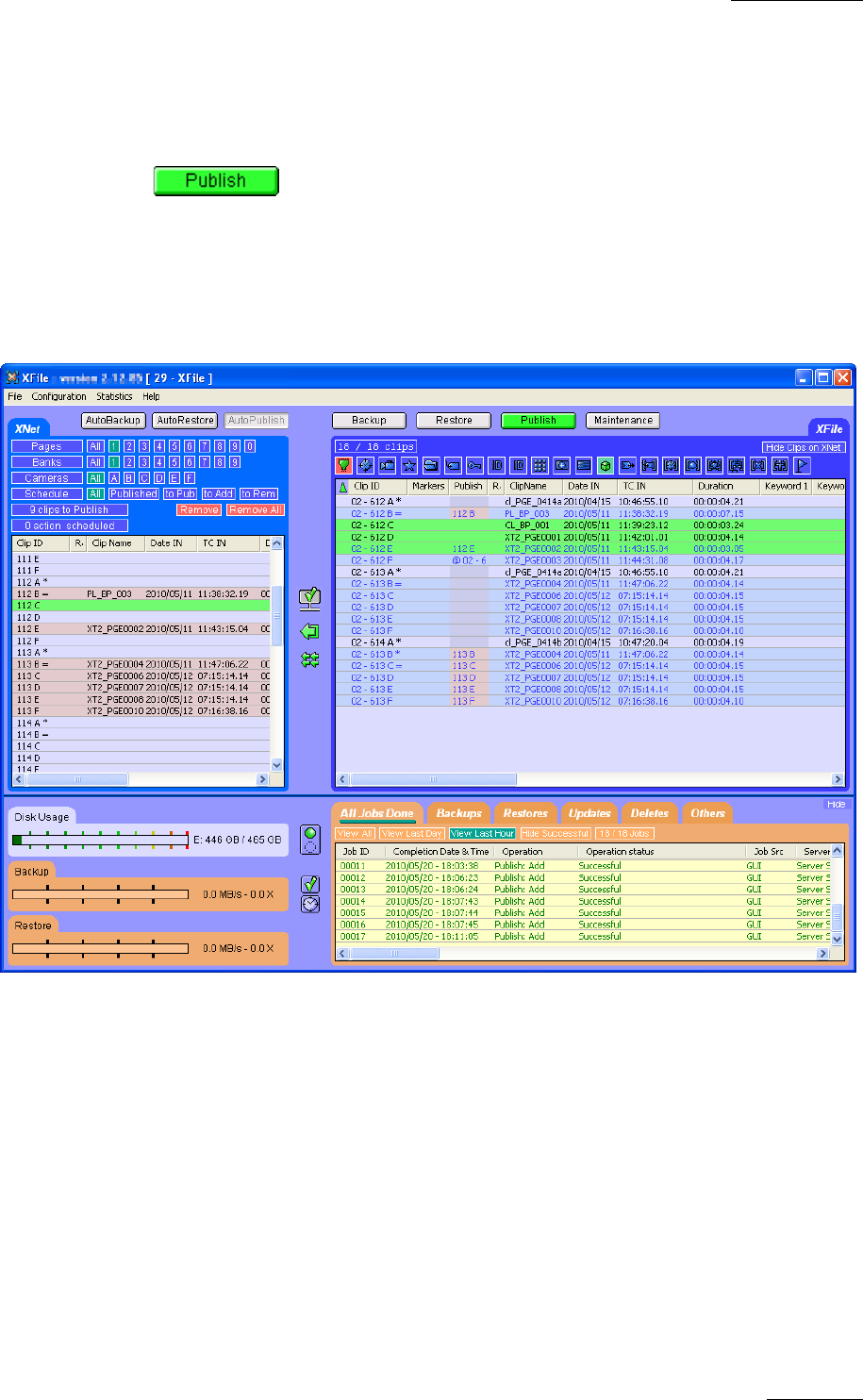

3.8 Publish Mode
Click to enter the Publish mode.
The Publish mode gives a direct access to the clips saved to XFile disks. A batch of clips
can be organized in a ‘page/bank/cam’ structure and can be accessible – for selection
and playback – via the Remote Control panel and/or the VGA of the Multicam, or from the
Clips > XFile node of the IPDirector Database Explorer.
In Publish mode, the counters, the filters and the selection modes are similar to the
Restore mode.
3.8.1 Publish Modes
The following Publish modes are available:
• Fast Publish, which corresponds to the previous Publish mode and disconnects and
re-connects the XFile from the XNet
• Online Publish, which is now the default mode and works without the disconnect / re-
connect process, but which takes more time, especially when the number of clips is
important.
• AutoPublish: refer to section 3.3.4 ‘Tab 4 – Scan Folder’ on page 30.
