XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
67
Note
Other modes (backup, restore and maintenance) are also available during
autobackup: several modes can operate simultaneously.
3.5.2 Autobackup Main Window
The Autobackup main window is divided into several areas. The two main areas are the
XNet list which monitors the XNet activity and the XFile list which displays the contents
of the XFile paths.

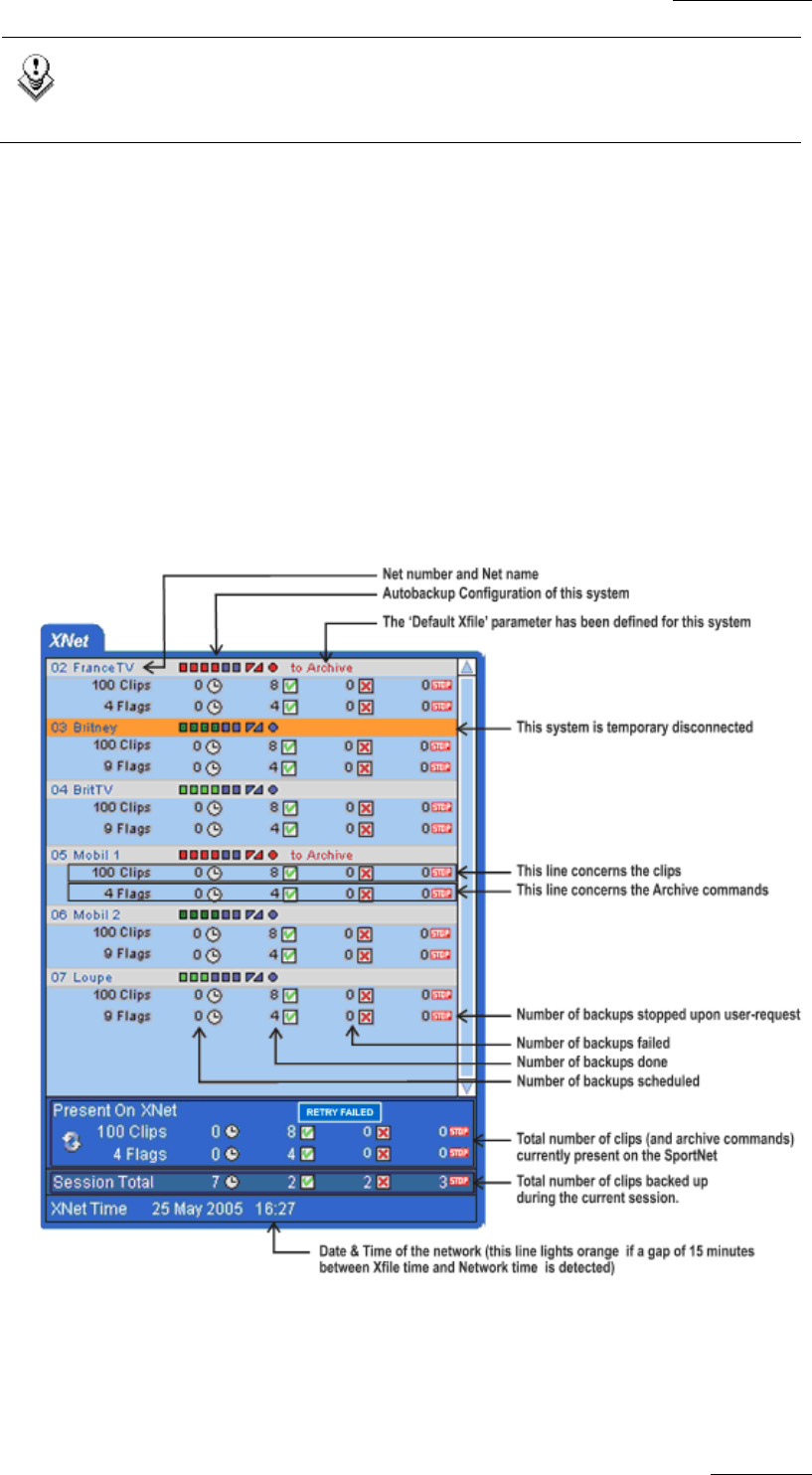

3.5.3 XNet List
In Autobackup mode, the XNet tab gives an overview of the autobackup criteria and on
the clip backup information.
When the Backup mode is activated together with the Autobackup mode, the XNet list is
displayed as described for the Backup mode. Refer to section 3.6.1 ‘XNet List’ on page
68.
