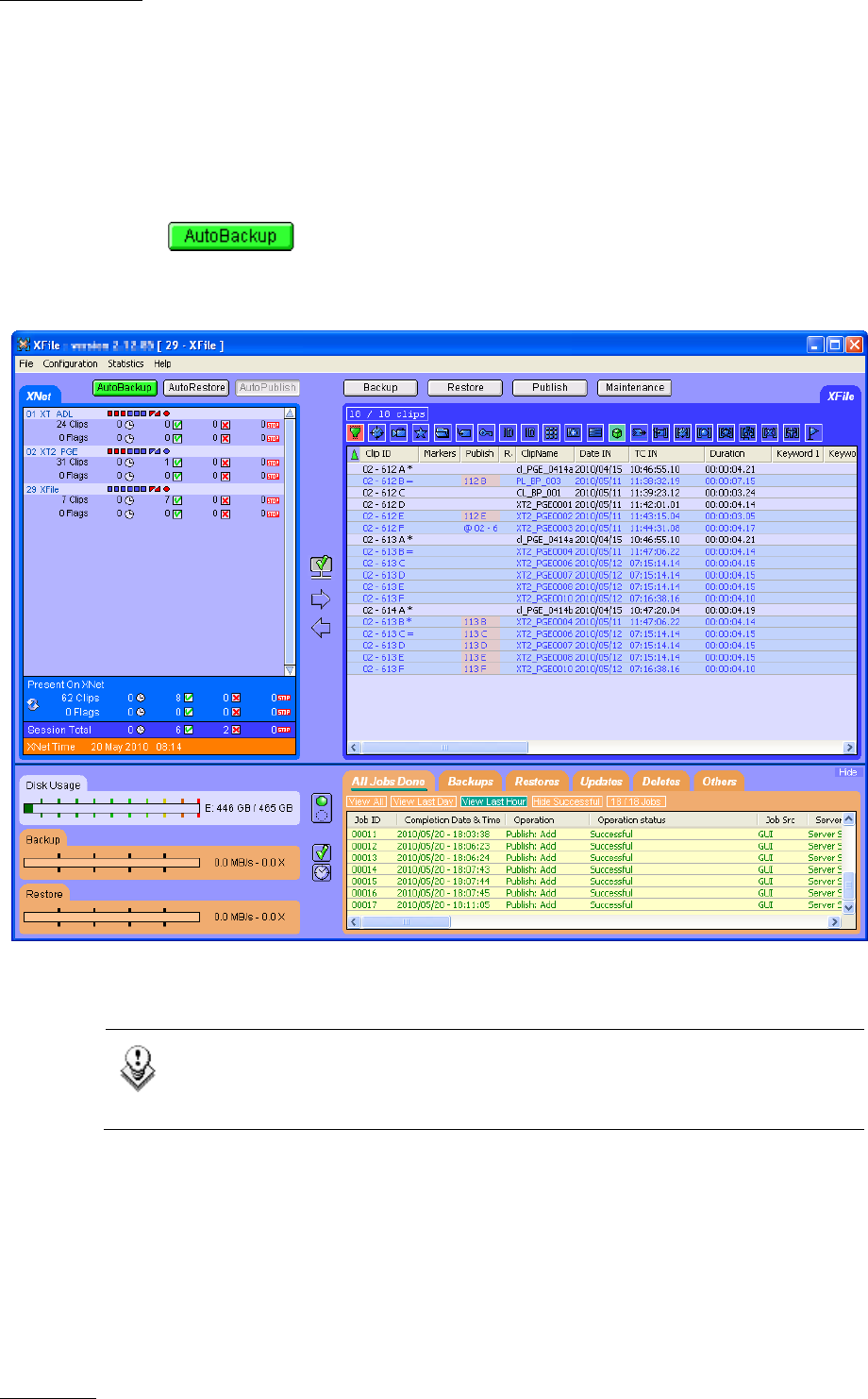

3.5 Autobackup Mode
3.5.1 Purpose
Click to activate the Autobackup Mode. In this mode, the system acts
automatically and backs up all clips according to the criteria defined in the Autobackup
selection window. Besides, this mode is important to take account of the different updates
made during operations.
When the users select the Autobackup mode, the application performs the Scanning
Network process again to retrieve all clips to be backed up on the XNet network.
Note
This mode MUST be enabled for the user's > ARCHIVE commands from the
Multicam systems to be taken into account.
Thanks to the selection list, the autobackup process is an automatic and self-operating
system. When a clip is created on one of the selected servers, a copy is automatically
transferred to XFile. The XFile operates with the lower priority on the network, this means
that the normal operations of other servers are not affected by the XFile activity.
If the cameras/systems selection needs to be modified, the autobackup mode must be
disabled before entering the Session Configuration window.
