Issue 2.19.A
XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
58
OK/Cancel
Click OK to confirm your selection and to quit the dialog box. The new VarID appears in
the filter field.
Click Cancel to come back to the main XFile window without applying any VarID filter.

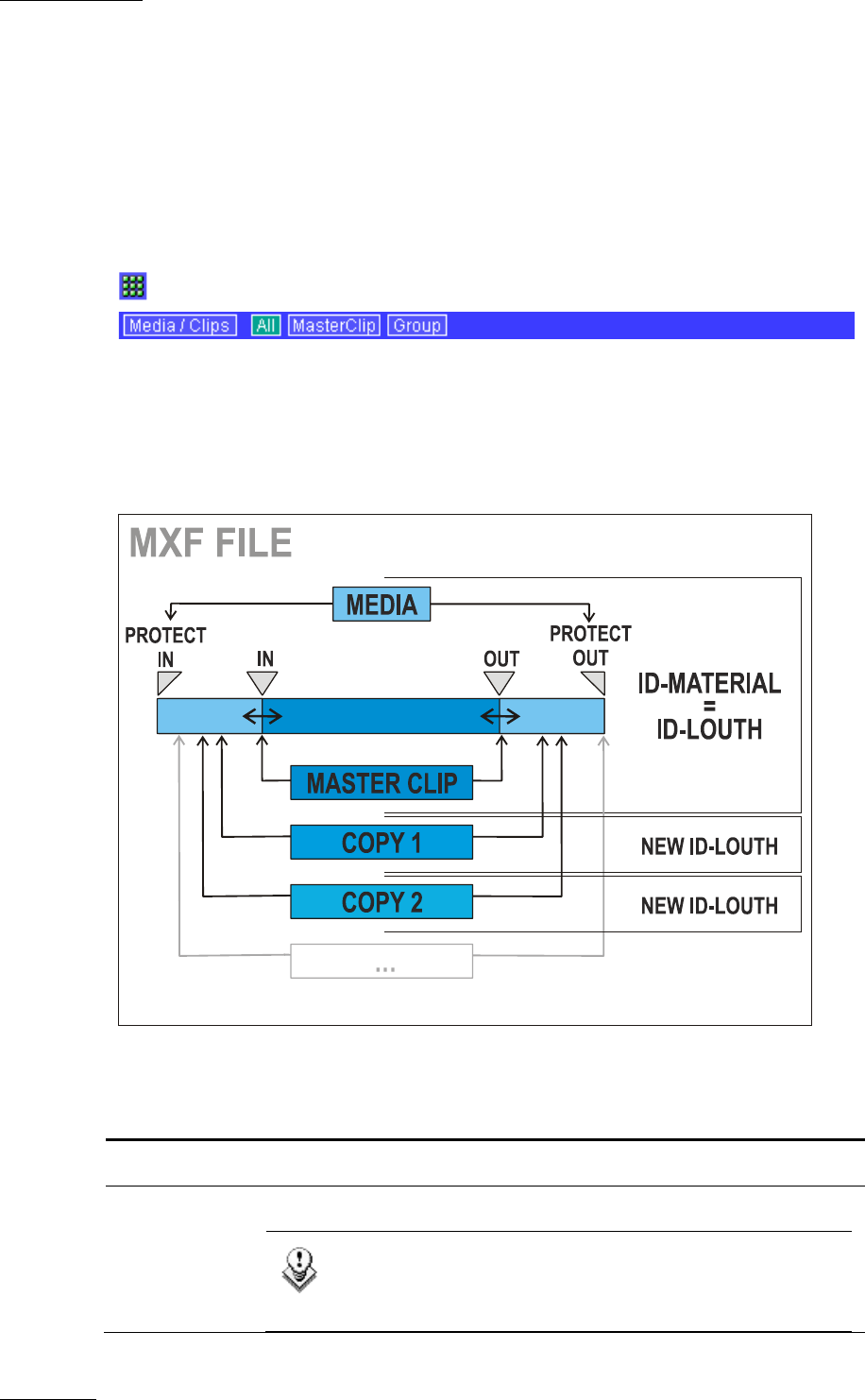

Media / Clips
The MXF file is the file containing all data related to a common audio/video data.
The first clip created with this A/V data is called the Master Clip and has the particularity
to get the same code for the ID-material and for the ID-louth.
All clips ensued from this masterclip, either by copy, or by update, or by modifying the IN
(i.e. short IN) or OUT (i.e. short OUT) point are linked to the MXF file and a different ID-
louth is defined for each of them.
The following options are available for selection:
Option Description
ALL Displays all the clips
MasterClip Displays only the Master Clips
Note
This filter is helpful when restoring clips, because it will only
transfer the original clips, and skip the copies.
A/V
