XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
55
OK/Cancel
Click OK to confirm your selection and to quit the dialog box. The new clip names appear
in the Filter field.
Click Cancel to come back to the main XFile window without applying any ClipName
filter.
Keywords

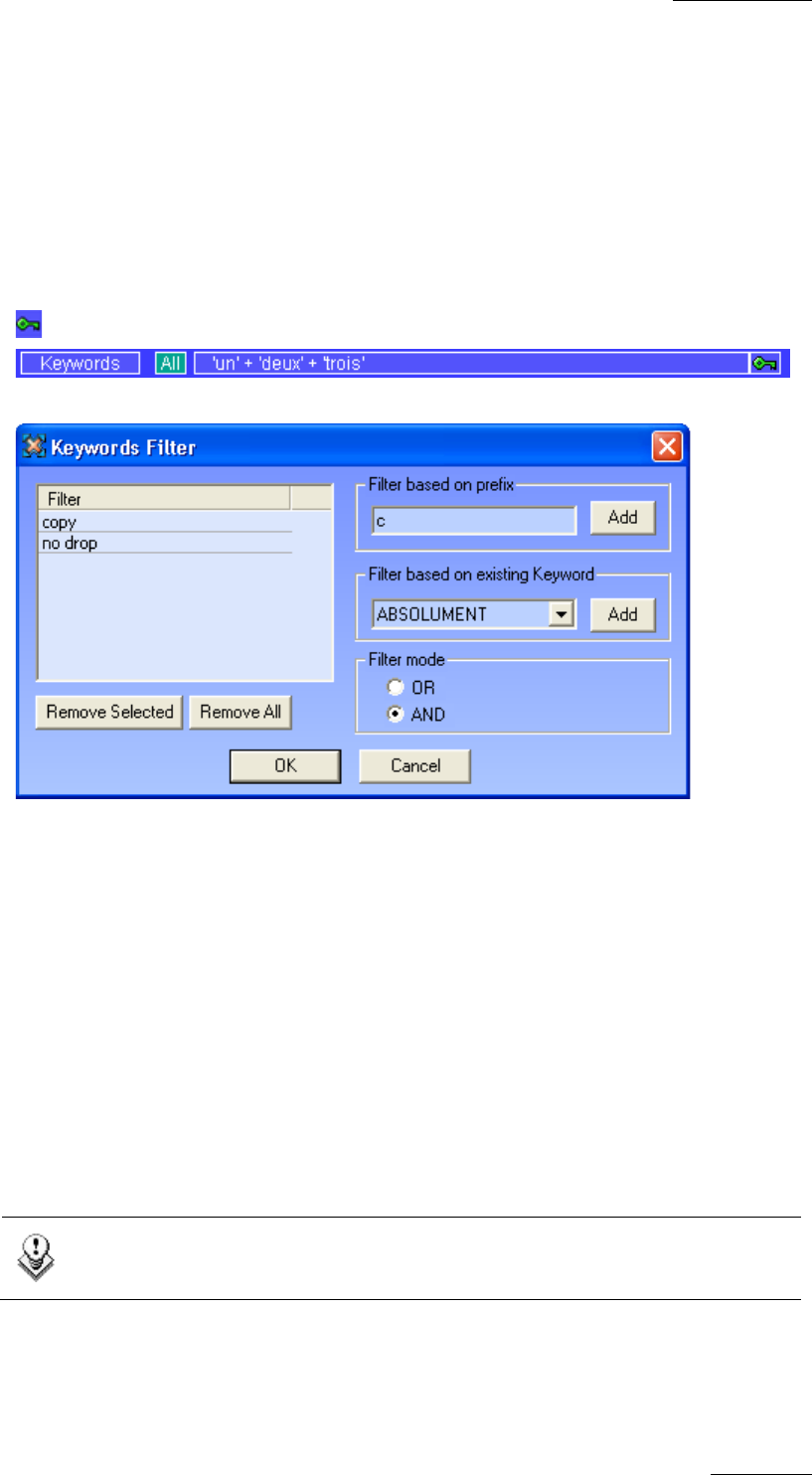

Clicking on the icon on the right side opens the following dialog box:
Filter Based on Prefix
The Filter based on Prefix field allows defining a quick filter based on the first
character(s) of a keyword.
When you click the Add button to add the prefix defined to the Filter list, the system adds
automatically a "*" sign after the prefix. This helps the user distinct the prefixes and the
full keywords in the Filter list.
Filter Based on Existing Keyword
At startup all keywords assigned to the clips are extracted from the MXF files and are
listed in the Filter based on existing Keyword field.
Select a keyword from the list and click Add to fill out the filter list.
Note
The number of keywords/prefix in the list is restricted to 5 items.
