Issue 2.19.A
XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
54
Clip Names

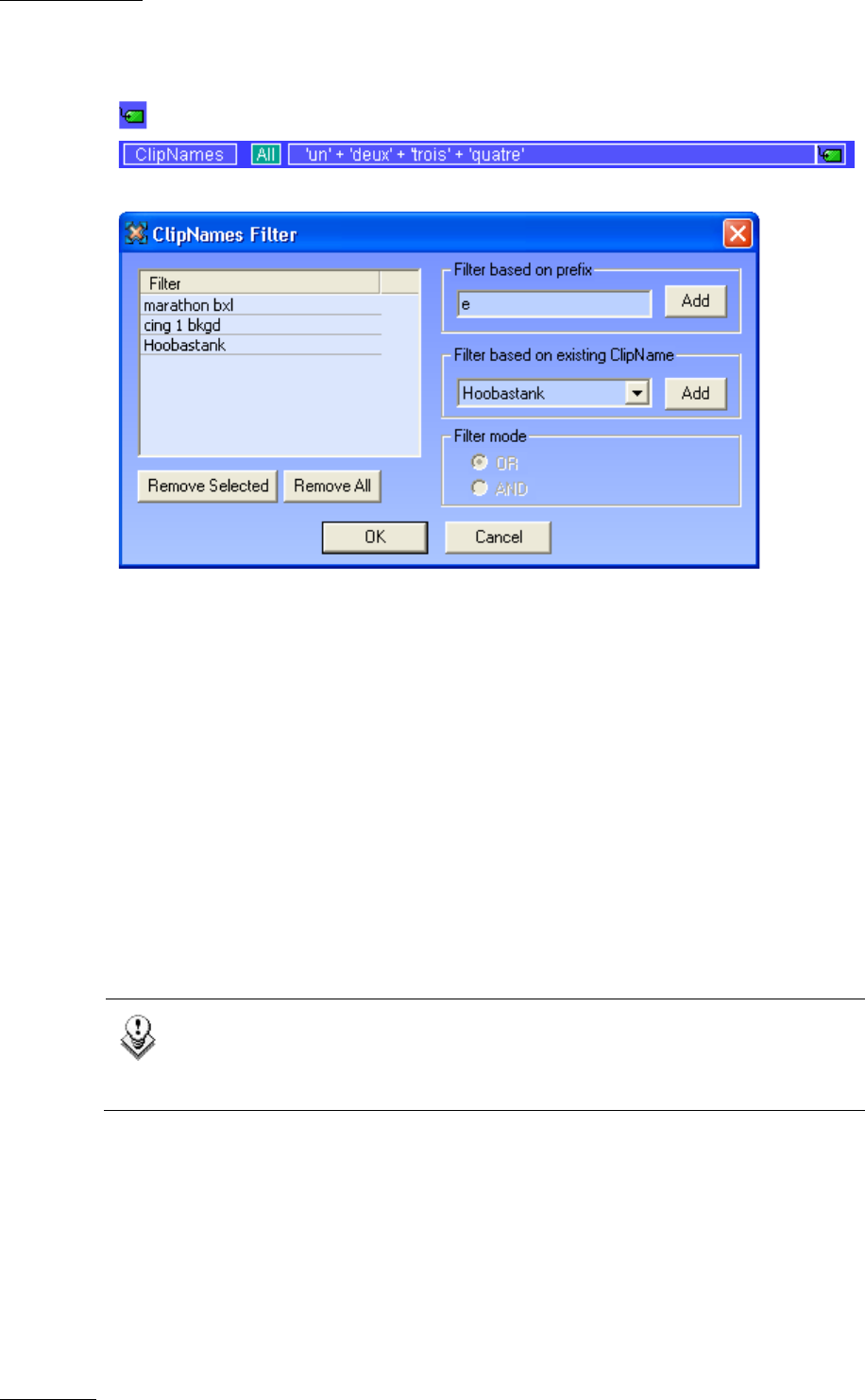

Clicking on the icon on the right side opens the following dialog box:
Filter Based on Prefix
The Filter based on Prefix field allows defining a quick filter based on the first
character(s) of a clip name.
When you click the Add button to add the prefix defined to the Filter list, the system adds
automatically a "*" sign after the prefix. This helps the user distinct the prefixes and the
full clip names in the Filter list.
Filter Based on Existing ClipName
At startup, all clip names assigned to the clips are extracted from the MXF files and are
listed in the Filter Based on Existing ClipName field.
Select a clip name from the list and click Add to fill out the filter list.
Note
The number of clip names/prefix in the list is restricted to 5 items.
The filter mode is not selectable.
Remove Selected
In the Filter list, select an item and click Remove Selected to cancel the selection of this
clip name.
