XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
53
You will find below explanations on how to perform the most important actions in this
dialog box, i.e. including and/or removing one or more folders from the filter selection:
• To add a folder to the Filter list, select the folder from the list and click the Add
Selected Folder button.
• To include subfolders of the selected folders displayed in the Filter list, select the
Include SubFolders check-box.
• To remove a folder from the Filter list, click the Remove Selected button.
• To remove all folders from the Filter list, click the Remove All button.
• Click OK to confirm your selection and quit the dialog box. The folders appear in the
Filter field, in the main XFile window.

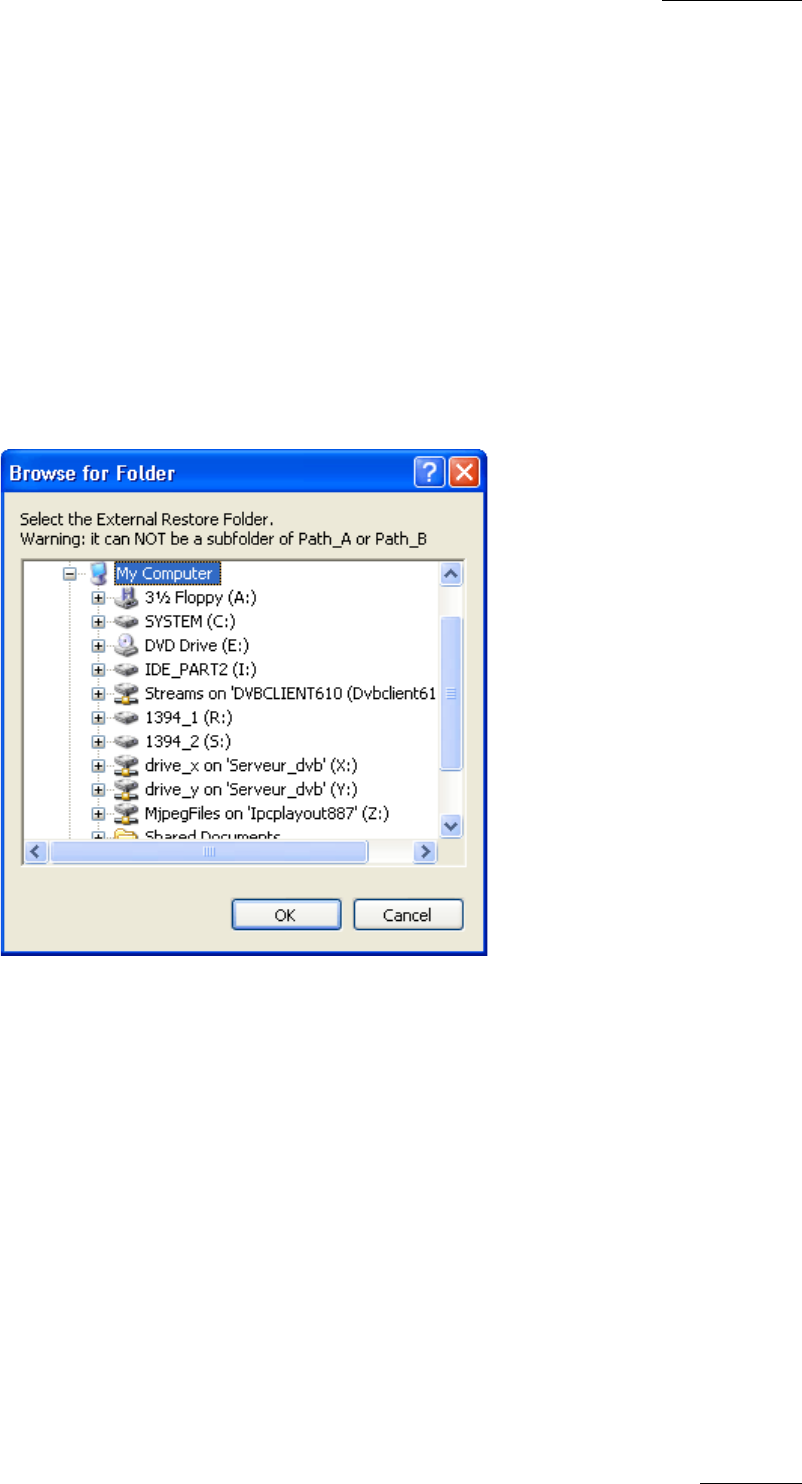

In the External Restore Folder field, clicking on the Folder button on the right side
opens the following dialog box:
Only one folder is available for selection. This folder cannot be included into the XFile
paths.
Click on one folder, click OK to confirm your selection and to quit the dialog box. The
label of the selected folder appears in the Filter field.
The new folder is scanned and its content appears in the XFile list.
