XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
45
3.4 User Interface
3.4.1 Overview of the main Window

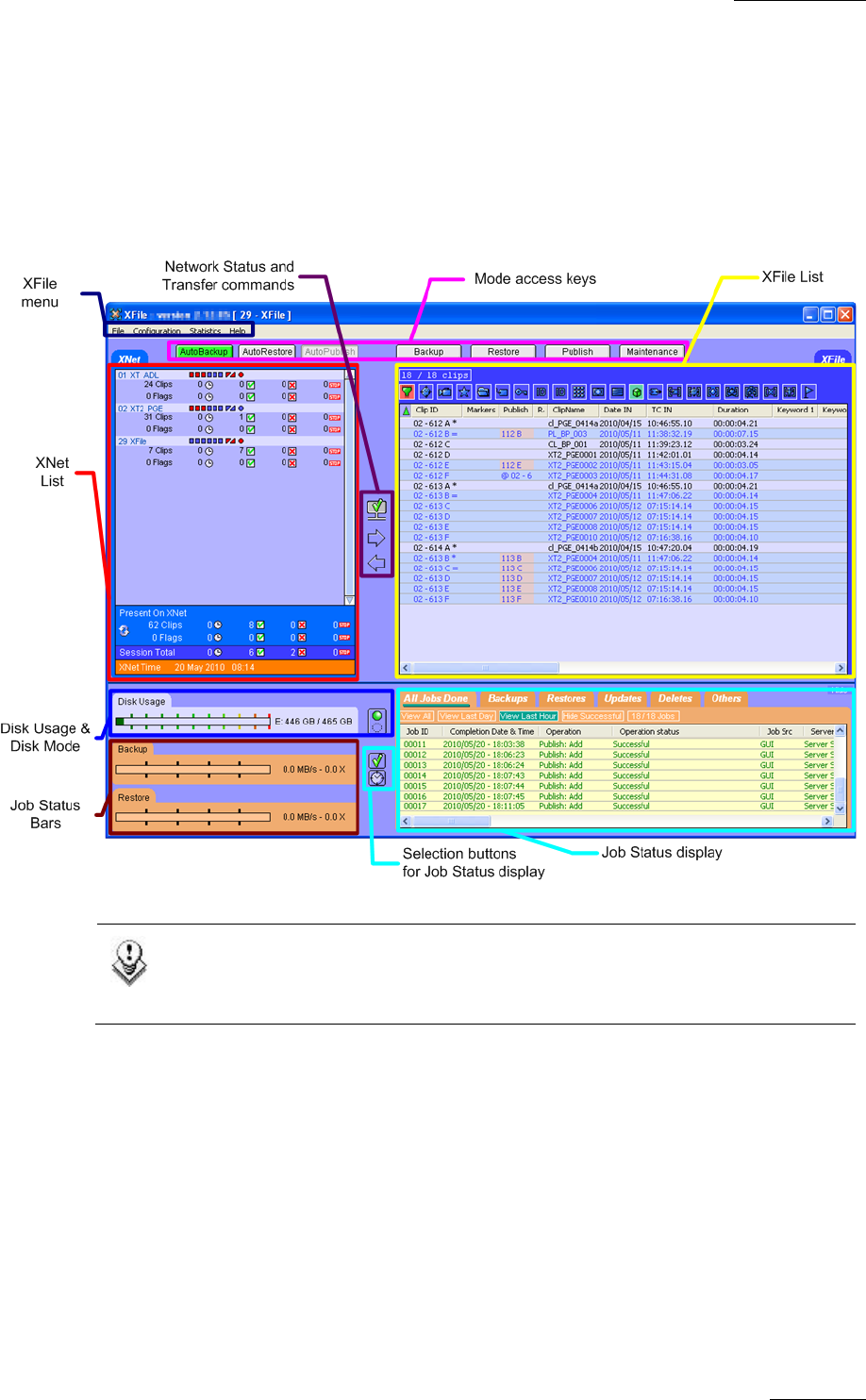

The screenshot below shows the various areas of the XFile main window.
Note
The AutoRestore and the AutoPublish modes can be activated from this main
window.
Most of the user interface elements are common to the different modes of XFile use:
Network Status, XFile List, Disk Usage, Disk Mode, Job Status Bars, Job Status Display
and Selection Buttons. They are described in the current section.
User interface elements specific to each mode are described in the corresponding
sections: Transfer commands, XNet List.
