Issue 2.19.A
XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
30

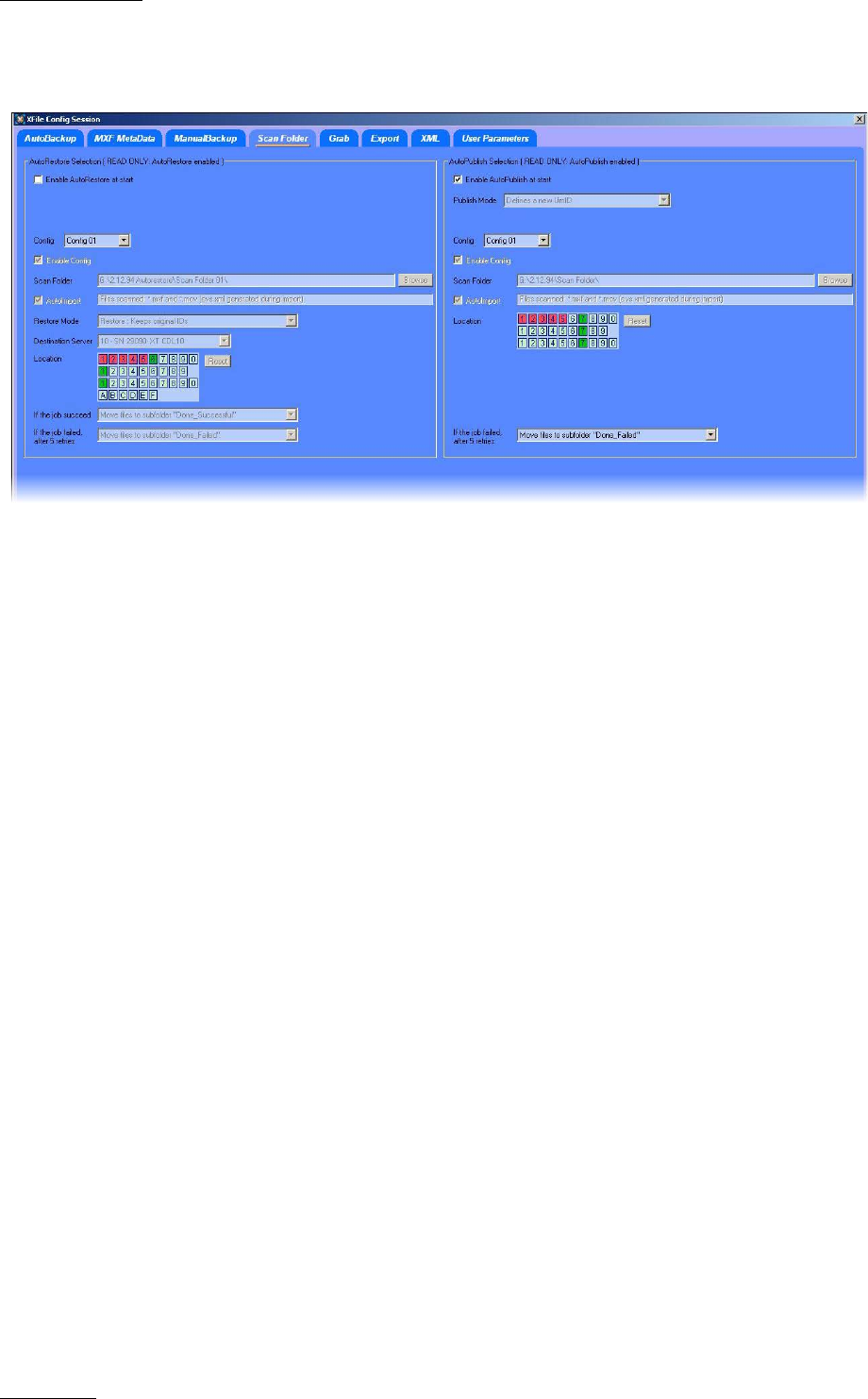

3.3.4 Tab 4 – Scan Folder
Auto Restore
The Auto Restore function enables the automatic restore or copy of files from a folder to a
defined location on an EVS video server. This is done through the GBE or the SDTI
network.
The AutoRestore Mode can be activated from the main XFile window by clicking the
AutoRestore button.
Enable AutoRestore at Start
If the Enable AutoRestore at Start box is selected, the AutoRestore Mode will be active
as soon as XFile is started.
Enabling Configuration
Up to 5 different configurations can be pre-defined. To do so, select a configuration
number in the Config field, fill in all the other fields and click OK.
To enable one of these configurations, select it the Config field, select the Enable
Config box and click OK. Some or all of the predefined configurations can be enabled.
Scan Folder
This field defines the folder to scan for backup files to be restored. It must differ from the
XFile data path.
