XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
25
The clips displayed in a red line will not be taken into account by the Autobackup criteria
and the clips displayed in a green line will be backed up when starting the Autobackup
mode. The selected record will be displayed on a blue background.
The message box in the lower part of the screen displays the details of the clip selected.

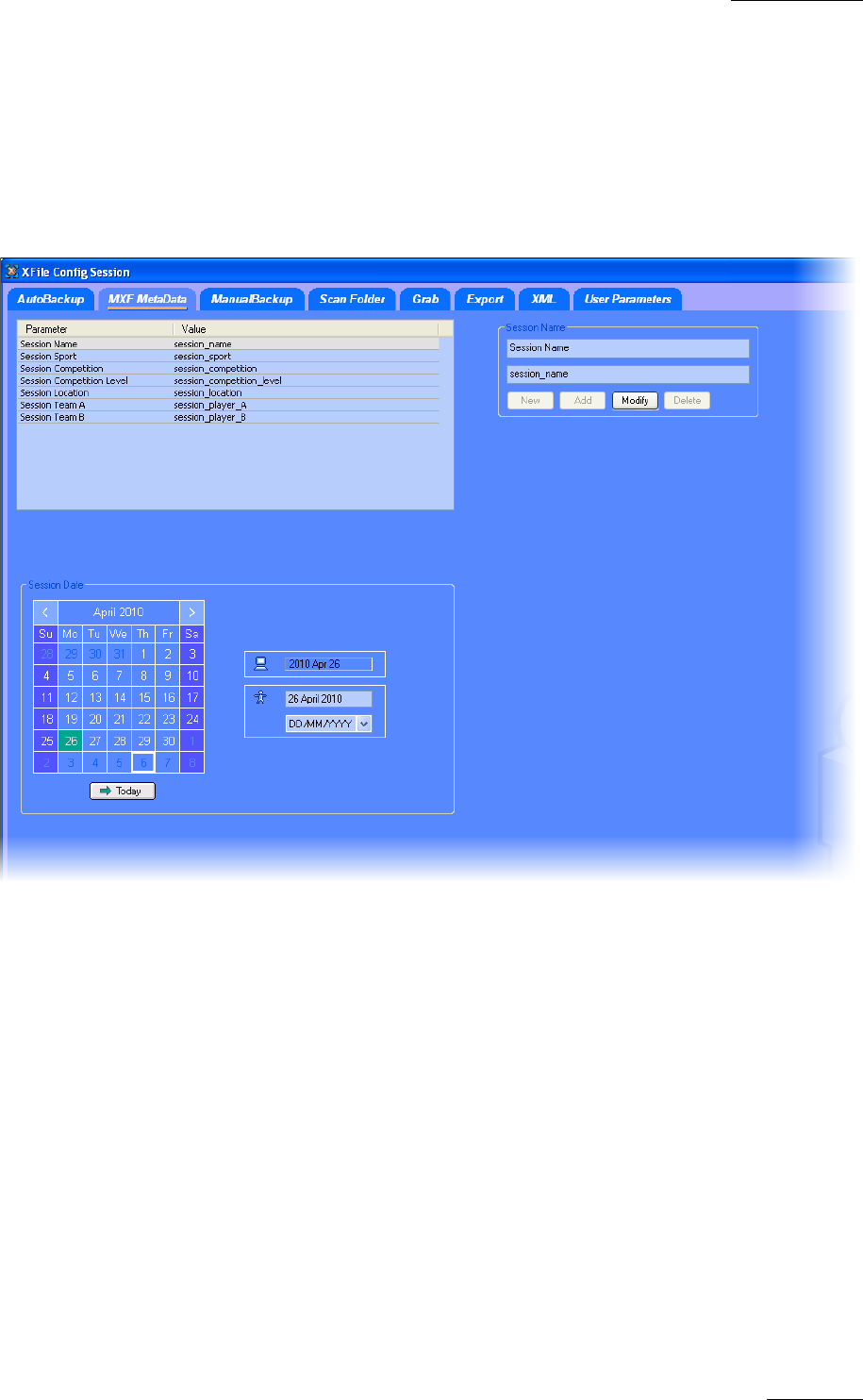

3.3.2 Tab 2 – MXF Metadata
This area displays the current parameters and values saved to the descriptive metadata
of the MXF file for the open session.
How to Modify the Values for MXF Metadata for
the Session
To modify the values assigned to a given parameter for the open session, proceed as
follows:
1.
Click the value to modify in the left table.
The value appears in the text field edition in the Select a Parameter group box.
2.
Modify the value in the second field of the group box.
3. Click the Modify button to confirm the changes.
