XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
11

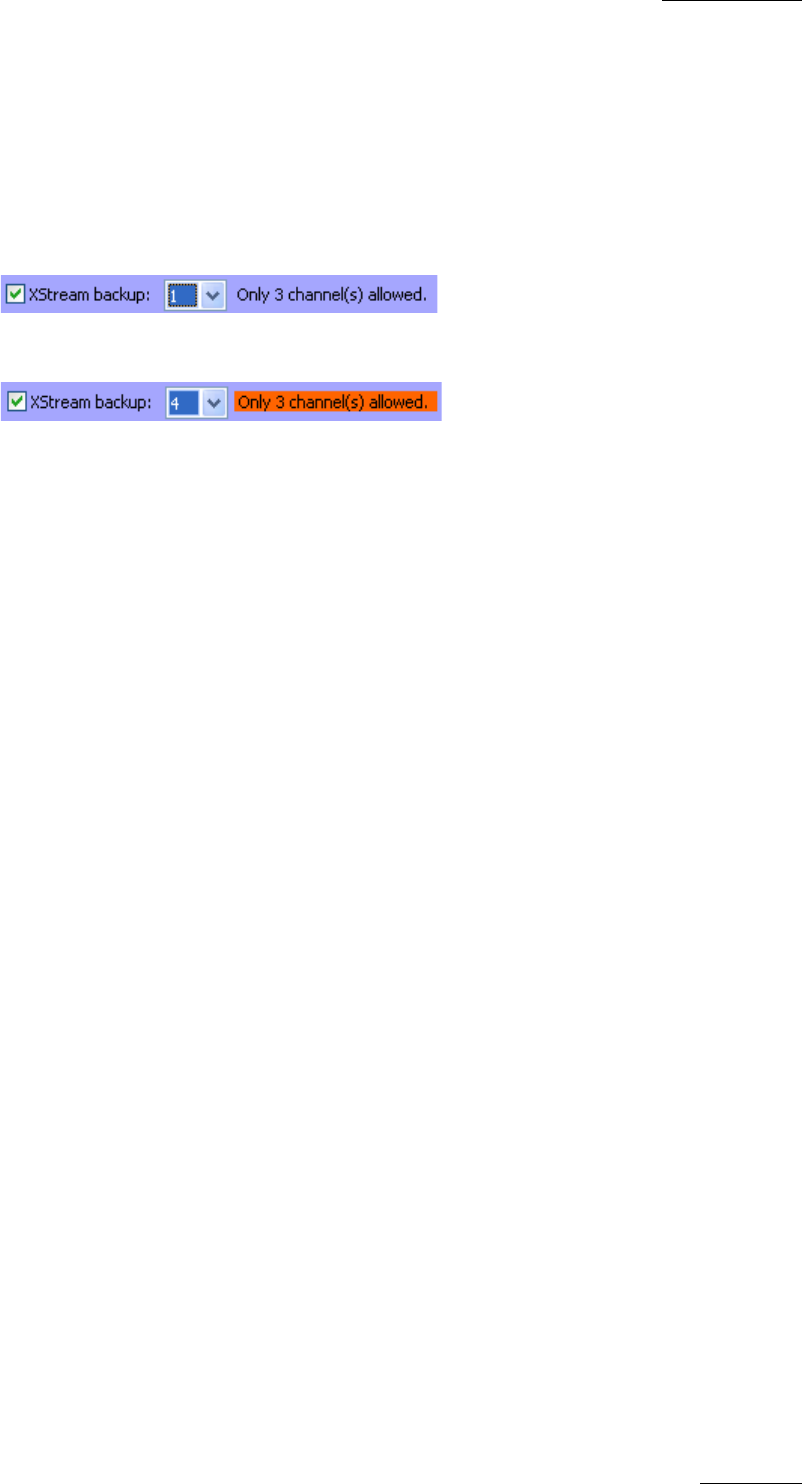

XStream Backup
Selecting this check box will enable the backup of record trains by XStream.
You also need to select the number of channels to assign to this function with the drop-
down list on the right of the check box. Possible values are 1, 2, 3, 4 and 6.
Taking into account the backup functions selected above in the dialog box, the
application displays the maximum number of channels which can be assigned to the
XStream backup on the right of the drop-down list.
This information is highlighted in red when the number of channels assigned is higher
than the maximum supported number.
If you assign more channels than supported in the defined configuration, the system will
automatically adapt the number of assigned channels when the configuration is saved.
Available Channels
Read-only display of the available channels depending on the backup functions selected
in the dialog box.
OK
Clicking the OK button will confirm and save the defined configuration.
Cancel
Clicking the Cancel button will cancel the changes and brings the users back to the XFile
Config System window.
3.1.4 Storage Area
Disk mode
The Disk Mode defines the maximum number of disks, or paths, which can be used to
save the backup files. One to 4 disks can be selected.
Refer to section ‘Disk Writing Mode’ on page 28 for additional information.
Path A / B / C / D
This specifies the destinations to save the backup files. Depending on the Disk mode
selection, up to 4 paths are active for modifications.
