Hard Disk Configuration
EVS provides the following hard disks. The table below specifies the hard disk reference,
the capacity as well as information on how to configure it in master mode:
Hard Disk Capacity Configuration
Western Digital WD 2500 250 GB No jumper
Maxtor MaXLine PRO
7H500RO
500 GB Jumper on the left
Seagate ST3500 641 AV 500 GB Jumper on the left
Seagate ST3750 640 AV 750 GB Jumper on the left
Should you want to use another disk type, refer to the hard disk data sheet to configure it
properly as a master.

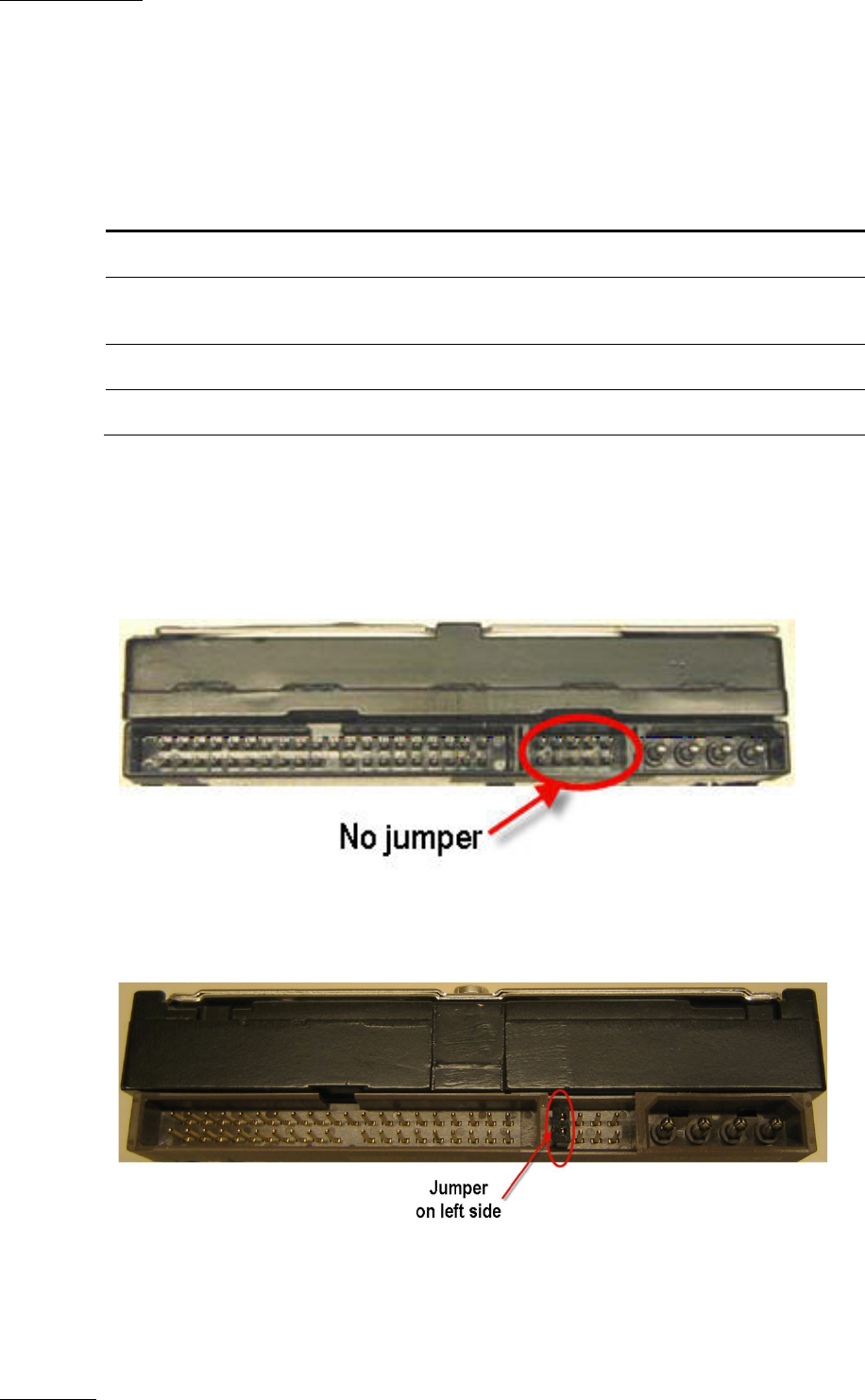

Western Digital WD 2500 (250 GB)
Maxtor and Seagate hard disks
