Installing a New Hard Disk
The aim of the following procedure is to describe how to place and format a new storage
hard disk into an XF2. It is divided into three parts:
1.
Mounting the Disk into the Carrier
2.
Creating a Partition on the Storage Disk
3.
Disabling the Disk Indexing
Mounting the Disk into the Carrier
1.
Configure the hard disk in Master mode. For more details, see the section ‘Hard
Disk Configuration’, on page 182.
2.

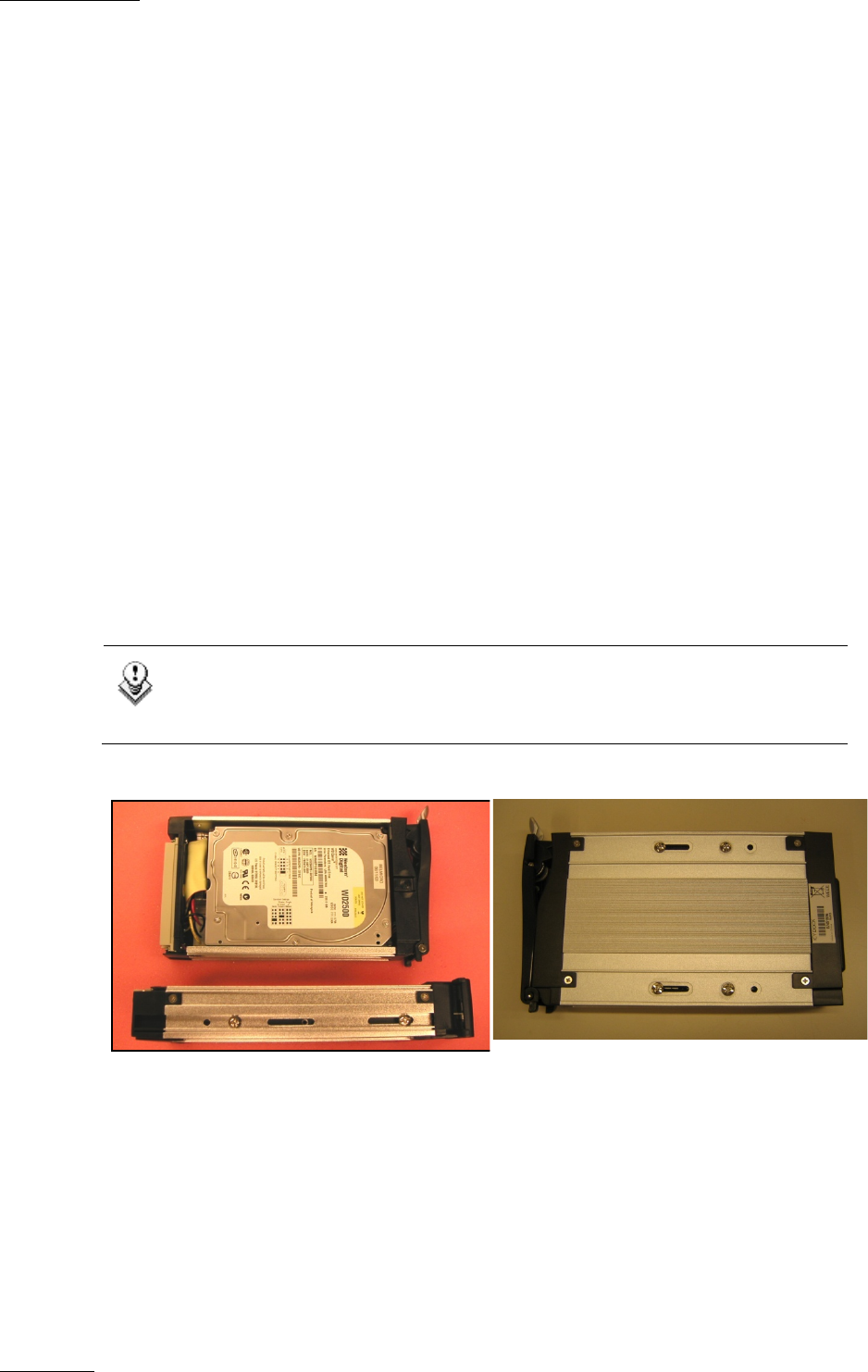

Connect the carrier internal IDE cable and place the hard disk into the disk tray,
fixing it with the four screws (either on the side or on the underside of the canister
depending on the model: see pictures below).
Note
EVS strongly recommends to apply some glue, like the Loxeal Engineering
Adhesive (medium thread locking), on the screw-thread.
3.
Place the disk tray cover, and then insert it into the XF2.
