Audio Track Selection and Vumeters

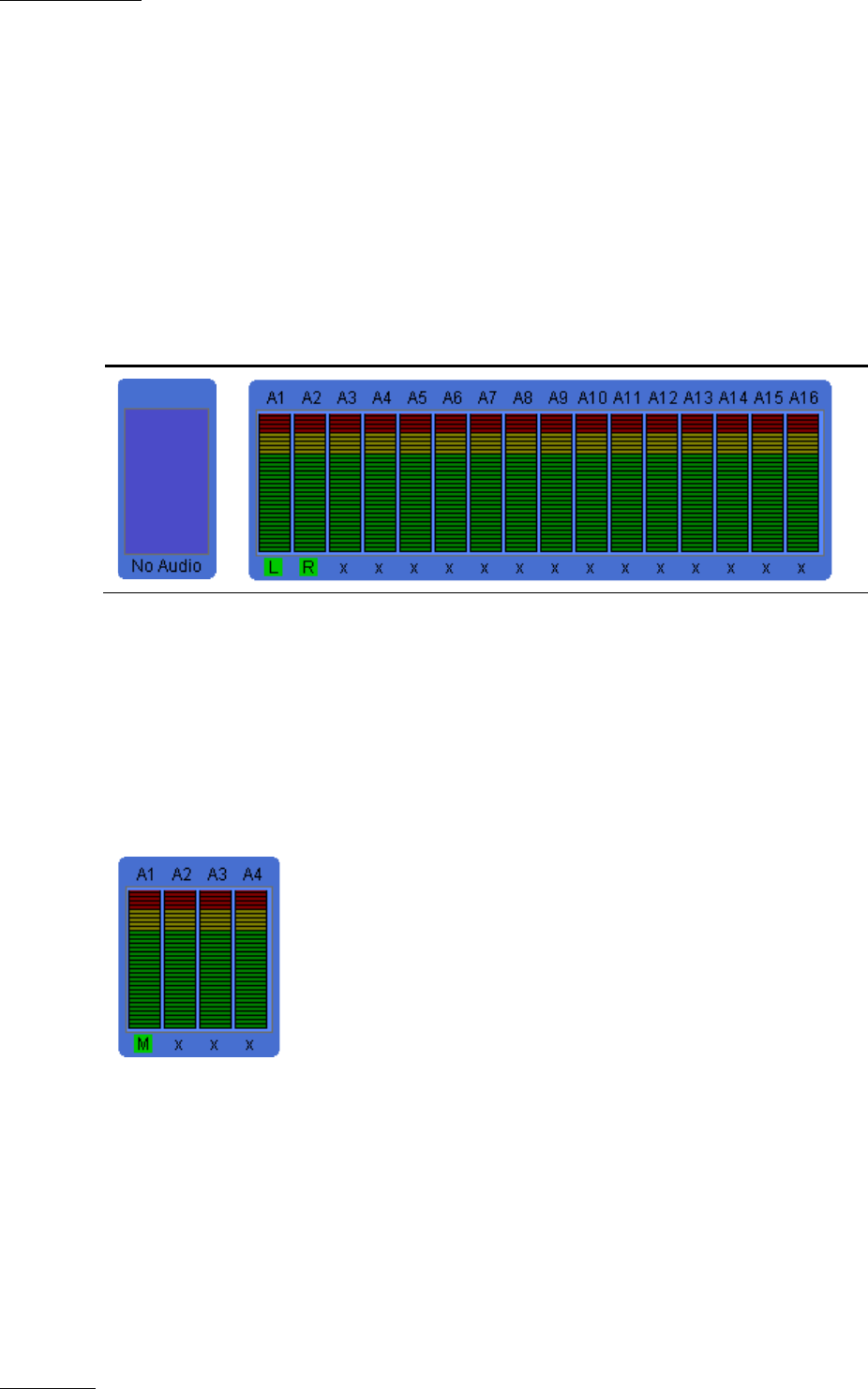

Audio Vumeters
The IN-OUT tab displays as many vumeters as they are audio tracks in the clip: 0, 2, 4, 8
or 16.
Examples
0 audio 16 audios
Audio Track Selection
To select the left channel of an audio track, left-click the corresponding cross under the
vumeter. Then L(eft) is displayed.
To select the right channel of an audio track, right-click the corresponding cross under the
vumeter. Then R(ight) is displayed.
To select both channels of an audio track, click the corresponding cross twice: once a
left-click and once a right-click. Then M(ixt) is displayed:
