Grab Options

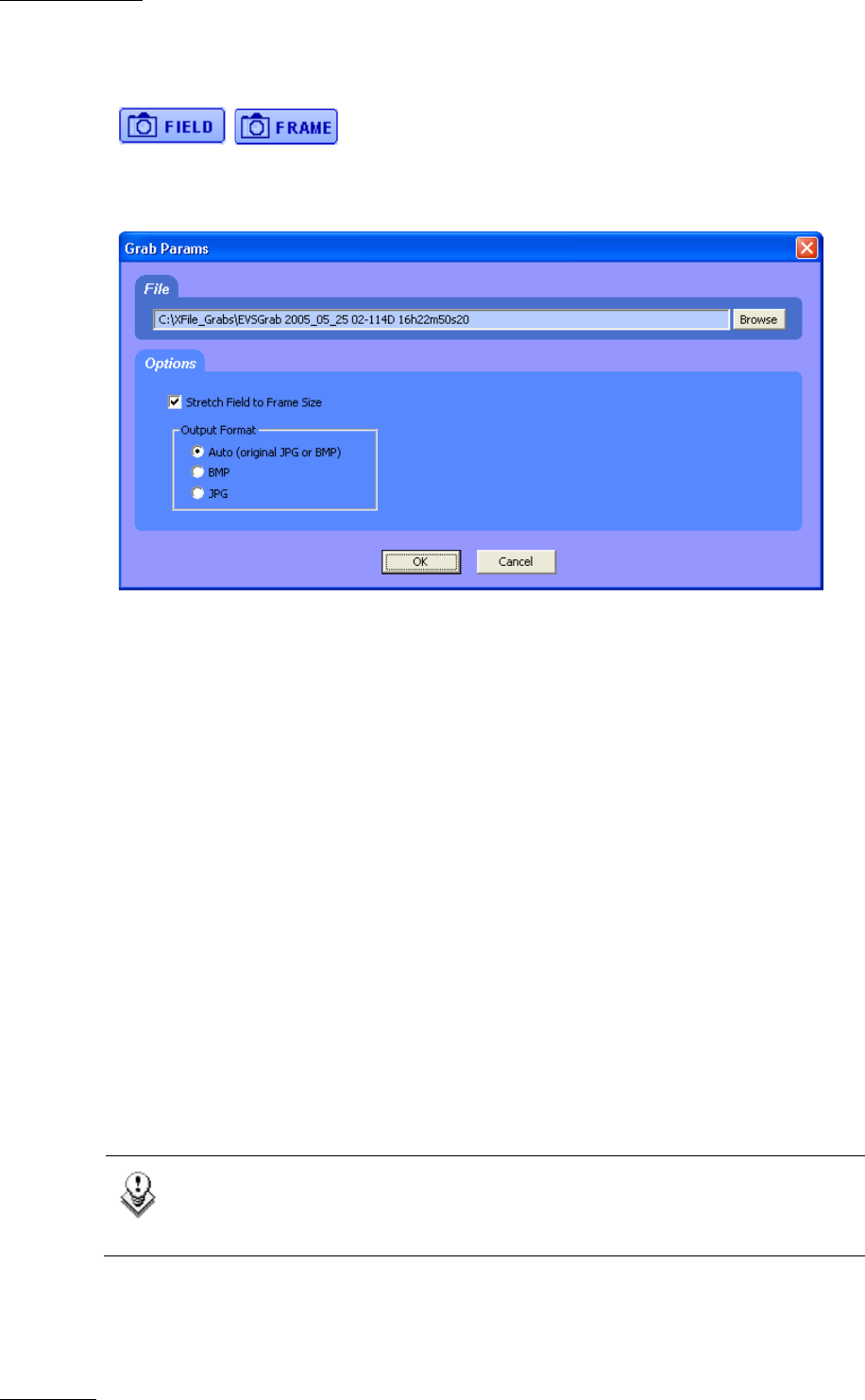

From the IN-OUT tab of the Edit Clip module, the operator can select one image in the
main window (current position of the cursor) and click the Grab Field button or the Grab
Frame button to open the following dialog box:
File Area
Select the filename and the destination folder to save the JPG/BMP files.
Options Area
Stretch field to frame size
This option is only available with the Grab Field function. Should the Grab Frame button
has been clicked, the option is dimmed.
Enabling this option will automatically stretch the ‘field image’ to the original ‘frame size’.
Output format
The automatic selection of the output format depends on the previous option. If the
images are not modified by stretching, the JPG format is defined and if the images are
modified by stretching, the BMP format is selected. The user can force the selection of
one format.
Note
No compression artifact is added to this file creation process, so the original
quality of the image is kept.
