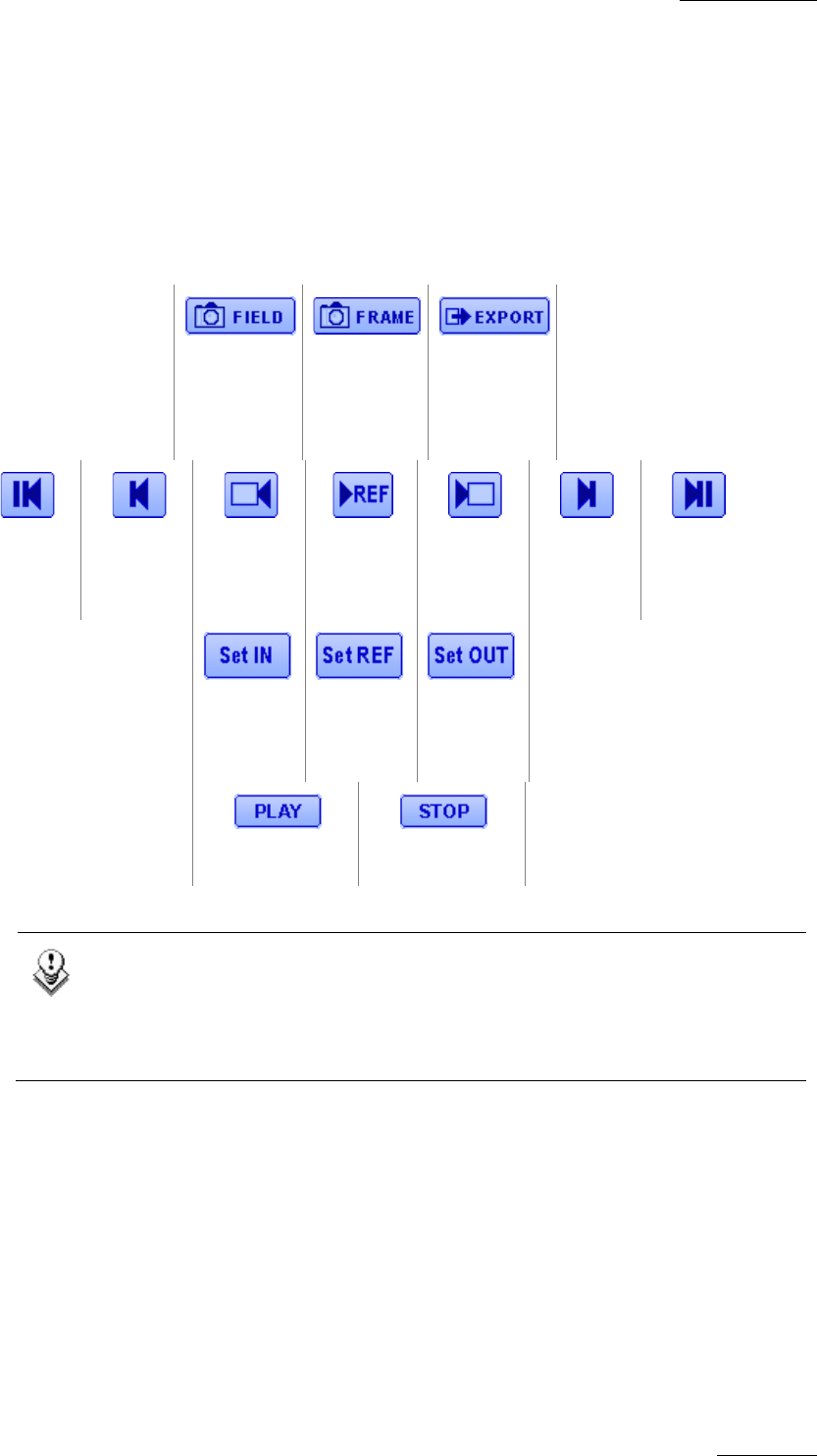

Buttons
The first series of buttons gathers the GRAB & EXPORT functions.
The second series of buttons gathers the SEARCH functions.
The third series of buttons gathers the commands which modify the clip.
The fourth series of buttons gathers the PREVIEW functions.
GRAB field GRAB frame
Partial
export with
new IN/OUT
points
Go to File
IN point
Go to IN
point
Go to
previous
frame
Go to REF
frame
Go to next
frame
Go to OUT
point
Go to File
OUT point
Mark a
new IN
point
Define a
new REF
frame
Mark a
new OUT
point
Start PREVIEW Stop PREVIEW
Note
The ShuttlePRO can be used to perform the commands corresponding to the
buttons of the IN-OUT tab in the Edit Clip window. For more information on the
ShuttlePRO configuration and use with XFile, refer to section 5.2 ‘ShuttlePRO
Use in Edit Clip Module’, on page 165.
