XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
157

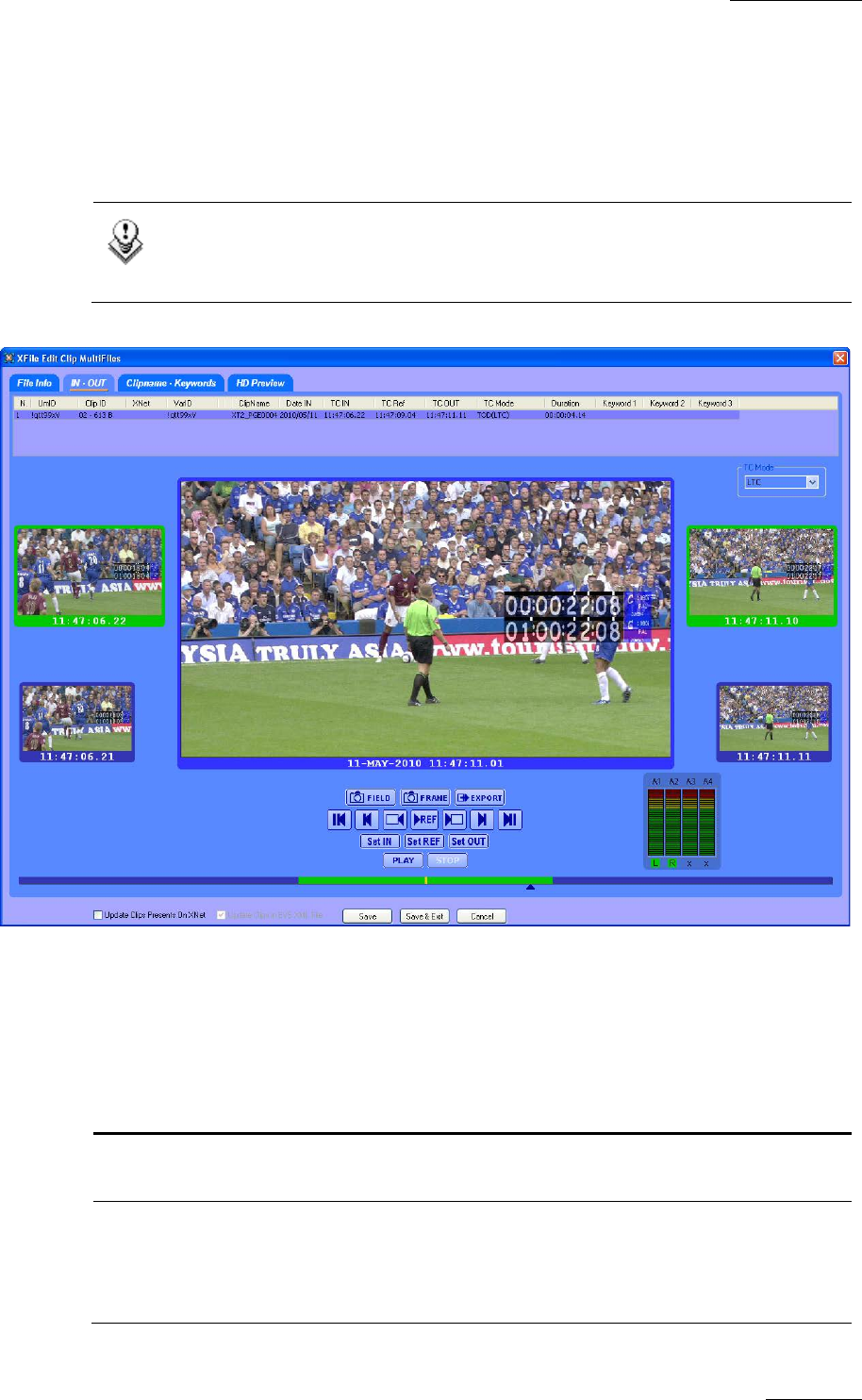

5.1.2 IN – OUT Tab
In the IN-OUT tab, the user can, among others, modify the IN and OUT points, define a
REF frame, modify the aspect ratio, select the audio tracks to monitor etc.
Note
The timecode information displayed in the XFile Edit Clip window is in LTC
even if the clip has been created with VITC as primary timecode.
TC Mode
The TC Mode field allows selecting the time code to be displayed in the Edit Clip window.
The user can choose among the following values:
TC Mode Name Description
Legacy LTC time code without date information, as it was defined before
Multicam V 9.00.
LTC Original LTC
time code with date information, as it is defined from
Multicam V 9.00.
LTC time code defined when the clip was recorded on the EVS
video server.
