XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
149
4.10 Creating Jobs in QuickStart Mode
The QuickStart mode allows launching straight away the backup of one or several record
trains of one or several EVS video servers. The users start the backup jobs in QuickStart
mode from the QuickStart window.
For more information, refer to the following sections:
• section ‘QuickStart Window’, on page 150
• section ‘Setup in QuickStart Mode’, on page 152
• section ‘How to Start a Backup Job in QuickStart Mode’, on page 149.
4.10.1 How to Start a Backup Job in QuickStart
Mode
Note
Before launching a backup job, ensure that the requested output and storage
settings will be applied. For more information, see section ‘Setup in QuickStart
Mode’, on page 152.
To start a backup job in QuickStart mode, proceed as follows:

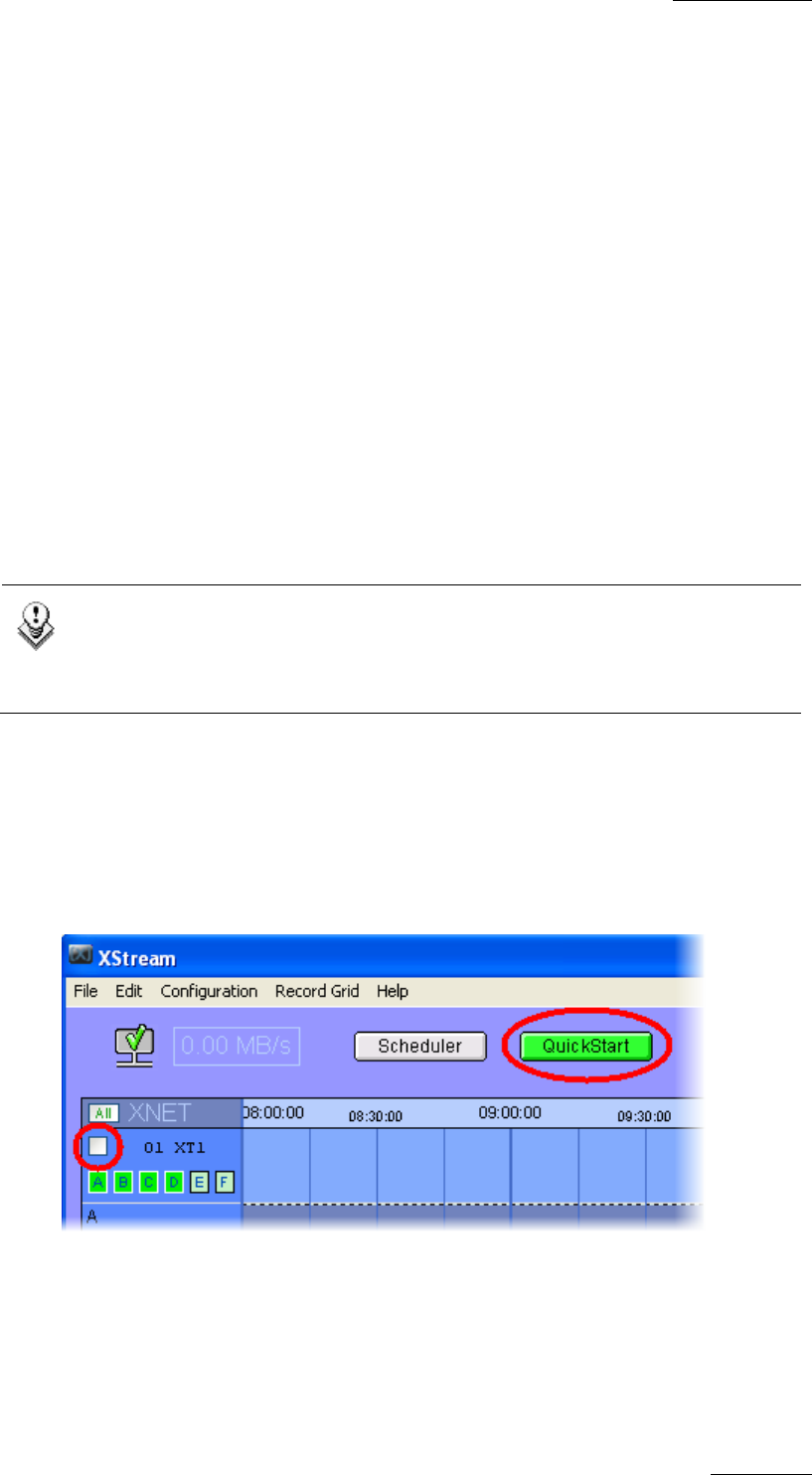

1. In the main XStream window, click the QuickStart button to activate the QuickStart
mode.
2.
The button turns green and a check box appears next to each EVS video server
name of the XNet network:
3.
Select the check box next to the EVS video server of which you want to back
record train(s) up.
The QuickStart dialog box opens.
4.
Select the cameras you want to back up.
