4.8.6 Check Timecode Integrity
Every 5 minutes, the application automatically checks the time code integrity, i.e. it
checks whether time code jumps have occurred in the record trains of EVS video servers.
The user can also perform this check manually on a record train selected in the time grid.
In this case, the check starts from the head of the record train back towards the beginning
of the record train. The integrity analysis lasts no longer than the time defined in the
Default Duration of Analysis setting (see XStream System Configuration window,
Advanced Parameters tab in the section ‘Check Timecode Integrity’, on page 131).

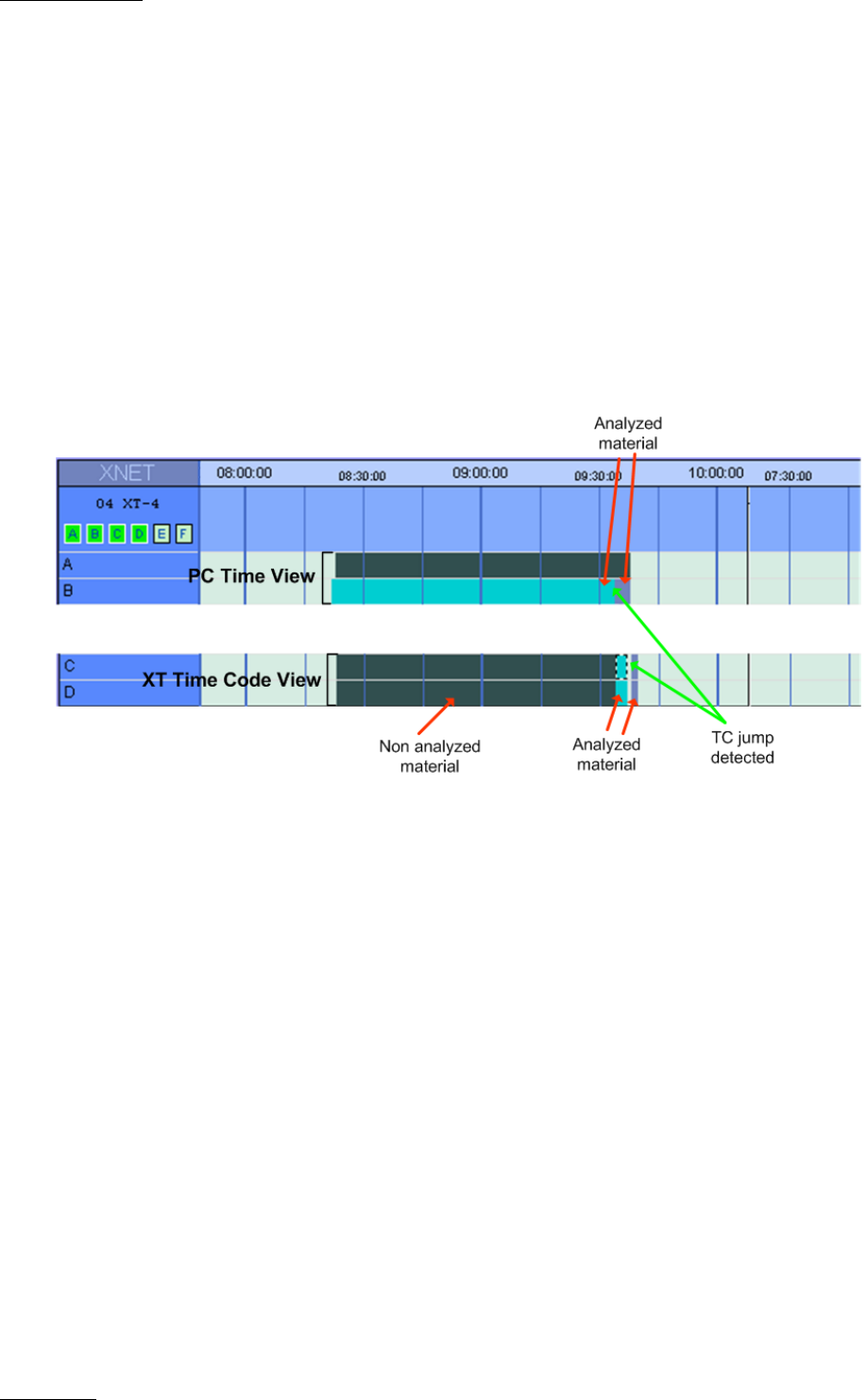

The screenshot below shows how a record train is displayed when a time code integrity
analysis has detected a time code jump in the train. The screenshot shows both views:
PC time view and XT Timecode view.
The color of the record train changes when a time code jump is detected.
The section of the record train in black has not been analyzed since the analysis is
automatically stopped when the default duration specified in the setting ‘Default Duration
of Analysis’ is reached.
