Issue 2.19.A
XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
132

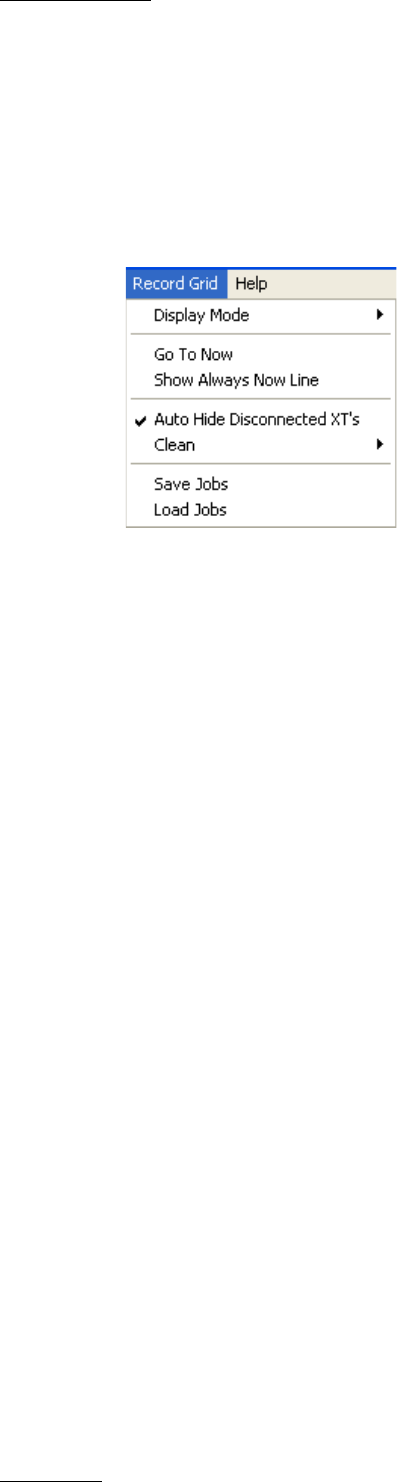

4.7 Record Grid Menu
The Record Grid menu contains several options or commands related to the information
displayed on the record grid, i.e. the nowline, the scheduled jobs, the EVS server display,
the time display, etc.
Display Mode
The display mode specifies which time information is used in the XStream time grid.
The following display modes are available:
• T/C Primary
• LTC
• User T/C
• PC time
• XT time code
For more information on the possible time display modes, refer to section 4.3.2 ‘Time
Display in the Time Grid’, on page 120.
Go To Now
Selecting this option from the Record Grid menu will position the nowline at the beginning
of the time grid display.
Always Show Now Line
Selecting this option from the Record Grid menu will always display the nowline in the
middle of the time grid.
Auto Hide Disconnected XTs
Selecting this option from the Record Grid menu will directly hide the disconnected EVS
video servers.
