XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
121
Note
When time code jumps occur in the recorded train, the time code jumps will be
visible in the EVS server time code display, not in the PC time display.
When backup jobs are scheduled with a start and stop time in EVS server time
code display, they will only be visible in PC time when they start.
Frame Accuracy Depending on the Display Mode
The video is frame accurate in some display modes, but not in all of them. The
application will ensure frame accuracy in the following cases:
• QuickStart mode
• Scheduler mode with EVS server time code display
When using the Scheduler mode in PC time display, the frame accuracy cannot be
granted when a job is defined on more than several cameras at a time.

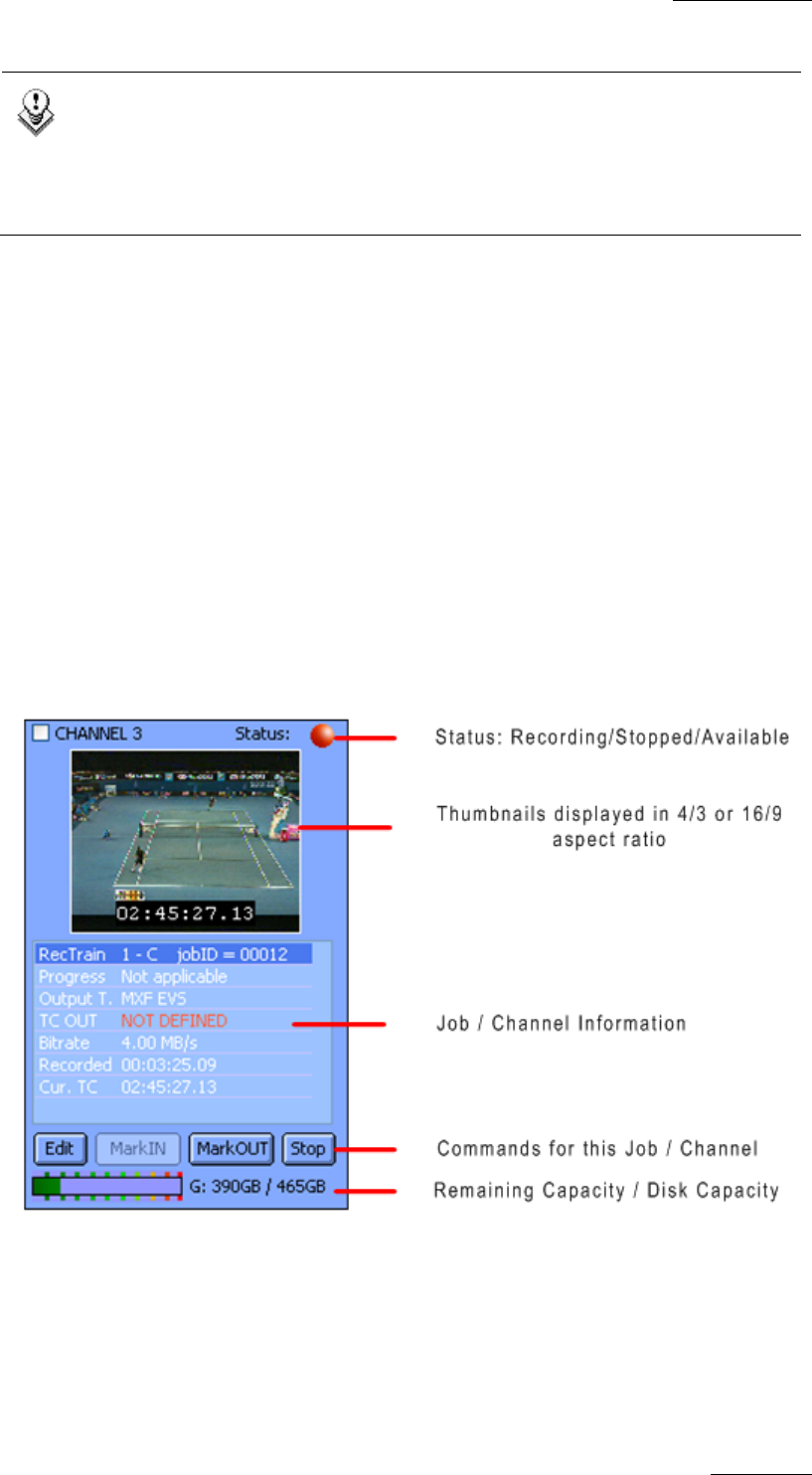

4.4 Channels Area
This area is divided into 6 channel fields which display the same commands/information:
