Issue 2.19.A
XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
110
• Deletes: displays all the delete operations.
• Grabs: displays all the grab operations.
• Others

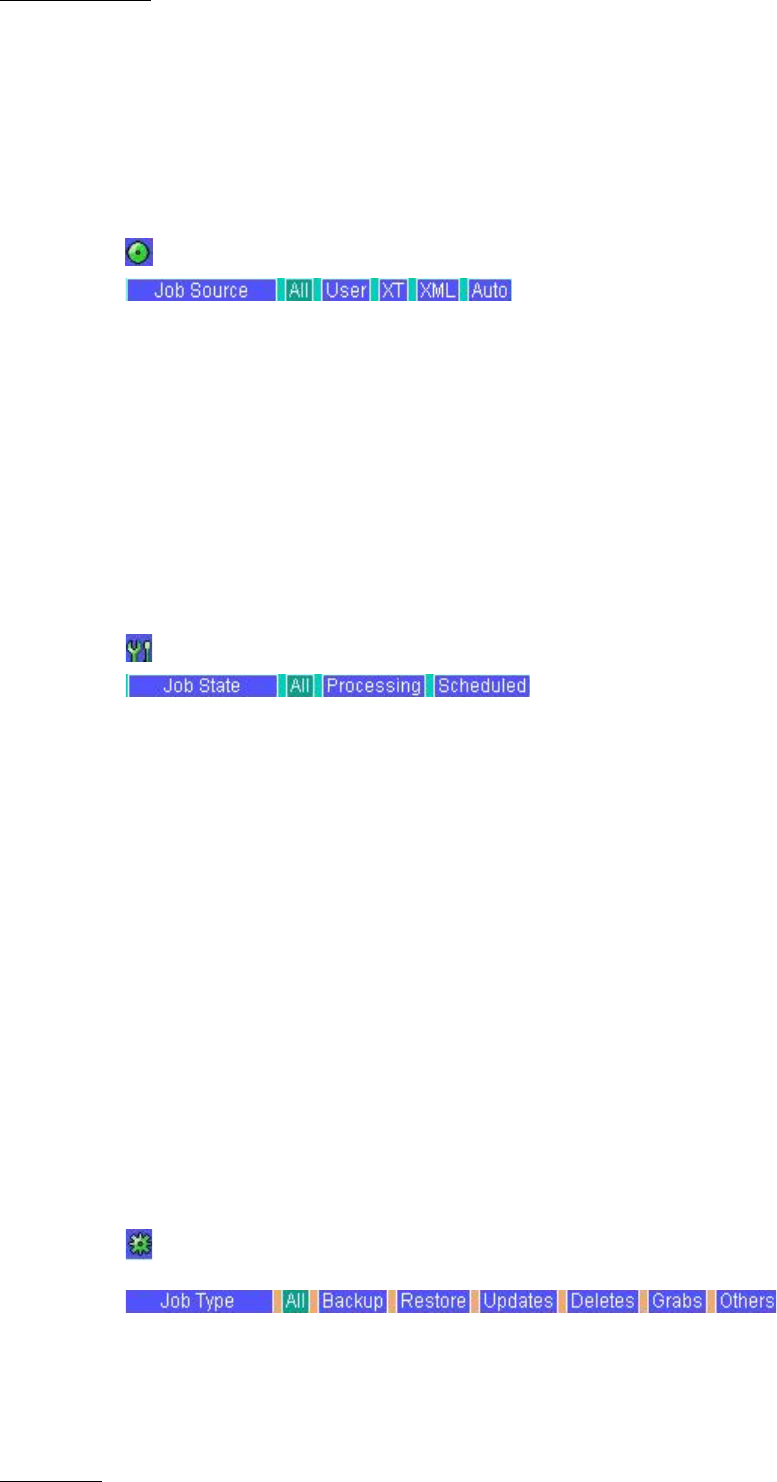

Job Source
Select the source of the jobs you want to be displayed in the list:
• User: displays all the jobs requested by a user.
• XT: displays all the jobs requested by an EVS video server, when auto-archive
parameters have been selected.
• XML: displays the list of jobs requested via XML file by a source application
(IPDirector, Automation system, …).
• Auto: displays the list of jobs requested when Autobackup mode is used.
Job State
Clicking the Processing or Scheduled button displays the list of processing jobs or the
list of scheduled jobs.
Jobs Done Area
This area displays all the jobs done with their status:
• Successful with process duration and transfer rate
• Error with short error message.
Filters
The upper part of the Job Done area displays a list of buttons. These buttons give access
to the different filters to be applied to the area.
Click on the button to display/hide the filter.
Job Type
Select the type of job you want to be displayed in the list:
• Backup: displays all the backup operations performed since the application has been
started.
