XFile Version 2.19 – User Manual
EVS Broadcast Equipment – November 2012
Issue 2.19.A
107
3.13 Job Status
3.13.1 Purpose
The Job Status window gives information on the transfer status of jobs between XFile and
the servers connected to it either in a XNet only or GBE only mode or in a combined
mode GBE +XNet, as configured through the XFile System Config.
This only relates to XFile jobs, not to XStream jobs.

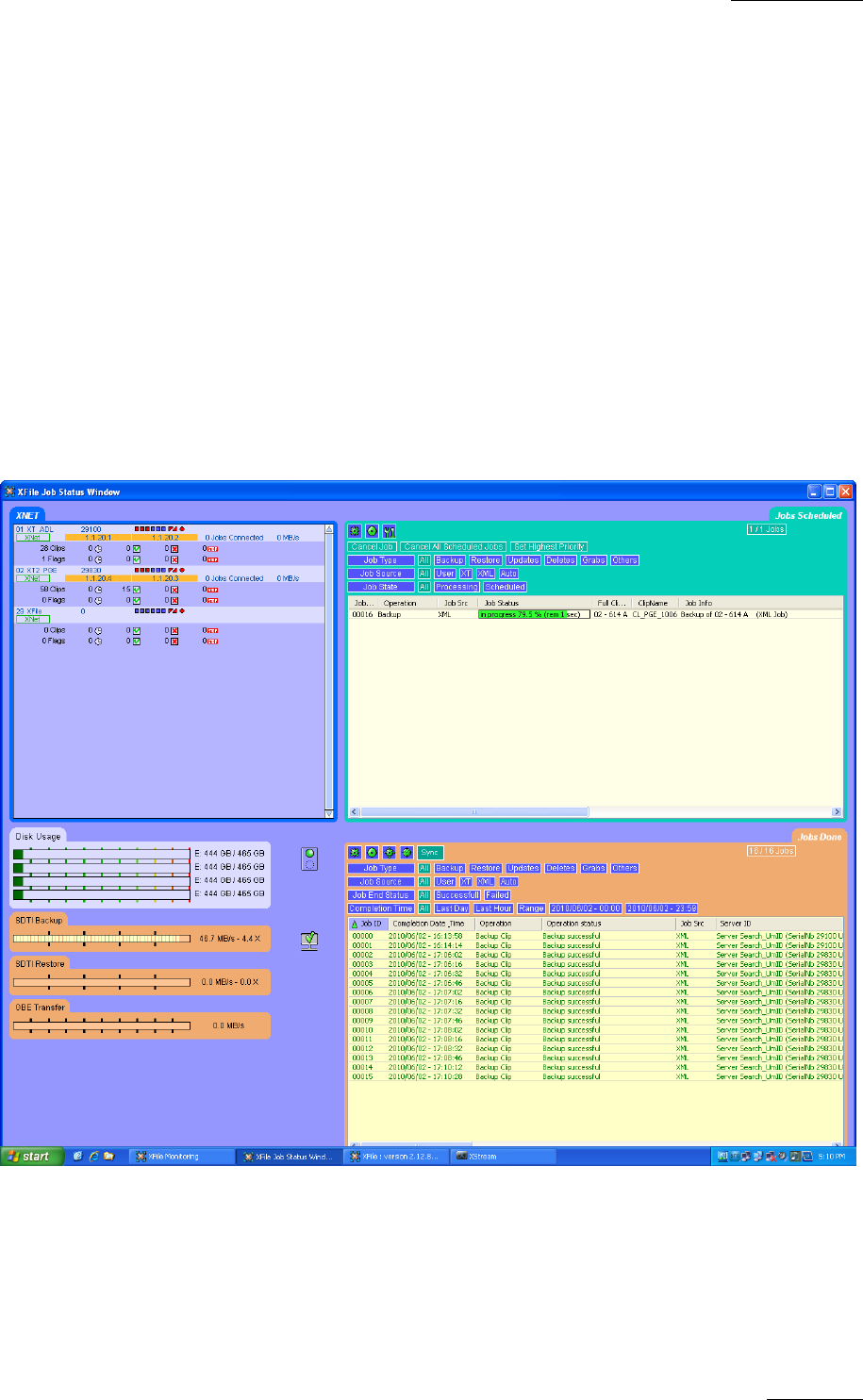

3.13.2 XFile Job Status Window
The Job Status window is divided into four main areas.
